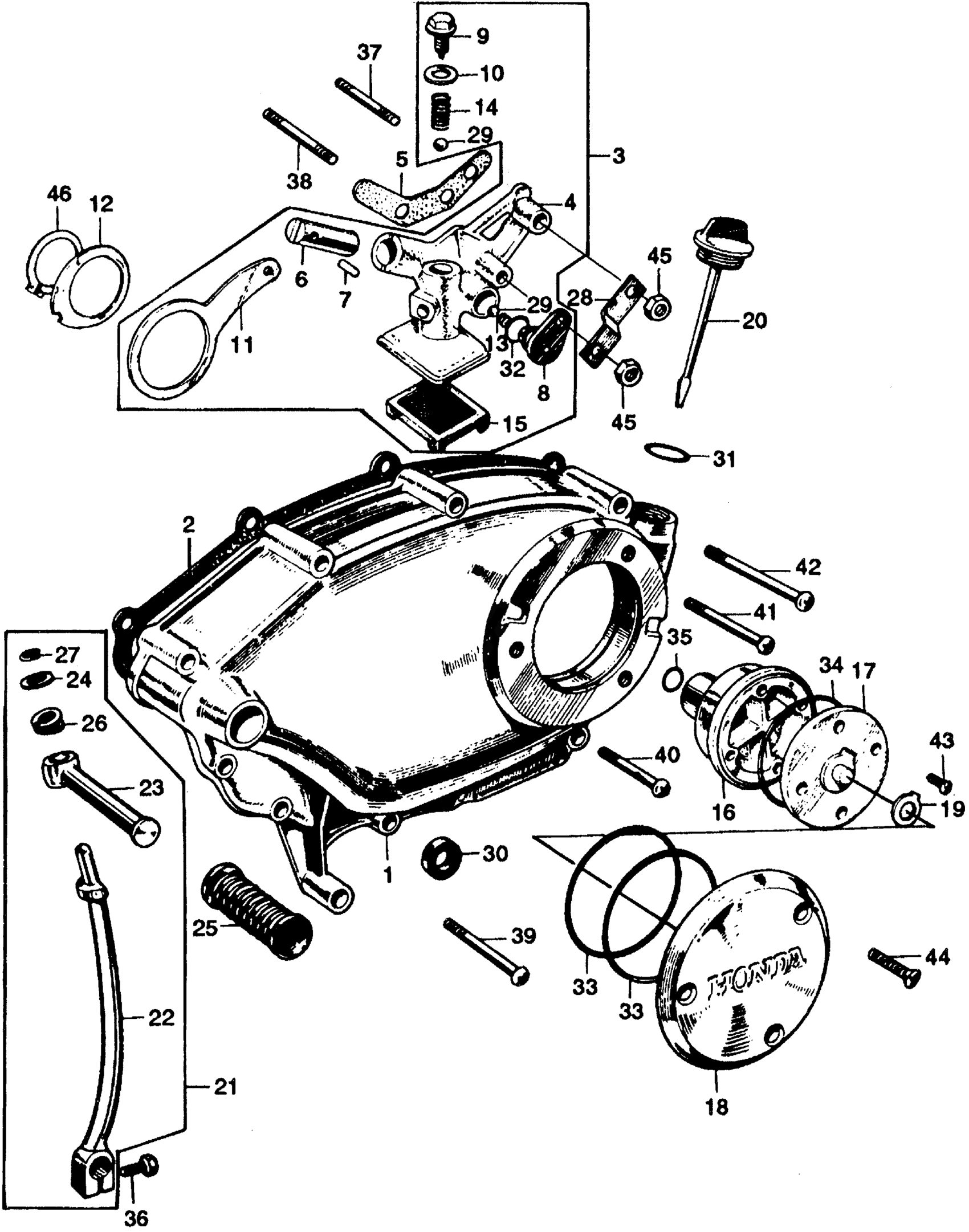

Honda SS125AA MOTORCYCLE, JPN, VIN# SS125A-100001 RIGHT CRANKCASE COVER + OILPUMP Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-230-345

Unavailable

2

GASKET, R. CRANKCASE COVER (NOT AVAILABLE)

11394-230-315

Unavailable

3

PUMP ASSY., OIL

15200-246-000

Unavailable

4

BODY, OIL PUMP (NOT AVAILABLE)

15210-246-000

Unavailable

5

GASKET PUMP, BODY (NOT AVAILABLE)

15219-200-000

Unavailable

6

PLUNGER, PUMP (NOT AVAILABLE)

15231-205-000

Unavailable

7

PIN, PUMP PLUNGER (NOT AVAILABLE)

15235-205-000

Unavailable

8

GUIDE, OUTLET VALVE (NOT AVAILABLE)

15260-200-000

Unavailable

9

BOLT, SUCTION VALVE (NOT AVAILABLE)

15265-200-010

Unavailable

10

GASKET, SUCTION VALVE BOLT (NOT AVAILABLE)

15266-200-000

Unavailable

11

ROD, PUMP

15281-205-000

Unavailable

12

WASHER, PUMP ROD SIDE (NOT AVAILABLE)

15292-200-000

Unavailable

13

SPRING, CHECK VALVE

15345-230-000

Unavailable

14

SPRING, SUCTION VALVE

15346-230-000

Unavailable

15

SCREEN, PUMP FILTER (NOT AVAILABLE)

15421-202-000

Unavailable

16

ROTOR, OIL FILTER (NOT AVAILABLE) | Use from Engine SN 111390

15440-246-000

Unavailable

17

CAP, OIL FILTER

15451-200-020

Unavailable

18

COVER, OIL FILTER (NOT AVAILABLE)

15481-200-030

Unavailable

19

WASHER, OIL FILTER ROTOR (NOT AVAILABLE)

15493-202-000

Unavailable

20

DIPSTICK, OIL (NOT AVAILABLE)

15650-230-000

Unavailable

21

KICK STARTER ASSY. (NOT AVAILABLE)

28300-240-000

Unavailable

22

ARM, KICK STARTER (NOT AVAILABLE)

28301-240-000

Unavailable

23

PEDAL, KICK STARTER This part replaces 28302-001-000.

28302-126-770

Unavailable

23

PEDAL, KICK STARTER

28302-126-770

Unavailable

24

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

25

RUBBER A, KICK STARTER

95011-51000

$3.69

26

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

27

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

28

WASHER, PUMP LOCKING

90404-202-000

Unavailable

29

BALL, STEEL (#10) (5/16)

96211-10000

$1.49

30

BALL, STEEL (#10) (5/16) This part replaces 90901-230-000.

96211-10000

$1.49

30

OIL SEAL (14X28X8) This part replaces 91203-200-000.

91203-200-005

Unavailable

30

BALL, STEEL (#10) (5/16)

96211-10000

$1.49

31

O-RING (27.5X2.6) This part replaces 91302-001-000.

91302-001-710

$2.99

31

O-RING (27.5X2.6)

91302-001-710

$2.99

32

O-RING (10.9X2) (NOT AVAILABLE)

91304-200-000

Unavailable

33

O-RING (64X2) This part replaces 91305-200-020.

91307-639-000

Unavailable

33

O-RING (64X2)

91307-639-000

Unavailable

34

O-RING (54.5X1.5) (NOT AVAILABLE)

91306-200-010

Unavailable

35

O-RING (13.3X1.7) (NOT AVAILABLE)

91307-200-010

Unavailable

36

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

36

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

37

BOLT, STUD (6X42) (SOURCE: VINTAGE PARTS INC.)

92700-06042-05

Unavailable

38

BOLT, STUD (6X35) This part replaces 92700-06046-05.

92900-06035-0E

$1.62

38

BOLT 2, STUD (6X35)

92900-06035-0E

$1.62

39

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

39

SCREW, PAN (6X40)

93500-06040-0A

$1.49

40

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

40

SCREW, PAN (6X50)

93500-06050-0A

$1.49

41

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

41

SCREW, PAN (6X60)

93500-06060-0A

$1.49

42

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

42

SCREW, PAN (6X65)

93500-06065-0A

$1.53

43

SCREW, FLAT (4X16) This part replaces 93600-04016.

93600-04016-0G

$0.70

43

SCREW, FLAT (4X16)

93600-04016-0A

Unavailable

44

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

44

SCREW, OVAL (6X18) (NOT AVAILABLE)

93700-06018-02

Unavailable

44

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

44

NUT, HEX. (6MM)

94001-06200-0S

$1.49

44

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

45

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

45

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

45

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

45

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

45

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

45

NUT, HEX. (6MM)

94001-06200-0S

$1.49

45

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

46

CIRCLIP (OUTER) (26MM) (NOT AVAILABLE)

94510-26000

Unavailable
