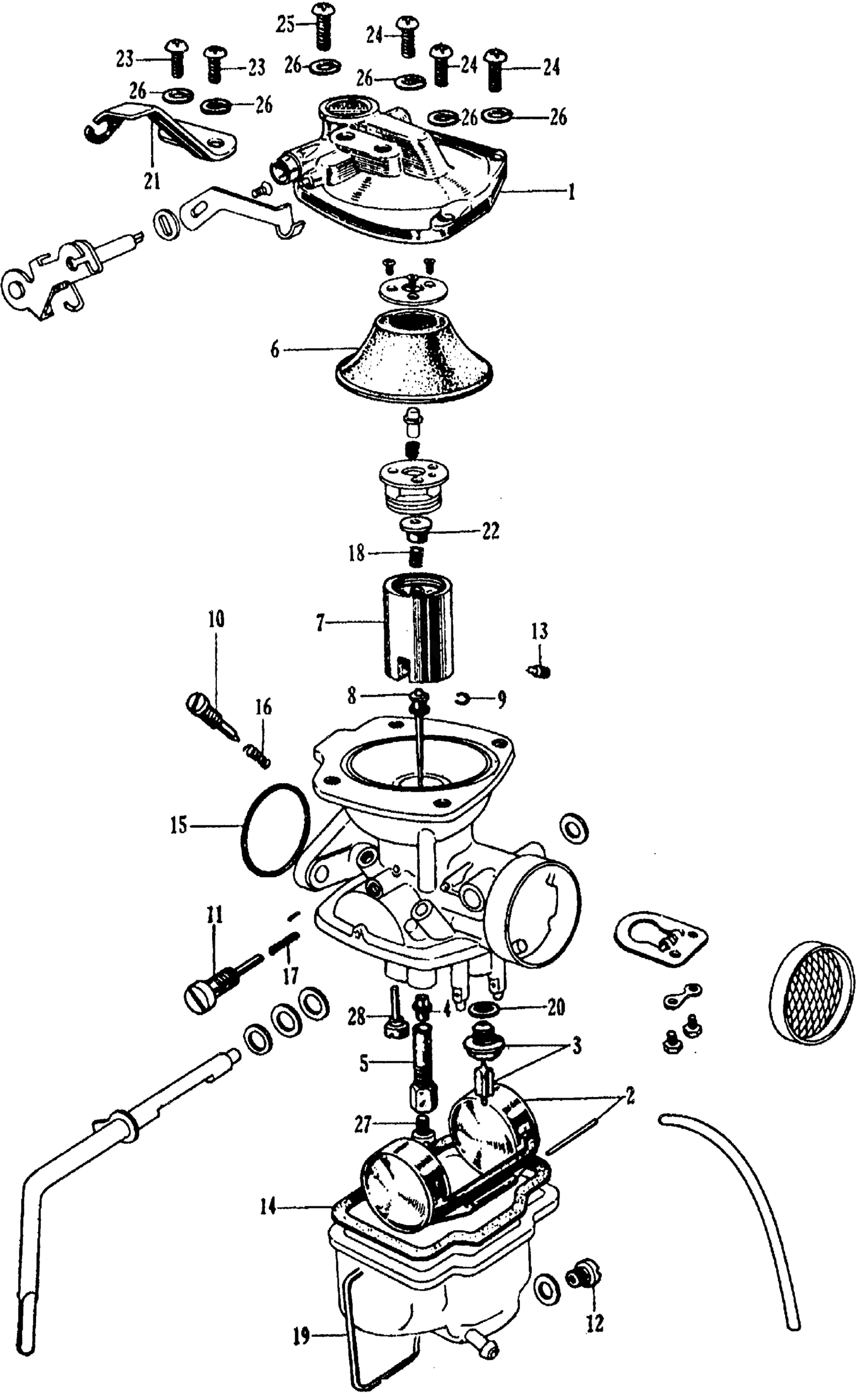

Honda SS125AA MOTORCYCLE, JPN, VIN# SS125A-100001 CARBURETOR Diagram

#

Description
Price

1

TOP (NOT AVAILABLE)

16119-230-004

Unavailable

2

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

2

FLOAT SET

16013-116-700

$28.61

2

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

2

FLOAT SET This part replaces 16122-201-004.

16013-116-700

$28.61

2

FLOAT SET This part replaces 16122-202-004.

16013-116-700

$28.61

3

VALVE SET, FLOAT (NOT AVAILABLE)

16124-230-004

Unavailable

4

NEEDLE, JET (NOT AVAILABLE)

16133-230-004

Unavailable

5

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-230-004

Unavailable

5

HOLDER, NEEDLE (NOT AVAILABLE)

16139-230-014

Unavailable

6

DIAPHRAGM

16140-224-004

Unavailable

7

VALVE, THROTTLE (NOT AVAILABLE) | Use from Engine SN 111391

16141-230-014

Unavailable

7

VALVE, THROTTLE (NOT AVAILABLE)

16141-230-004

Unavailable

8

NEEDLE, JET (NOT AVAILABLE)

16151-230-004

Unavailable

9

CLIP, BAR

16157-259-004

$5.36

10

SCREW, AIR (NOT AVAILABLE)

16162-201-004

Unavailable

11

SCREW, THROTTLE STOP (NOT AVAILABLE) This part replaces 16163-011-004.

16163-217-004

Unavailable

11

SCREW, THROTTLE STOP

16163-217-004

Unavailable

12

SCREW, DRAIN (NOT AVAILABLE)

16164-202-004

Unavailable

12

SCREW, DRAIN (NOT AVAILABLE) This part replaces 16164-225-004.

16164-202-004

Unavailable

13

SCREW, NEEDLE SET (NOT AVAILABLE) | Use from Engine SN 111391

16165-230-004

Unavailable

13

SCREW, NEEDLE SET (NOT AVAILABLE)

16165-224-004

Unavailable

14

WASHER, FLOAT CHAMBER

16172-030-004

Unavailable

15

O-RING (32MM) (NOT AVAILABLE)

16175-230-004

Unavailable

16

SPRING, AIR SCREW (NOT AVAILABLE)

16181-202-004

$3.70

17

SPRING, THROTTLE STOP (NOT AVAILABLE)

16182-011-004

Unavailable

18

SPRING, CHANGE VALVE (NOT AVAILABLE)

16186-224-004

Unavailable

19

CLIP, FLOAT CHAMBER SET (NOT AVAILABLE)

16187-216-004

Unavailable

20

WASHER, FIBER (7MM) (NOT AVAILABLE)

16189-040-004

Unavailable

21

PLATE, STAY (NOT AVAILABLE)

16193-230-004

Unavailable

22

VALVE, CHANGE (NOT AVAILABLE)

16195-224-004

Unavailable

23

SCREW, PAN (5X10) This part replaces 93500-05010.

93500-05010-0A

$1.49

23

SCREW, PAN (5X10)

93500-05010-0A

$1.49

23

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

23

SCREW, PAN (5X10) This part replaces 93510-05010.

93500-05010-0A

$1.49

23

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

24

SCREW, PAN (5X14) This part replaces 93500-05014.

93500-05014-0A

$1.49

24

SCREW, PAN (5X14)

93500-05014-0A

$1.49

24

SCREW, PAN (5X14) This part replaces 93514-05014.

93500-05014-0A

$1.49

24

SCREW, PAN (5X14) This part replaces 93514-05014-0A.

93500-05014-0A

$1.49

25

SCREW, PAN (5X20)

93500-05020-0A

$1.49

25

SCREW, PAN (5X20) This part replaces 93520-05020.

93500-05020-0A

$1.49

25

SCREW, PAN (5X20) This part replaces 93520-05020-0A.

93500-05020-0A

$1.49

26

WASHER, SPRING (5MM)

94111-05000

$1.49

27

JET, MAIN (#90) (NOT AVAILABLE) | Use from Engine SN 111391

99114-246-0900

Unavailable

27

JET, MAIN (#92) | Use from Engine SN 111391

99114-246-0920

Unavailable

27

JET, MAIN (#95) | Use from Engine SN 111391

99114-246-0950

$8.10

27

JET, MAIN (#98) | Use from Engine SN 111391

99114-246-0980

Unavailable

27

JET, MAIN (#100) | Use from Engine SN 111391

99114-246-1000

Unavailable

27

JET, MAIN (#90) (NOT AVAILABLE)

99101-09004

Unavailable

27

JET, MAIN (#92) (NOT AVAILABLE)

99101-09204

Unavailable

27

JET, MAIN (#95) (NOT AVAILABLE)

99101-09504

Unavailable

27

JET, MAIN (#98) (NOT AVAILABLE)

99101-09804

Unavailable

27

JET, MAIN (#100) (NOT AVAILABLE)

99101-10004

Unavailable

27

JET, MAIN (#105)

99101-10504

Unavailable

27

JET, MAIN (#110)

99101-11004

Unavailable

28

JET, SLOW (#38) (NOT AVAILABLE)

99124-516-0380

Unavailable

28

JET, SLOW (#35) (NOT AVAILABLE)

99146-03504

Unavailable

28

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99146-03804.

99124-516-0380

Unavailable

28

JET, SLOW (#40) (NOT AVAILABLE)

99146-04004

Unavailable

28

JET, SLOW (#42) (NOT AVAILABLE)

99146-04204

Unavailable

28

JET, SLOW (#38) (NOT AVAILABLE)

99146-04504

Unavailable
