Description

Price

150

BOLT-WS,6X14

150R0614

$5.96

223

SCREW-PAN-WS-CROS,6X14

223R0614

$3.34

11009

GASKET,TANK CAP

11009-3020

$13.51

11009A

GASKET

11009-3790

Unavailable

11047

BRACKET,FUEL FILTER

11047-3761

Unavailable

13091

HOLDER,TUBE

13091-3758

$11.19

13091A

HOLDER,BAND

13091-3764

$5.17

13091B

HOLDER,FILTER

13091-3795

$9.80

27012

HOOK

27012-3751

$6.01

27012A

HOOK,FIRE EXTINGUISHER

27012-3772

$20.79

49019

FILTER-FUEL

49019-3708

$59.17

49019A

FILTER-FUEL

49019-3710

$79.30

49019B

FILTER-FUEL

49019-3712

$45.64

49057

VALVE-RELIEF

49057-3001

$64.85

51004

TANK-FUEL

51004-3717

Unavailable

51023

TAP-ASSY,FUEL

51023-3718

$137.47

51049

CAP-TANK,FUEL

51049-3719

$28.71

59231

FILLER,FUEL TANK

59231-3001

$17.77

92009

SCREW,4X8

92009-3729

$6.61

92009A

SCREW,5X16

92009-3789

$2.97

92011

SCREW

92011-562

$1.65

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92022A

WASHER

92022-563

$1.13

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP

92037-3009

$3.70

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92059

TUBE,5.8X12.2X55

92059-3026

Unavailable

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,TANK&FIRE EXTINGUISHER

92072-3764

$58.86

92072B

BAND,L=201

92072-3778

$1.84

92077

KNOB

92077-3717

$27.14

92143

COLLAR,7X20X5

92143-3740

Unavailable

92190

TUBE,45X53X115

92190-3856

$14.07

92190A

TUBE,"RES",5.8X10.8X420

92190-3889

$22.46

92190B

TUBE,"ON",5.8X10.8X420

92190-3890

$22.46

92190C

TUBE,5.8X10.8X700

92190-3892

Unavailable

92190D

TUBE,5.8X10.8X540

92190-3893

Unavailable

92190E

TUBE,"RETURN",CARB-TANK

92190-3903

$11.82

92191

TUBE,TAP-FILTER

92191-3727

Unavailable

92191A

TUBE,FILTER-CARB

92191-3728

Unavailable

223A

SCREW-PAN-WS-CROS,6X20

223R0620

$3.35

225

SCREW-PAN-WSP-CROS,5X16

225R0516

$4.99

671

O RING,65MM

671B2565

$8.86

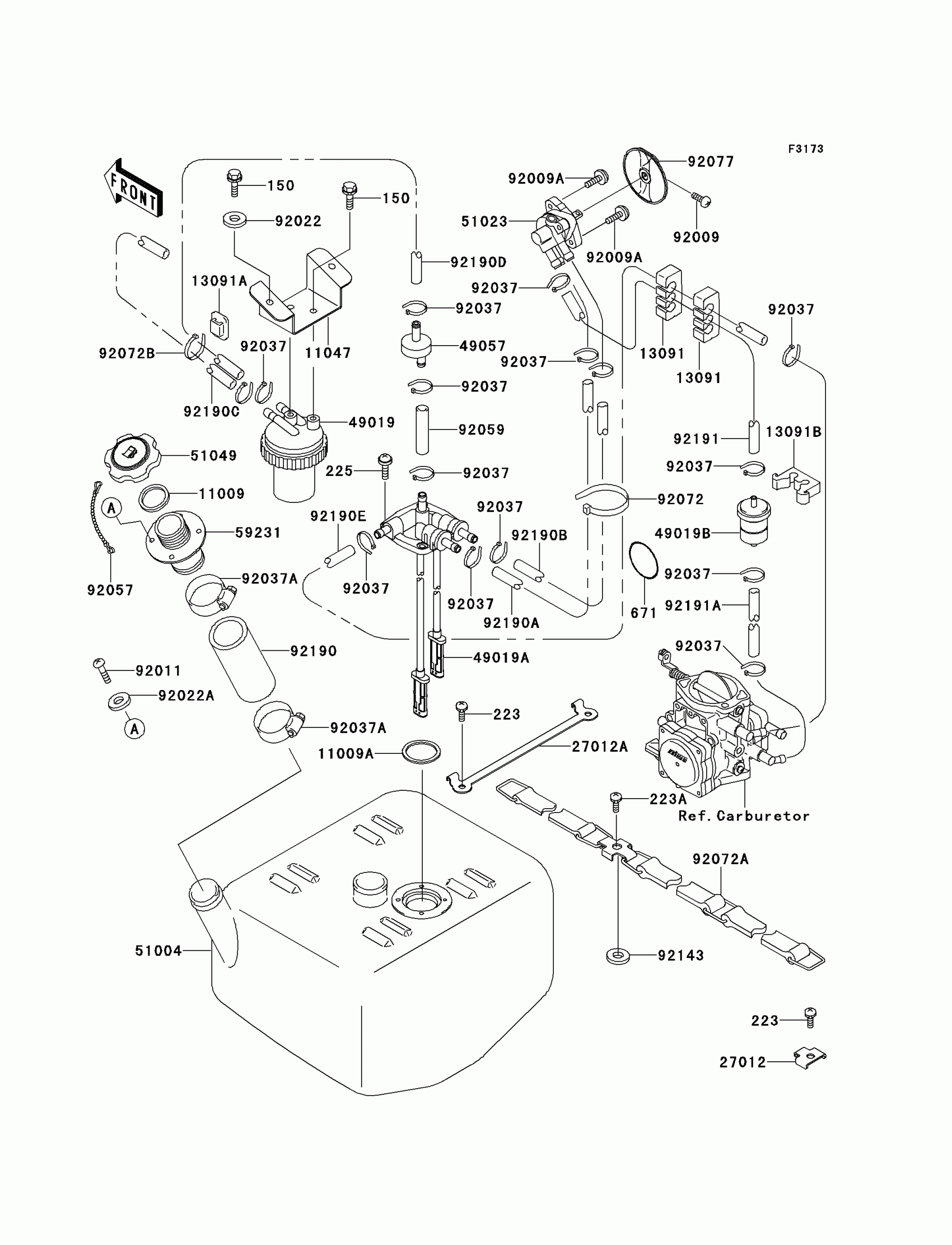

Kawasaki SS Fuel Tank Diagram

BOLT-WS,6X14

SCREW-PAN-WS-CROS,6X14

GASKET,TANK CAP

GASKET

BRACKET,FUEL FILTER

HOLDER,TUBE

HOLDER,BAND

HOLDER,FILTER

HOOK

HOOK,FIRE EXTINGUISHER

FILTER-FUEL

FILTER-FUEL

FILTER-FUEL

VALVE-RELIEF

TANK-FUEL

TAP-ASSY,FUEL

CAP-TANK,FUEL

FILLER,FUEL TANK

SCREW,4X8

SCREW,5X16

SCREW

WASHER,6.5X20X1.5

WASHER

CLAMP

CLAMP

CHAIN,COVER,L=100

TUBE,5.8X12.2X55

BAND,L=149

BAND,TANK&FIRE EXTINGUISHER

BAND,L=201

KNOB

COLLAR,7X20X5

TUBE,45X53X115

TUBE,"RES",5.8X10.8X420

TUBE,"ON",5.8X10.8X420

TUBE,5.8X10.8X700

TUBE,5.8X10.8X540

TUBE,"RETURN",CARB-TANK

TUBE,TAP-FILTER

TUBE,FILTER-CARB

SCREW-PAN-WS-CROS,6X20

SCREW-PAN-WSP-CROS,5X16

O RING,65MM
