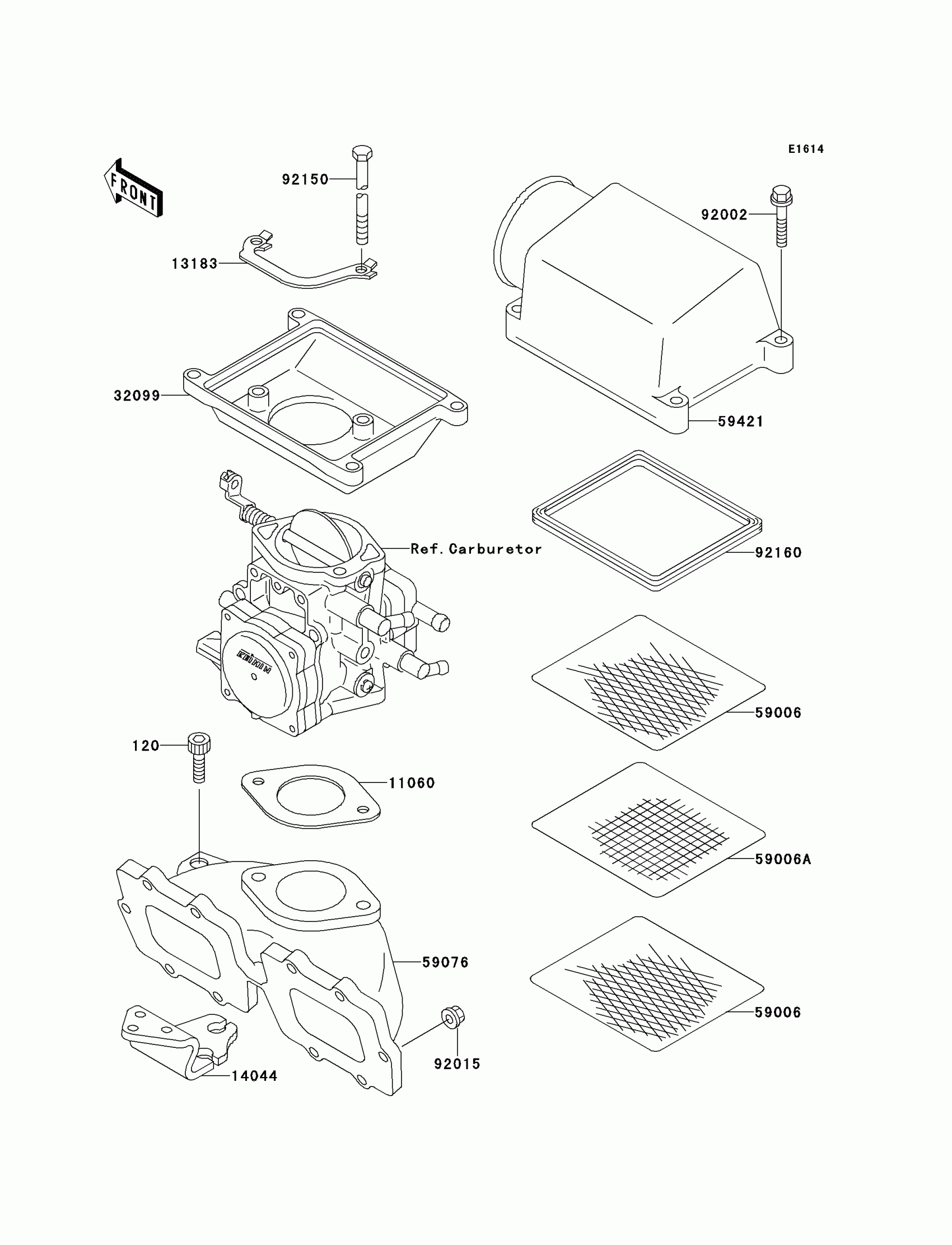

Kawasaki SS Flame Arrester Diagram

Description

Price

120

BOLT-SOCKET,6X30

120R0630

$4.39

11060

GASKET,CARBURETOR

11060-3716

$12.04

13183

PLATE

13183-3726

$6.34

14044

HOLDER-CABLE

14044-3727

Unavailable

32099

CASE,FLAME ARRESTER

32099-3748

Unavailable

59006

ARRESTER-FLAME

59006-3707

$30.40

59006A

ARRESTER-FLAME

59006-3708

$15.04

59076

MANIFOLD-INTAKE

59076-3723

Unavailable

59421

COVER-INTAKE

59421-3726

Unavailable

92002

BOLT,6X30

92002-3726

$4.69

92015

NUT,6MM

92015-3767

$4.69

92150

BOLT,6X125

92150-3784

Unavailable

92160

DAMPER

92160-3704

$18.76
