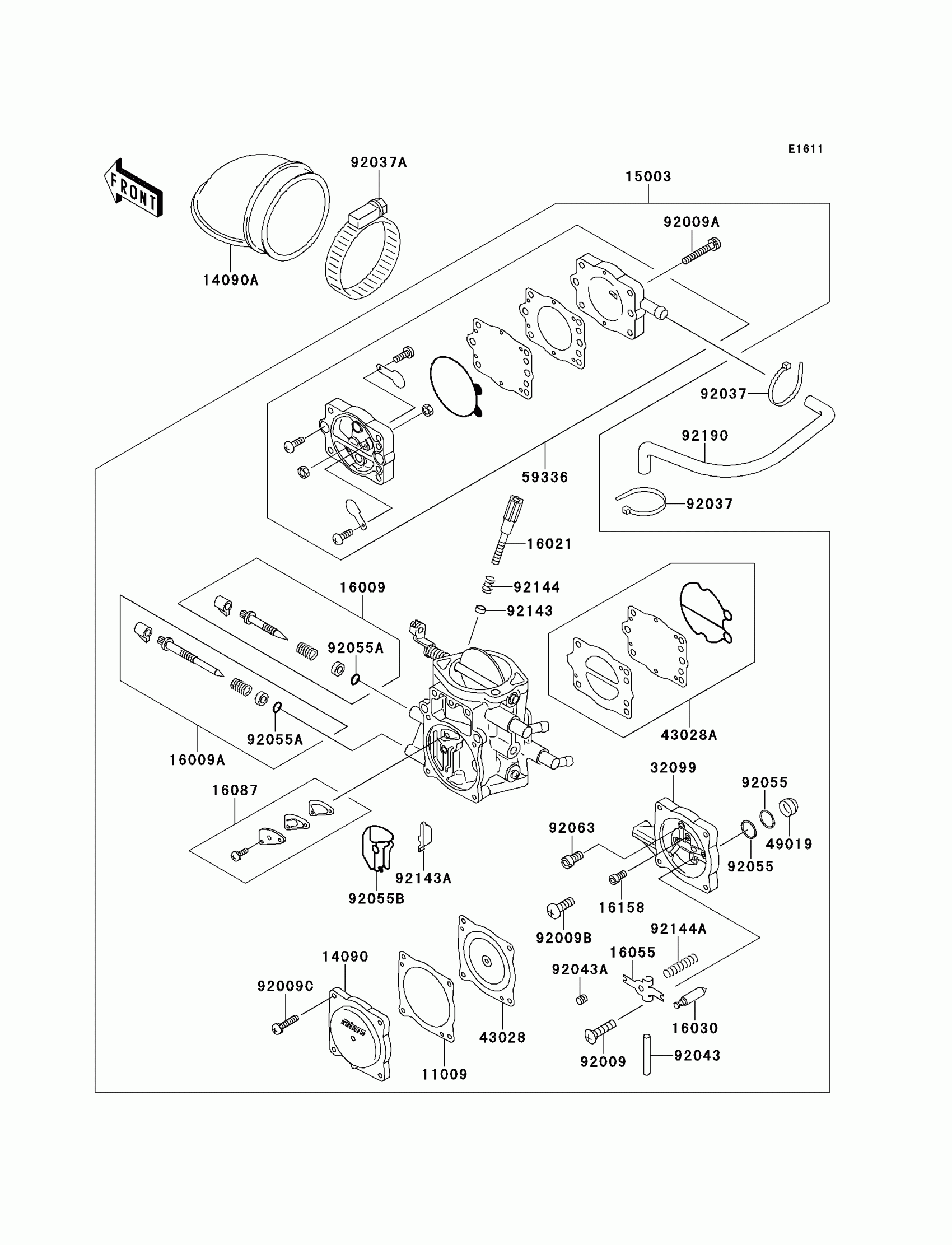

Kawasaki SS Carburetor Diagram

#

Description
Price

11009

GASKET,DIAPHRAGM

11009-3730

$15.34

14090

COVER,DIAPHRAGM

14090-3702

Unavailable

14090A

COVER

14090-3745

Unavailable

15003

CARBURETOR-ASSY

15003-3711

$564.83

16009

NEEDLE-JET,MAIN

16009-3711

$58.47

16009A

NEEDLE-JET,SLOW

16009-3715

Unavailable

16021

SCREW-THROTTLE STOP

16021-3702

$47.91

16030

VALVE-FLOAT

16030-3701

$50.52

16055

ARM-FLOAT

16055-3701

$47.66

16087

VALVE-CHECK

16087-3703

$29.75

16158

JET-SLOW,#78

16158-3712

Unavailable

32099

CASE,CARBURETOR

32099-3781

$104.94

43028

DIAPHRAGM,CARBURETOR

43028-3704

$95.55

43028A

DIAPHRAGM,PUMP

43028-3706

$144.13

49019

FILTER-FUEL,STRAINER

49019-3707

$8.15

59336

CASE-PUMP

59336-3710

$193.59

92009

SCREW,3X8

92009-3712

$2.38

92009A

SCREW,5X28

92009-3783

$13.33

92009B

SCREW,4X8

92009-3804

$5.23

92009C

SCREW,4X18

92009-3808

$8.56

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP

92037-3711

$6.72

92043

PIN,FLOAT

92043-1209

$6.16

92043A

PIN,THROTTLE STOP SCREW

92043-3712

$4.85

92055

RING-O

92055-1246

$4.50

92055A

RING-O,ADJUST SCREW

92055-3713

$5.23

92055B

RING-O

92055-3735

$10.56

92063

JET-MAIN,#160

92063-3711

Unavailable

92143

COLLAR,THROTTLE STOP SCREW

92143-3709

$14.05

92143A

COLLAR

92143-3727

$34.31

92144

SPRING,THROTTLE STOP SCREW

92144-3706

$7.51

92144A

SPRING,FLOAT ARM

92144-3744

$8.88

92190

TUBE,PULSE

92190-3730

Unavailable
