- SRX700SF (SRX700) 8DW4 2001
TRACK DRIVE 2

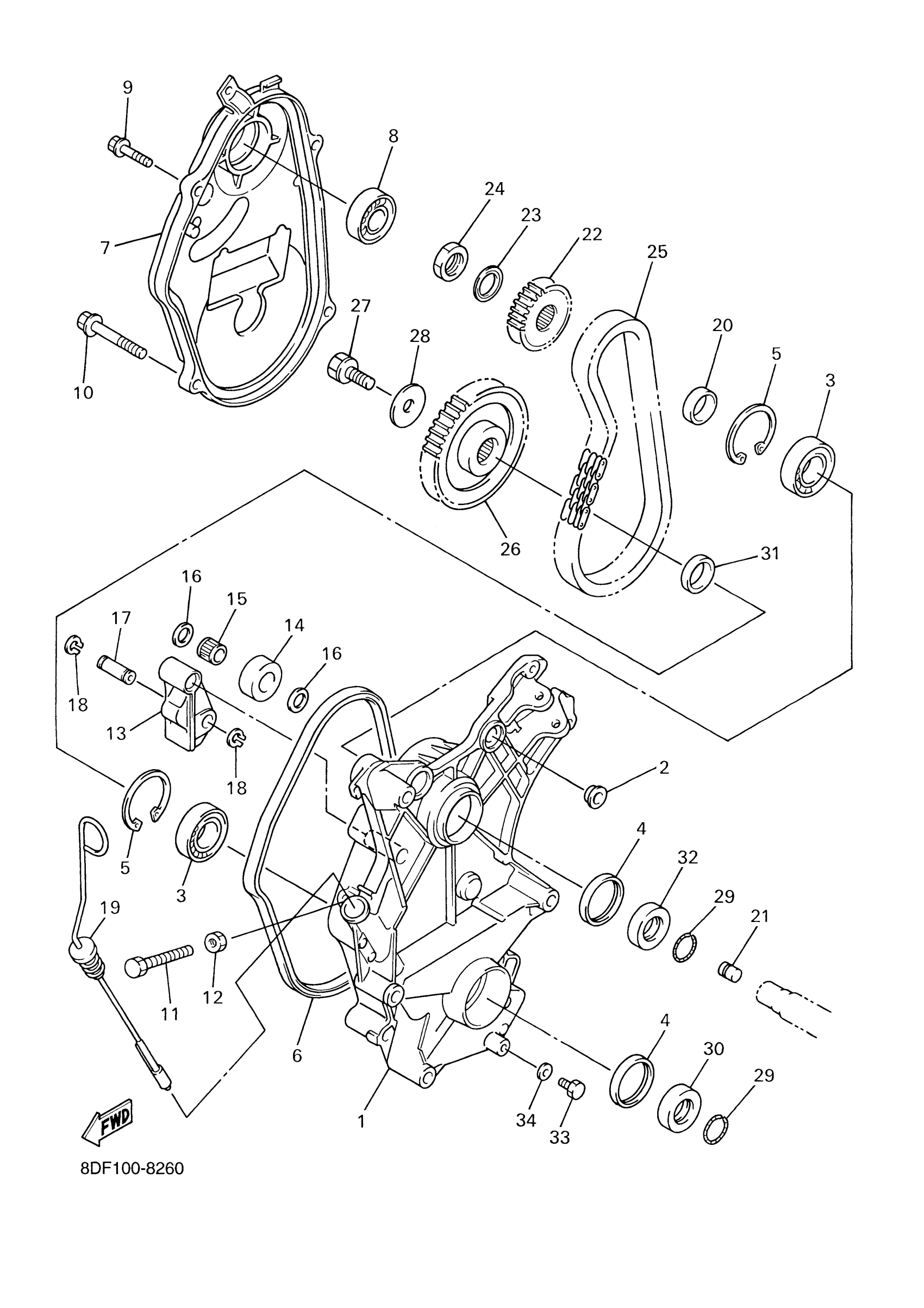

Yamaha SRX700SF (SRX700) 8DW4 2001 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8CR-47541-01-00
$393.99
2
NUT(8CJ)
90179-10679-00
Unavailable
3
BEARING
93306-20592-00
$59.99
4
OIL SEAL
93102-35473-00
$33.99
5
CIRCLIP(26H)
99009-52500-00
$12.49
6
RING, HOUSING/GASKET
8CR-47558-02-00
$16.49
7
CAP, HOUSING
8DF-47543-00-00
Unavailable
8
BEARING(1GJ)
93306-20458-00
$43.99
9
BOLT, FLANGE(6TA)
95817-08030-00
$8.49
10
BOLT, FLANGE
95817-10060-00
$7.49
11
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
12
NUT(6TD)
95337-10600-00
$9.49
13
HOLDER
8CR-47613-00-00
Unavailable
14
WHEEL
8CR-47612-00-00
Unavailable
15
BRG,CYL-CAL ROLLER 11G KY
93315-21227-00
$45.99
16
WASHER, PLATE (5N6)
90201-127E1-00
Unavailable
17
PIN(8CJ)
90249-12227-00
Unavailable
18
CIRCLIP(10Y)
99009-12400-00
Unavailable
19
LEVEL, OIL
8CR-47546-00-00
Unavailable
20
COLLAR
90387-2508D-00
Unavailable
21
PLUG, OIL
82M-17699-00-00
Unavailable
22
SPROCKET, CHAIN DRIVE
8DW-17682-30-00
Unavailable
23
WASHER 810475810000
90208-22001-00
Unavailable
24
NUT (821-47579-00)
90170-22094-00
Unavailable
25
CHAIN
94890-09070-00
Unavailable
26
SPROCKET, CHAIN DRIVEN (38T)
8DW-47587-81-00
Unavailable
27
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
28
WASHER, PLATE (856)
90201-10321-00
Unavailable
29
O-RING (169)
93210-25071-00
Unavailable
30
COLLAR(8CJ)
90387-2508C-00
Unavailable
31
COLLAR
90387-2508B-00
Unavailable
32
COLLAR
90387-2511J-00
Unavailable
33
BOLT(8BC)
97007-08014-00
Unavailable
34
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
