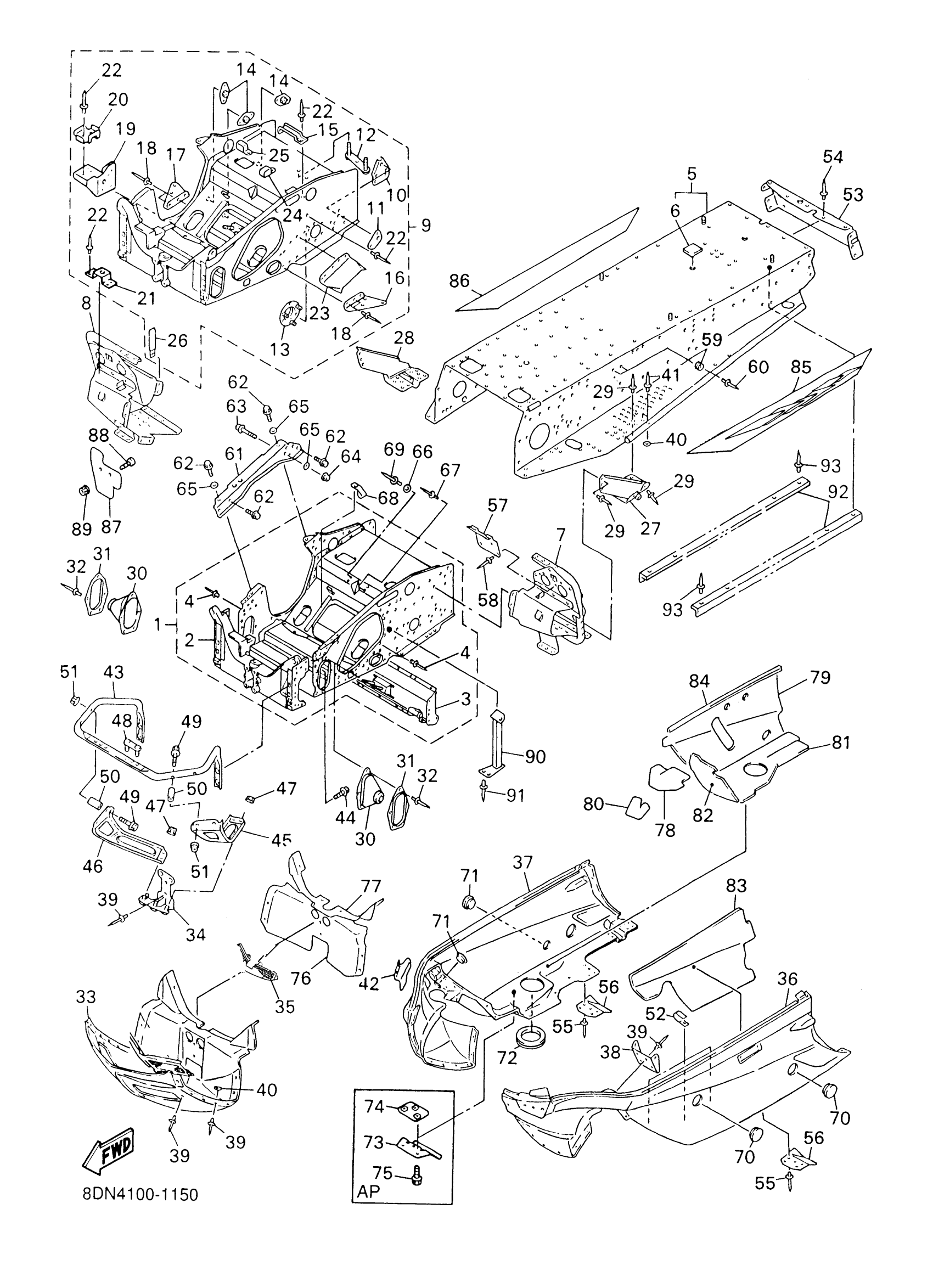

Yamaha SRX700SF (SRX700) 8DW4 2001 FRAME Diagram
#
1
FRONT FRAME COMP.
8DF-21940-05-00
Unavailable
2
. BULKHEAD
8DF-2191A-00-00
Unavailable
3
HEAT EXCHANGER ASSY
8DF-12440-02-00
Unavailable
4
RIVET, BLIND
90267-48016-00
$10.49
4
RIVET, BLIND
90267-48177-00
$2.39
5
REAR FRAME COMP.
8CJ-21950-09-00
Unavailable
6
COVER 3
8CR-2198J-00-00
Unavailable
7
FOOTREST COMP. 1
8DF-21960-09-00
Unavailable
8
FOOTREST COMP. 2
8DF-21970-09-00
Unavailable
9
FRAME CONNECTION K
8DF-W2195-01-00
Unavailable
10
BRACKET, MAIN TRACK 1
8CR-21943-01-00
$6.99
11
BRACKET, MAIN TRACK 2
8CR-21953-00-00
$2.24
12
BRACKET 3
8CR-2196F-00-00
Unavailable
13
. HOUSING, REINF SUB-ASSY (LH)
8CR-21920-00-00
Unavailable
14
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
15
CLAMP, FUEL PIPE
8CR-21977-00-00
Unavailable
16
PANEL, SUB FRAME 6
8CR-21917-00-00
Unavailable
17
PANEL, SUB-FRAME 7
8CR-21918-00-00
Unavailable
18
RIVET, BLIND
90267-48016-00
$10.49
19
. STAY, MUFFLER
8DF-2194J-00-00
Unavailable
20
. BRACKET, 6
8DF-2197M-00-00
Unavailable
21
. STAY, MUFFER
8DF-2194L-00-00
Unavailable
22
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
23
COVER 2
8CR-2198G-00-00
Unavailable
24
CLAMP(83R)
90461-08113-00
Unavailable
25
CLAMP(8CR)
90461-06142-00
Unavailable
26
CLAMP
90462-10236-00
Unavailable
27
PIPE, PIVOT 1
8DF-21941-00-00
Unavailable
28
PIPE, PIVOT 2
8DF-21951-00-00
Unavailable
29
RIVET
90269-07080-00
Unavailable
30
COVER 1
8DN-2198F-00-00
Unavailable
31
PLATE, STRG BRACKET 1
8CR-2195E-00-00
Unavailable
32
RIVET, BLIND
90267-47197-00
Unavailable
33
PANEL, SUB FRAME 1
8CR-21912-11-00
Unavailable
34
PLATE, BACK UP
8CR-23788-11-00
Unavailable
35
STAY 4
8CR-77128-00-00
Unavailable
36
FRAME, UNDER 1
8DF-2196A-11-00
Unavailable
37
FRAME, UNDER 2
8DF-2196E-11-00
Unavailable
38
BRACKET, GUARD FITTING
8CR-21972-00-00
Unavailable
39
RIVET, BLIND
90267-48018-00
Unavailable
40
WASHER PLATE 829771780000
90201-05033-00
Unavailable
41
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
42
BRACKET, COOLER 1
8DF-2194V-02-00
Unavailable
43
BUMPER, FRONT 2
8CR-77512-00-00
Unavailable
44
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
45
BRACKET, FRONT
8CR-21949-10-00
Unavailable
46
BRACKET, FRONT BUMPER
8CR-21959-10-00
Unavailable
47
NUT, SELF-LOCKING
90185-08169-00
Unavailable
48
BRACKET, 5
8CR-2196M-00-00
Unavailable
49
BOLT, FLANGE
95817-08040-00
Unavailable
50
COLLAR(8CR)
90387-0810F-00
Unavailable
51
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
52
CLAMP(4MX)
90465-06376-00
Unavailable
53
REINEFORCEMENT, FRAME REAR 1
8CR-21923-02-00
Unavailable
54
RIVET, BLIND
90267-47195-00
Unavailable
55
RIVET, BLIND
90267-48018-00
Unavailable
56
PROTECTOR, FRAME
8CH-21978-00-00
Unavailable
57
HOOK
8CR-21973-00-00
Unavailable
58
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
59
BUTT0N
81K-2471F-00-00
Unavailable
60
RIVET, BLIND(81K)
90267-40135-00
Unavailable
61
REINEFORCEMENT, FRAME REAR 1
8CR-21921-01-00
Unavailable
62
BOLT, FLANGE
95817-10020-00
Unavailable
63
BOLT,FLANGE
95817-10065-00
Unavailable
64
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
65
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
66
WASHER PLATE 829771780000
90201-05033-00
Unavailable
67
RIVET, BLIND
90267-48177-00
$2.39
68
CLAMP(51Y)
90465-08277-00
Unavailable
69
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
70
PLUG
90338-44270-00
Unavailable
71
PLUG
90338-30268-00
Unavailable
72
SPACER
8DF-21998-10-00
Unavailable
73
PROTECTOR, FRAME 3
8DP-2197C-00-00
Unavailable
74
PATCH 10
8DP-21997-00-00
Unavailable
75
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
76
LINING, SHROUD 2
8CR-77262-00-00
Unavailable
77
LINING, SHROUD 3
8CR-77263-00-00
Unavailable
78
LINING, SHROUD 5
8DF-77265-00-00
Unavailable
79
LINING, SHROUD 7
8DF-77267-00-00
Unavailable
80
LINING,SHROUD 8
8DF-77268-00-00
Unavailable
81
LINING,SHROUD 9
8DF-77269-00-00
Unavailable
82
LINING, SHROUD 4
8DF-77264-00-00
Unavailable
83
DAMPER, NOISE 11
8DF-77271-00-00
Unavailable
84
TAPE, 5
8DF-7717J-00-00
Unavailable
85
GRAPHIC 7
8EA-7711G-01-00
Unavailable
86
GRAPHIC 8
8EA-7711H-01-00
Unavailable
87
COVER, TOE HOOK
8DF-2196N-00-00
Unavailable
88
SCREW, BINDING
98907-06012-00
Unavailable
89
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
90
PROTECTOR, FRAME
8EA-2197E-00-00
Unavailable
91
RIVET, BLIND
90267-48016-00
$10.49
92
PROTECTOR, FRAME
8DN-21978-00-00
Unavailable
93
RIVET, BLIND
90267-50004-00
Unavailable
