2000 Yamaha SRX700 Ohlins (SRX700SD) Windshield Diagram

← All diagrams

Find the part on the Windshield diagram for your 2000 Yamaha SRX700 Ohlins (SRX700SD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

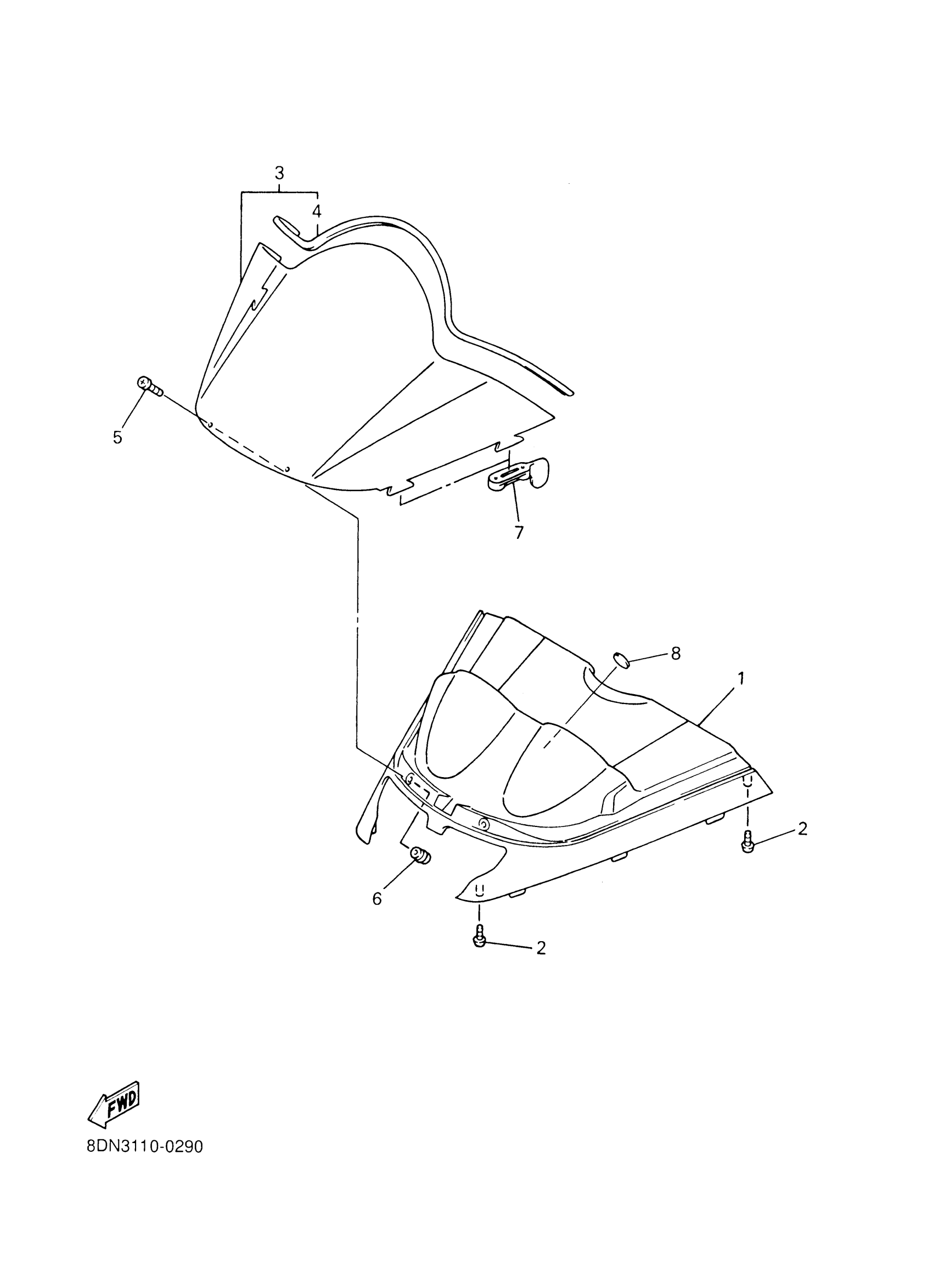

2000 Yamaha SRX700 Ohlins (SRX700SD) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8DN-77251-10-00

1
Out of stock

2

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

3

8DN-LOW BLUE BOTTOM SHIELD

8DN-77210-00-BU

1
Out of stock

4

TRIM,UPPER

87K-77213-00-00

1
Out of stock

5

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

6

NUT(1KT)

90179-05523-00

1

$4.33

In stock

7

FASTNER

82H-77223-00-00

1

$7.63

In stock

8

EMBLEM

4XV-2341B-00-00

1

$23.12

In stock
