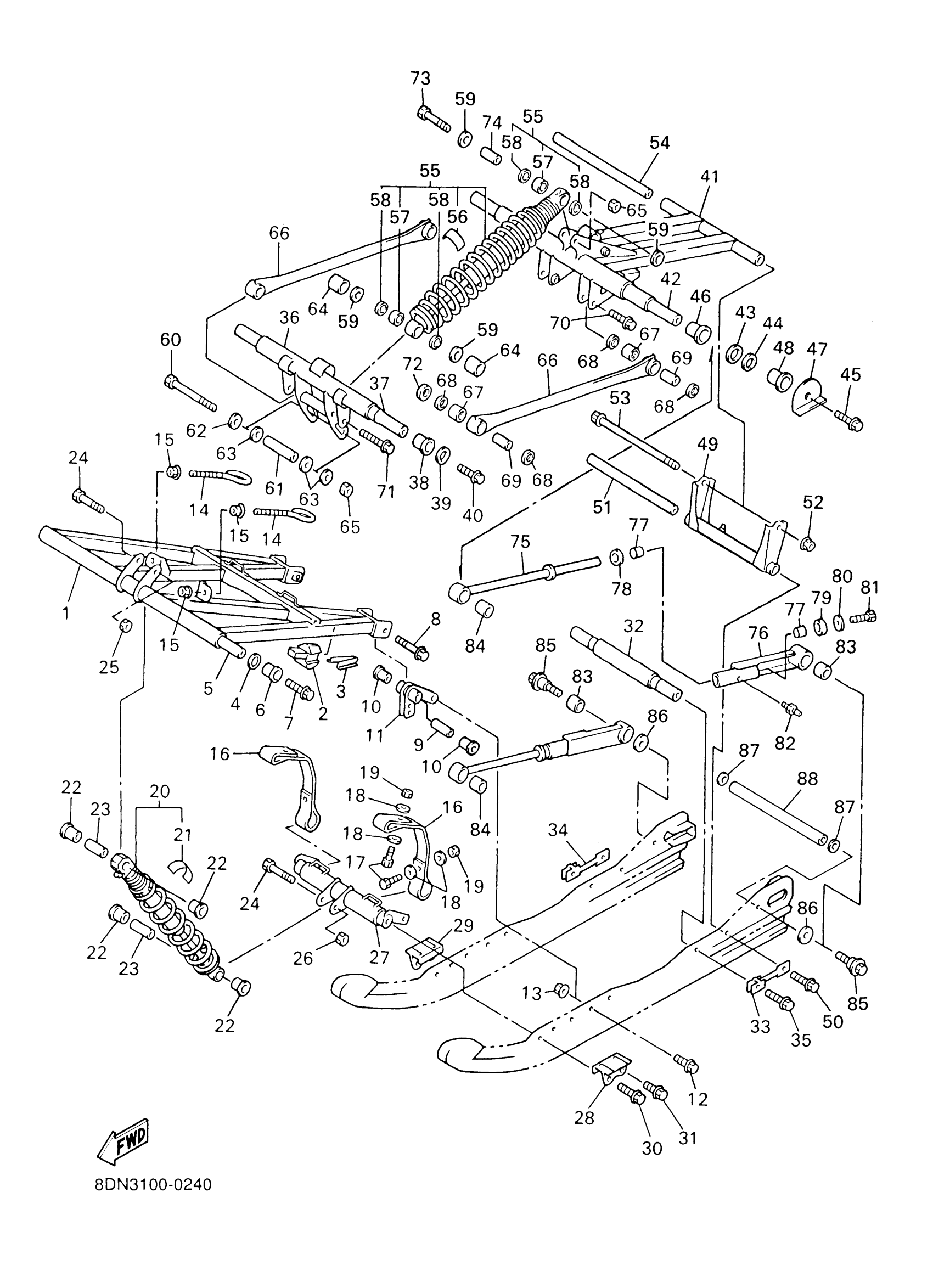

Yamaha SRX700SD (SRX700 OHLINS) 8DN32 2000 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8DN-47331-00-00

Unavailable

2

DAMPER 1

8DF-47456-30-00

$31.99

3

PLATE, DAMPER

8DF-47458-00-00

$49.99

4

WASHER, PLATE(8CJ)

90201-210U0-00

$10.49

5

SHAFT 1

8CR-47465-00-00

Unavailable

6

BUSH, SOLID(8CJ)

90381-19111-00

$15.99

7

BOLT (8V0)

90109-10771-00

$5.60

8

BOLT, FLANGE

90105-10029-00

$5.60

9

COLLAR(8CJ)

90387-1009T-00

$23.99

10

BUSH, SOLID(8CJ)

90381-15112-00

$9.49

11

BRACKET 1

8CR-47415-00-00

Unavailable

12

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

14

HOOK 3

8CR-47448-00-00

$16.49

15

NUT, FLANGE(JN5)

95707-08500-00

$3.13

16

STOPPER 1

8CR-47495-00-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

WASHER, PLATE

90201-06747-00

Unavailable

19

NUT, NYLON

95707-06300-00

Unavailable

20

SHOCK ABSORBER 2

8DW-47481-00-00

Unavailable

21

LABEL, WARNING

4AA-22259-60-00

Unavailable

22

BUSH, SOLID(8CM)

90381-14101-00

Unavailable

23

COLLAR (8U7)

90387-105G5-00

Unavailable

24

BOLT(88R)

90101-10738-00

Unavailable

25

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

26

NUT, U

95617-10100-00

Unavailable

27

BRACKET 4

8EA-47418-00-00

Unavailable

28

BRACKET 5

8DF-47463-01-00

Unavailable

29

BRACKET 6

8DF-47464-01-00

Unavailable

30

BOLT, FLANGE

95817-10030-00

Unavailable

31

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

32

SHAFT 4

8DF-47486-00-00

Unavailable

33

WASHER 1

8DF-47374-00-00

Unavailable

34

WASHER 2

8DF-47375-00-00

Unavailable

35

BOLT, FLANGE

95817-10030-00

Unavailable

36

BRACKET 2

8CR-47416-10-00

Unavailable

37

SHAFT 6

8CR-47488-00-00

Unavailable

38

BUSH, SOLID(8CM)

90381-22099-00

Unavailable

39

WASHER, PLATE(1KE)

90201-207J5-00

Unavailable

40

BOLT (8V0)

90109-10771-00

$5.60

41

ARM, PIVOT 2

8CR-47332-10-00

Unavailable

42

SHAFT 2

8CV-47475-00-00

Unavailable

43

WASHER, PLATE (8V2)

90201-251G8-00

Unavailable

44

WASHER, PLATE(8CJ)

90201-250T6-00

Unavailable

45

BOLT (8V0)

90109-10771-00

$5.60

46

BUSH, SOLID(8CJ)

90381-28108-00

Unavailable

47

BRACKET, REAR 1

8CR-47426-11-00

Unavailable

48

BRACKET, REAR 2

8CR-47425-00-00

Unavailable

49

BRACKET 3

8CR-47417-01-00

Unavailable

50

BOLT, FLANGE

95817-10030-00

Unavailable

51

SHAFT 3

82M-47485-02-00

Unavailable

52

NUT, SELF-LOCKING

90185-08169-00

Unavailable

53

BOLT, FLANGE

95827-08220-00

Unavailable

54

COLLAR (8U7)

90387-083G6-00

Unavailable

55

SHOCK ABSORBER

8DW-47480-00-00

Unavailable

56

LABEL, WARNING

4AA-22259-60-00

Unavailable

57

BEARING, CYLINDRICAL(8CM)

93315-21454-00

Unavailable

58

OIL SEAL (2K8)

93109-14021-00

Unavailable

59

WASHER, PLATE(8CM)

90202-14226-00

Unavailable

60

BOLT, ADJUSTING

8AC-4631K-00-00

Unavailable

61

COLLAR(8CJ)

90387-1009S-00

Unavailable

62

WASHER, PLATE

90201-10039-00

Unavailable

63

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

64

COLLAR(8CM)

90387-1404R-00

Unavailable

65

NUT, U

95617-10100-00

Unavailable

66

ROD, RELAY

8CX-47494-01-00

Unavailable

67

BEARING, CYLINDRICAL(8CM)

93315-21455-00

Unavailable

68

OIL SEAL (2K8)

93109-14021-00

Unavailable

69

COLLAR

90387-1007M-00

Unavailable

70

BOLT, FLANGE

95817-10035-00

Unavailable

71

BOLT, FLANGE

95814-10040-00

Unavailable

72

WASHER, PLATE(8BT)

90201-100U1-00

Unavailable

73

BOLT(88R)

90101-10738-00

Unavailable

74

COLLAR(8CM)

90387-1007N-00

Unavailable

75

ROD, CONTROL 1

8ED-4745A-00-00

Unavailable

76

ROD, CONTROL 2

8CR-4745B-00-00

Unavailable

77

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

Unavailable

78

WASHER, PLATE(8CH)

90202-16233-00

Unavailable

79

WASHER, PLATE(8BT)

90202-16230-00

Unavailable

80

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

81

BOLT(6TD)

97017-10025-00

Unavailable

82

NIPPLE, GREASE

93700-06M03-00

Unavailable

83

BUSH, SOLID(8CM)

90380-22232-00

Unavailable

84

BUSH, SOLID(8CJ)

90380-28235-00

Unavailable

85

SCREW, REAR PIVOT

8DF-47367-09-00

Unavailable

86

WASHER, PLATE(JN9)

90201-100S2-00

Unavailable

87

WASHER PLATE (789)

90201-10136-00

Unavailable

88

SHAFT 3

82M-47485-02-00

Unavailable
