- SRX700SD (SRX700 OHLINS) 8DN32 2000
RADIATOR HOSE

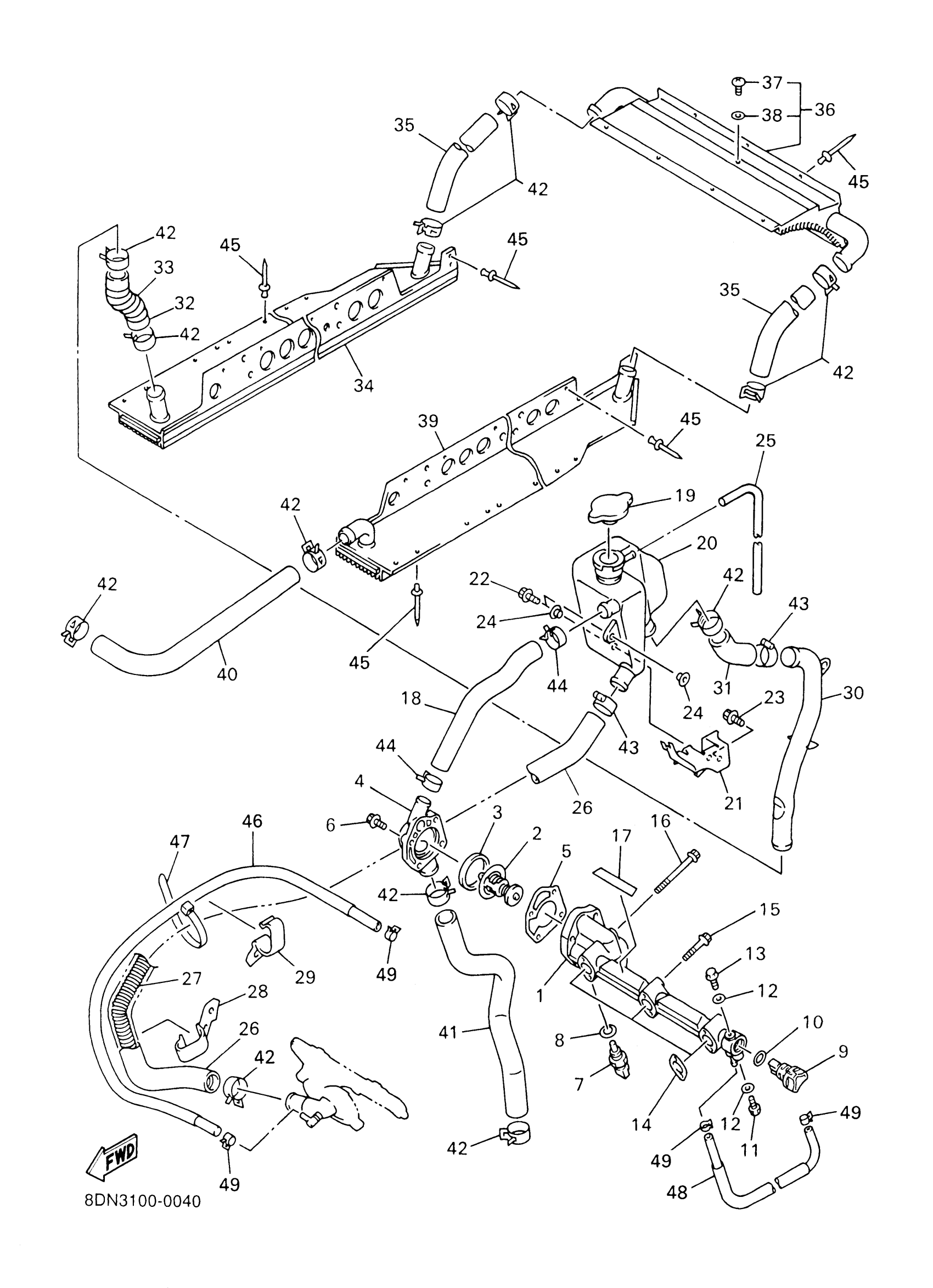

Yamaha SRX700SD (SRX700 OHLINS) 8DN32 2000 RADIATOR HOSE Diagram
#
1
JOINT ASSY 1
8DF-1240L-10-00
Unavailable
2
THERMOSTAT
8DF-12411-00-00
Unavailable
3
SEAL, THERMOSTAT
8A7-12412-01-00
$16.49
4
COVER, THERMOSTAT
8DF-12413-00-00
Unavailable
5
GASKET, COVER
8DF-12414-00-00
Unavailable
6
BOLT, FLANGE
95817-06025-00
Unavailable
7
THERMOSENSOR ASSY
8CC-85790-01-00
$95.99
8
WASHER, PLATE
90201-12790-00
$9.49
9
COCK, DRAIN
8DF-12478-00-00
Unavailable
10
O-RING (646)
93210-19123-00
Unavailable
11
BOLT
90109-063E8-00
Unavailable
12
WASHER, SEAL (7G5)
90210-06006-00
$9.49
13
BOLT (583 TACHOMETER)
90109-06418-00
$9.49
14
GASKET
8DF-12435-00-00
$5.49
15
BOLT, FLANGE
95817-06045-00
$8.49
16
BOLT, FLANGE
95817-06070-00
Unavailable
17
EMBLEM
8DN-12629-00-00
Unavailable
18
PIPE 1
8DF-12481-00-00
Unavailable
19
CAP, RADIATOR
4FL-12462-00-00
Unavailable
20
TANK, RESERVE
8DF-1249B-01-00
Unavailable
21
BRACKET 1
8DF-1244E-00-00
Unavailable
22
BOLT, WITH WASHER(2WG)
90119-06172-00
Unavailable
23
BOLT, FLANGE
95817-06020-00
Unavailable
24
COLLAR (838-84757-00)
90387-06024-00
Unavailable
25
HOSE (L600)
90445-083J5-00
Unavailable
26
PIPE 2
8DF-12482-00-00
Unavailable
27
SPRING, COMPRESSION
90501-12001-00
Unavailable
28
CLAMP
90461-12146-00
Unavailable
29
CLAMP
90461-12147-00
Unavailable
30
PIPE 3
8DF-12483-01-00
Unavailable
31
HOSE 2
8DF-1243E-00-00
Unavailable
32
HOSE,3
8DF-1243F-00-00
Unavailable
33
SPRING, COMPRESSION
90501-144L4-00
Unavailable
34
HEAT EXCHANGER ASSY 3
8DF-1240F-04-00
Unavailable
35
PIPE 4
8DF-12484-01-00
Unavailable
36
HEAT EXCHANGER ASSY 4
8DF-1241A-11-00
Unavailable
37
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
38
WASHER, SEAL (7G5)
90210-06006-00
$9.49
39
HEAT EXCHANGER ASSY
8DF-1240E-04-00
Unavailable
40
PIPE 5
8DF-12485-00-00
Unavailable
41
PIPE 6
8DF-12476-00-00
Unavailable
42
CLIP (8M6)
90467-28046-00
Unavailable
43
HOSE CLAMP ASSY
90450-32015-00
Unavailable
44
CLIP (10V)
90467-23067-00
Unavailable
45
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
46
PIPE 7
8DF-12477-00-00
Unavailable
47
CLAMP(4FM)
90464-15195-00
Unavailable
48
PIPE 8
8DF-1248A-00-00
Unavailable
49
CLIP(3BM)
90467-10135-00
Unavailable
