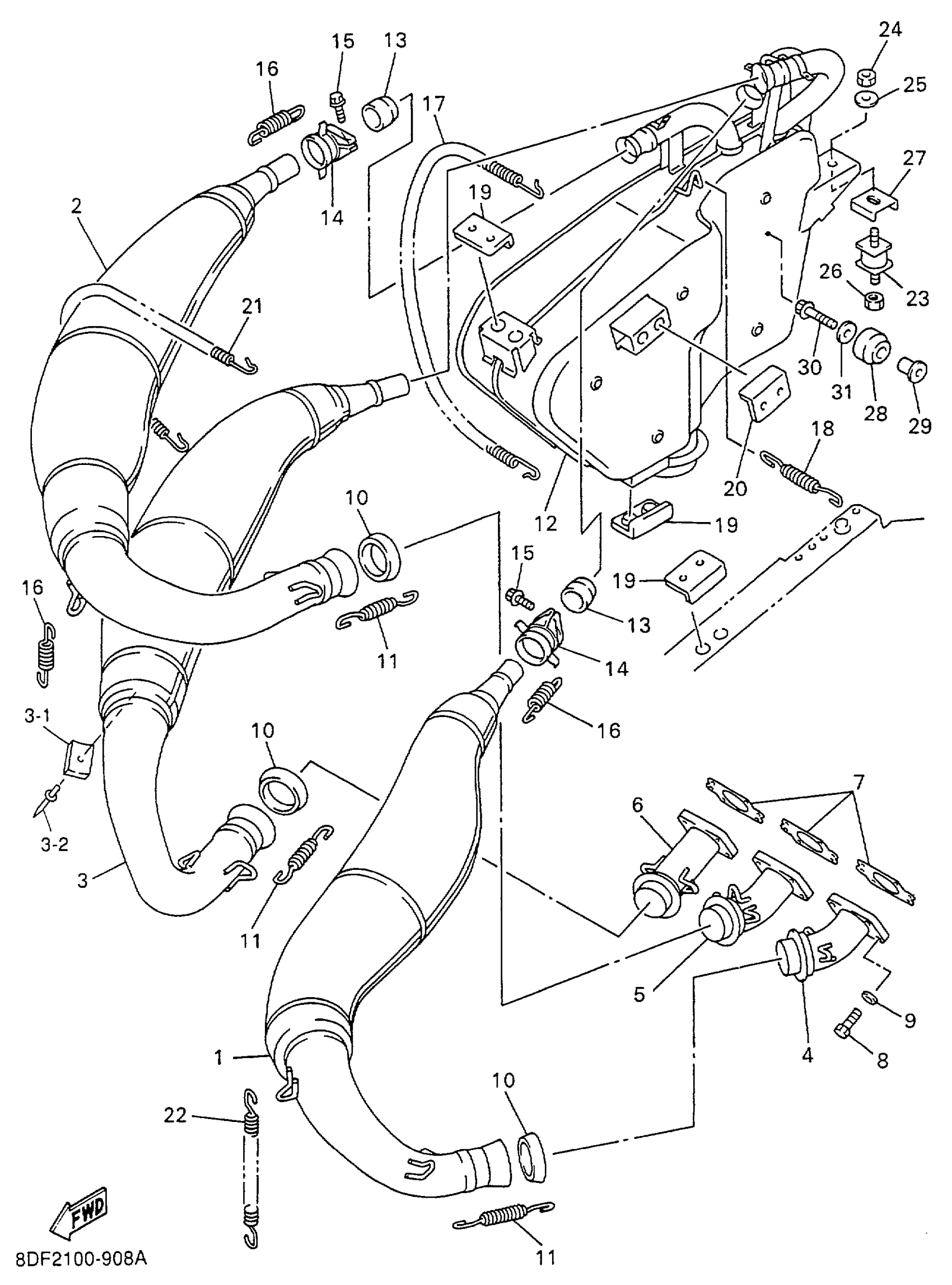

Yamaha SRX700SD (SRX700 OHLINS) 8DN32 2000 EXHAUST Diagram
#
1
EXHAUST PIPE ASSY 1
8DF-14610-10-00
Unavailable
2
EXHAUST PIPE ASSY 2
8DF-14620-10-00
Unavailable
3
EXHAUST PIPE ASSY 3
8DF-14630-11-00
Unavailable
3
DAMPER, MUFFLER
8DF-14737-00-00
Unavailable
3
RIVET, BLIND(41R)
90267-48104-00
$3.50
4
JOINT, EXHAUST 1
8DF-14615-00-00
Unavailable
5
JOINT, EXHAUST 2
8DF-14625-00-00
Unavailable
6
JOINT, EXHAUST 3
8DF-14635-00-00
Unavailable
7
GASKET, EXHAUST PIPE
8DF-14613-00-00
$23.99
8
BOLT, HEXAGON
97017-06025-00
$4.24
9
WASHER(6TA)
92907-06600-00
$2.72
10
GASKET, EXHAUST PIPE
8DF-14623-00-00
$39.99
11
SPRING, TENSION (8R7)
90506-20272-00
$11.49
12
SECOND SILENCER, MUFFLER
8DF-14640-12-00
Unavailable
13
GASKET, MUFFLER
8DF-14714-10-00
$74.99
14
JOINT, SILENCER 3
8DF-1467F-00-00
Unavailable
15
BOLT, SMALL FLANGE
95027-08020-00
Unavailable
16
SPRING, TENSION (8M6)
90506-20093-00
Unavailable
17
SPRING, TENSION
90506-16504-00
Unavailable
18
SPRING, TENSION (8R7)
90506-20272-00
$11.49
19
PROTECTOR, MUFFLER 2
8DF-14728-00-00
Unavailable
20
PROTECTOR, MUFFLER 2
83R-14728-01-00
Unavailable
21
SPRING, TENSION
90506-16497-00
Unavailable
22
SPRING, TENSION
90506-16512-00
Unavailable
23
DAMPER, MUFFLER
8DF-14747-00-00
Unavailable
24
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
25
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
26
NUT, SELF-LOCKING
90185-08169-00
Unavailable
27
WASHER
8DF-14616-10-00
Unavailable
28
INSULATOR, MOUNTING
8DF-22891-00-00
Unavailable
29
COLLAR
90387-06158-00
Unavailable
30
BOLT, FLANGE
95817-06025-00
Unavailable
31
WASHER
90209-06012-00
Unavailable
