ELECTRICAL 1

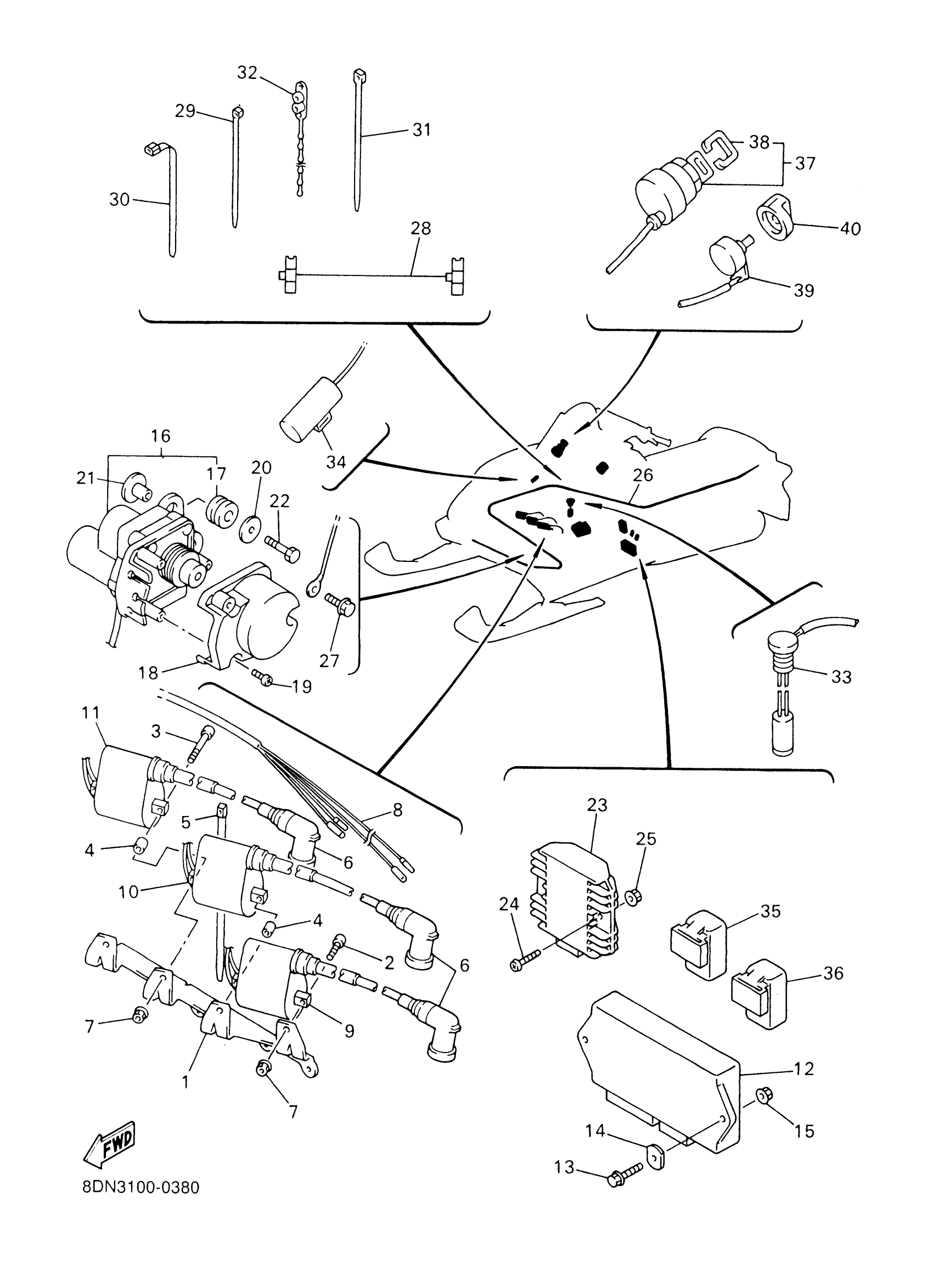

Yamaha SRX700SD (SRX700 OHLINS) 8DN32 2000 ELECTRICAL 1 Diagram
#
1
BRACKET, IGNITION COIL
8DF-82316-00-00
Unavailable
2
BOLT,SOCKET
91317-06020-00
Unavailable
3
BOLT,SOCKET
91317-06040-00
$3.76
4
COLLAR
90387-07020-00
$8.49
5
CLAMP(4FM)
90464-15195-00
$4.41
6
PLUG CAP ASSY
8DF-82370-00-00
$41.99
7
NUT,SELF-LOCKING
95607-06200-00
$12.49
8
WIRE, SUB LEAD
8DM-82509-00-00
Unavailable
9
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
10
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
11
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
12
C.D.I. UNIT ASSEMBLY
8DN-85540-10-00
Unavailable
13
BOLT, FLANGE
95817-06020-00
$3.81
14
NUT,SPEC'L SHAPE
90179-06W01-00
Unavailable
15
NUT, FLANGE(4MV)
95707-06500-00
$1.23
16
SERVO MOTOR ASSY
8DF-85820-00-00
Unavailable
17
GROMMET 839774310000
90480-14023-00
Unavailable
18
COVER, SERVO MOTOR
8DF-85829-00-00
Unavailable
19
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
20
WASHER, PLATE
90201-06380-00
Unavailable
21
COLLAR(52E)
90387-063G3-00
Unavailable
22
BOLT, HEXAGON
97017-06030-00
Unavailable
23
RECTIFIER & REGULATOR ASSY
4JH-81960-01-00
Unavailable
24
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
25
NUT, FLANGE(4MV)
95707-06500-00
$1.23
26
WIRE HARNESS ASSEMBLY
8DN-82590-00-00
Unavailable
27
BOLT(3JP)
97017-06010-00
Unavailable
28
WIRE, LEAD
8DN-8471G-00-00
Unavailable
29
CLAMP(4FM)
90464-15195-00
$4.41
30
CLAMP(4FM)
90464-15195-00
$4.41
31
CLAMP
90464-13077-00
Unavailable
32
CLAMP
90464-20031-00
Unavailable
33
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
34
CONDENSER, SMOOTHING
1NL-81965-01-00
Unavailable
35
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
36
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
37
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
38
CAP, KEY
526-82579-00-00
Unavailable
39
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
40
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
