- SRX700SC (SRX700 OHLINS) 8DN1 1999
TRACK SUSPENSION 2

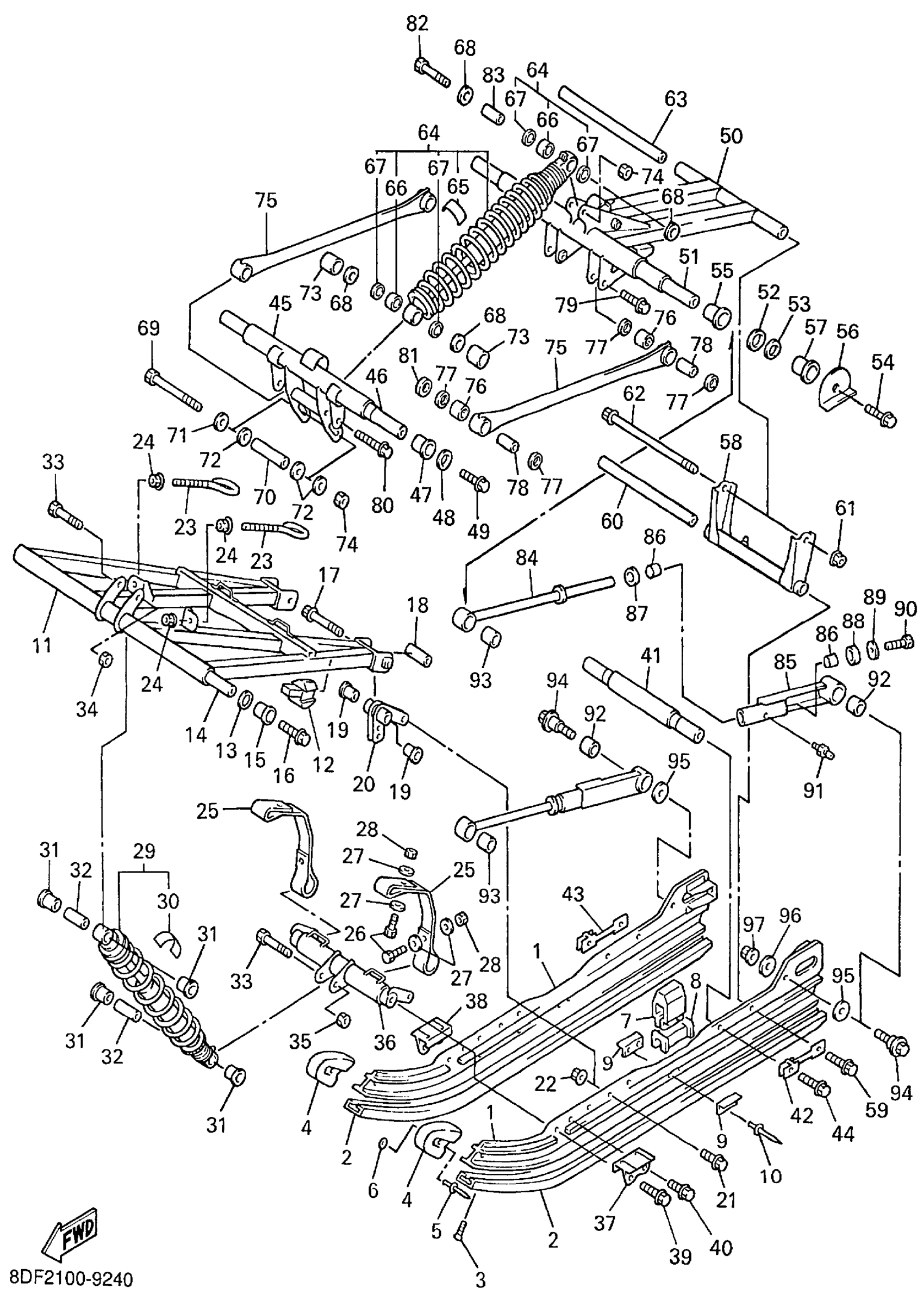

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING
8CR-W4741-00-00
Unavailable
2
136 BLACK HYFAX
SMA-8CW92-70-BK
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
5
RIVET BLIND
90267-48194-00
$3.28
6
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
7
DAMPER 2
8CM-47457-00-00
$16.49
8
SPACER
8CM-47341-00-00
$16.49
9
PLATE, DAMPER
8AX-47458-00-00
$10.99
10
RIVET, BLIND (8K4)
90267-48062-00
$3.66
11
ARM, PIVOT 1
8DF-47331-00-00
$430.99
12
DAMPER 1
8DF-47456-20-00
Unavailable
13
WASHER, PLATE(8CJ)
90201-210U0-00
$10.49
14
SHAFT 1
8CR-47465-00-00
Unavailable
15
BUSH, SOLID(8CJ)
90381-19111-00
$15.99
16
BOLT (8V0)
90109-10771-00
Unavailable
17
BOLT, FLANGE
90105-10029-00
Unavailable
18
COLLAR(8CJ)
90387-1009T-00
Unavailable
19
BUSH, SOLID(8CJ)
90381-15112-00
Unavailable
20
BRACKET 1
8CR-47415-00-00
Unavailable
21
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
22
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
23
HOOK 3
8CR-47448-00-00
Unavailable
24
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
25
STOPPER 1
8CV-47495-00-00
Unavailable
26
BOLT, HEXAGON
97017-06025-00
Unavailable
27
WASHER, PLATE
90201-06747-00
Unavailable
28
NUT, NYLON
95707-06300-00
Unavailable
29
SHOCK ABSORBER 2
8DF-47481-10-00
Unavailable
30
LABEL, WARNING
4AA-22259-60-00
Unavailable
31
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
32
COLLAR (8U7)
90387-105G5-00
Unavailable
33
BOLT(88R)
90101-10738-00
Unavailable
34
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
35
NUT, U
95617-10100-00
Unavailable
36
BRACKET 4
8CR-47418-10-00
Unavailable
37
BRACKET 5
8DF-47463-01-00
Unavailable
38
BRACKET 6
8DF-47464-01-00
Unavailable
39
BOLT, FLANGE
95817-10030-00
Unavailable
40
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
41
SHAFT 4
8DF-47486-00-00
Unavailable
42
WASHER 1
8DF-47374-00-00
Unavailable
43
WASHER 2
8DF-47375-00-00
Unavailable
44
BOLT, FLANGE
95817-10030-00
Unavailable
45
BRACKET 2
8CR-47416-10-00
Unavailable
46
SHAFT 6
8CR-47488-00-00
Unavailable
47
BUSH, SOLID(8CM)
90381-22099-00
Unavailable
48
WASHER, PLATE(1KE)
90201-207J5-00
Unavailable
49
BOLT (8V0)
90109-10771-00
Unavailable
50
ARM, PIVOT 2
8CR-47332-10-00
Unavailable
51
SHAFT 2
8CV-47475-00-00
Unavailable
52
WASHER, PLATE (8V2)
90201-251G8-00
Unavailable
53
WASHER, PLATE(8CJ)
90201-250T6-00
Unavailable
54
BOLT (8V0)
90109-10771-00
Unavailable
55
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
56
BRACKET, REAR 1
8CR-47426-11-00
Unavailable
57
BRACKET, REAR 2
8CR-47425-00-00
Unavailable
58
BRACKET 3
8CR-47417-01-00
Unavailable
59
BOLT, FLANGE
95817-10030-00
Unavailable
60
SHAFT 3
82M-47485-02-00
Unavailable
61
NUT, SELF-LOCKING
90185-08169-00
Unavailable
62
BOLT, FLANGE
95827-08220-00
Unavailable
63
COLLAR (8U7)
90387-083G6-00
Unavailable
64
SHOCK ABSORBER
8DN-47480-10-00
Unavailable
64
SHOCK ABSORBER
8DN-47480-10-00
Unavailable
65
LABEL, WARNING
4AA-22259-60-00
Unavailable
66
BEARING, CYLINDRICAL(8CM)
93315-21454-00
Unavailable
67
OIL SEAL (2K8)
93109-14021-00
Unavailable
68
WASHER, PLATE(8CM)
90202-14226-00
Unavailable
69
BOLT, ADJUSTING
8AC-4631K-00-00
Unavailable
70
COLLAR(8CJ)
90387-1009S-00
Unavailable
71
WASHER, PLATE
90201-10039-00
Unavailable
72
WASHER, PLATE(8BT)
90201-100U1-00
Unavailable
73
COLLAR(8CM)
90387-1404R-00
Unavailable
74
NUT, U
95617-10100-00
Unavailable
75
ROD, RELAY
8CX-47494-01-00
Unavailable
76
BEARING, CYLINDRICAL(8CM)
93315-21455-00
Unavailable
77
OIL SEAL (2K8)
93109-14021-00
Unavailable
78
COLLAR
90387-1007M-00
Unavailable
79
BOLT, FLANGE
95817-10035-00
Unavailable
80
BOLT, FLANGE
95814-10040-00
Unavailable
81
WASHER, PLATE(8BT)
90201-100U1-00
Unavailable
82
BOLT(88R)
90101-10738-00
Unavailable
83
COLLAR(8CM)
90387-1007N-00
Unavailable
84
ROD, CONTROL 1
8CR-4745A-01-00
Unavailable
85
ROD, CONTROL 2
8CR-4745B-00-00
Unavailable
86
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
87
WASHER, PLATE(8CJ)
90202-16229-00
Unavailable
88
WASHER, PLATE(8CH)
90202-16233-00
Unavailable
89
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
90
BOLT(6TD)
97017-10025-00
Unavailable
91
NIPPLE, GREASE
93700-06M03-00
Unavailable
92
BUSH, SOLID(8CM)
90380-22232-00
Unavailable
93
BUSH, SOLID(8CJ)
90380-28235-00
Unavailable
94
SCREW, REAR PIVOT
8DF-47367-09-00
Unavailable
95
WASHER, PLATE(JN9)
90201-100S2-00
Unavailable
96
WASHER, PLATE
90201-101U2-00
Unavailable
97
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
