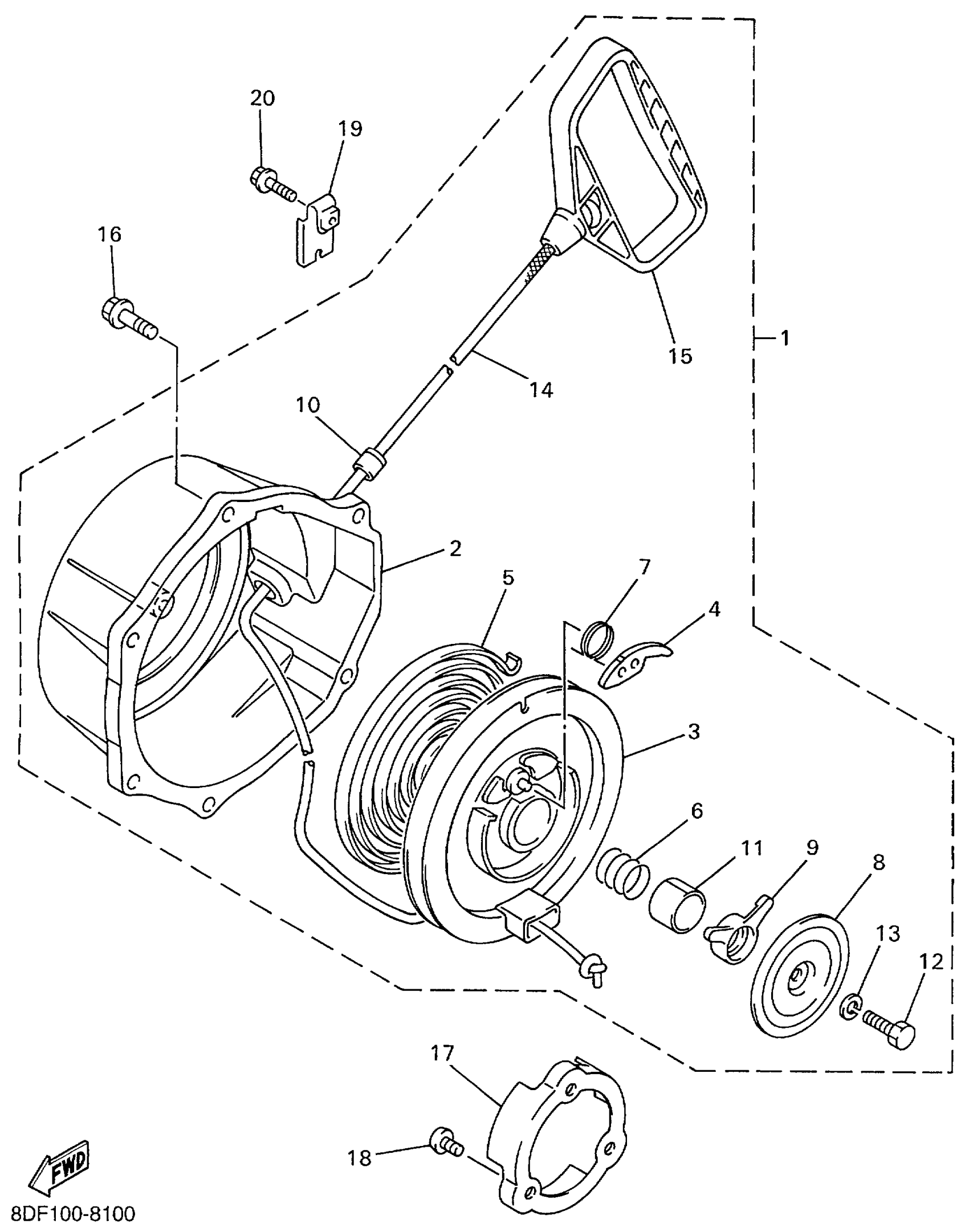

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 STARTER Diagram

#

Description
Price

1

STARTER ASSY

8DF-15710-01-00

Unavailable

2

CASE, STARTER

8DF-15711-01-00

Unavailable

3

DRUM, SHEAVE

8DF-15714-01-00

Unavailable

4

. PAWL, DRIVE

8CH-15741-00-00

Unavailable

5

. SPRING, STARTER

8DF-15713-00-00

Unavailable

6

SPRING, FRICTION

8DF-15715-00-00

$7.72

7

. SPRING

8CH-15767-00-00

Unavailable

8

. PLATE, DRIVE

8DF-15716-00-00

Unavailable

9

. GUIDE, CAM

8DF-15735-00-00

Unavailable

10

GUIDE, ROPE

8F3-15758-00-00

$17.09

11

. BUSH

8DF-15753-00-00

Unavailable

12

. BOLT

8DF-15768-00-00

Unavailable

13

WASHER(JN5)

92907-08100-00

$5.98

14

WIRE, STARTER (BRAIDED)

8CH-15751-00-00

$25.18

15

HANDLE, STARTER

8F3-15755-00-00

$23.00

16

BOLT, FLANGE(4MY)

95027-08025-00

$6.91

17

PULLEY, STARTER

8DF-15723-00-00

$41.46

18

BOLT, BUTTON HEAD

92017-08012-00

$6.18

19

GUIDE, ROPE

8DF-15758-00-00

Unavailable

20

BOLT, FLANGE

95817-06014-00

$2.15
