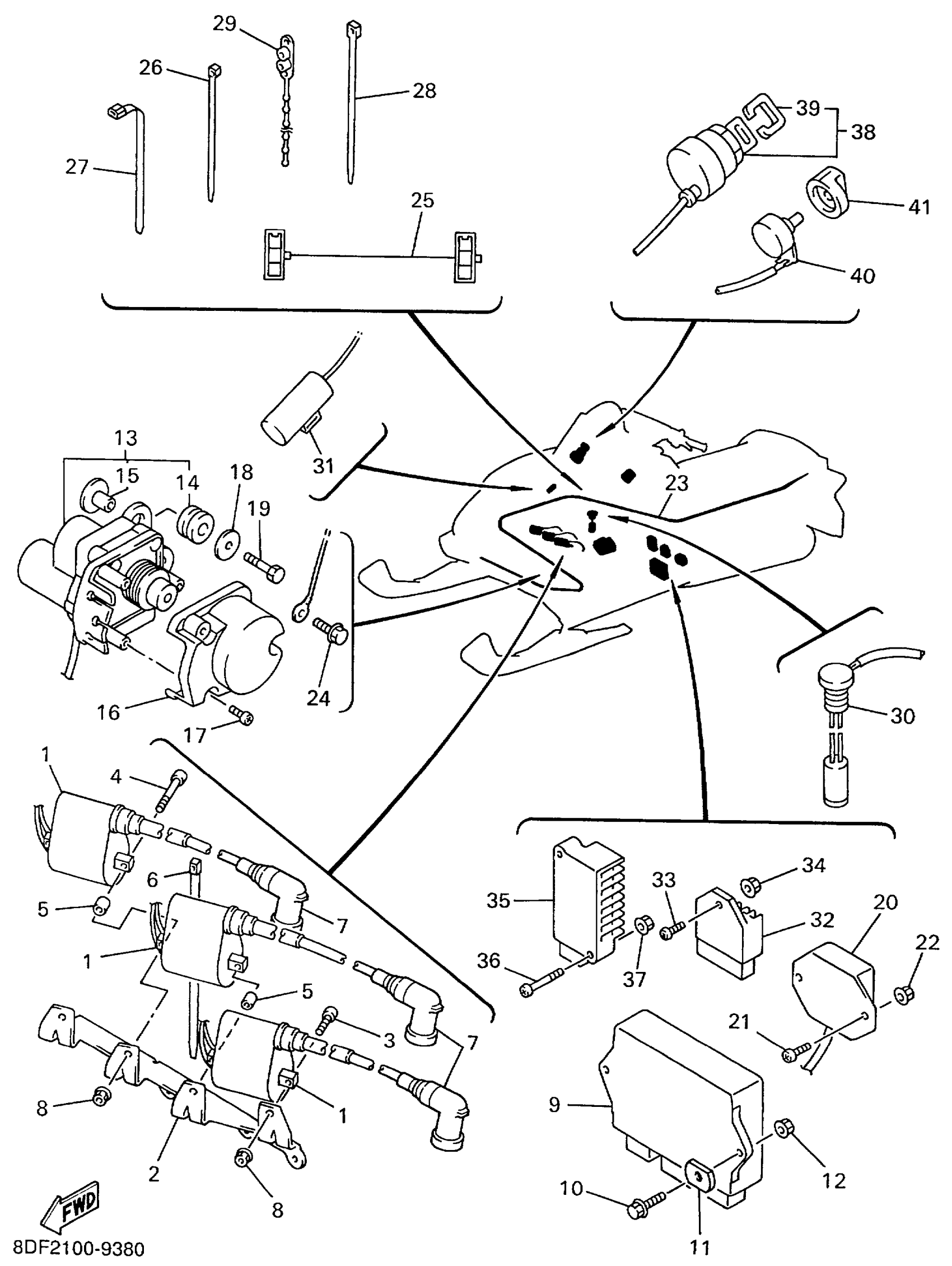

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8DF-82310-10-00

Unavailable

2

BRACKET, IGNITION COIL

8DF-82316-00-00

Unavailable

3

BOLT,SOCKET

91317-06020-00

$2.11

4

BOLT,SOCKET

91317-06040-00

$3.45

5

COLLAR

90387-07020-00

$6.17

6

CLAMP(4FM)

90464-15195-00

$2.77

7

PLUG CAP ASSY

8DF-82370-00-00

$35.28

8

NUT,SELF-LOCKING

95607-06200-00

$10.25

9

C.D.I. UNIT ASSEMBLY

8DN-85540-00-00

Unavailable

10

BOLT, FLANGE

95817-06020-00

$2.69

11

NUT,SPEC'L SHAPE

90179-06W01-00

Unavailable

12

NUT, FLANGE(4MV)

95707-06500-00

$0.78

13

SERVO MOTOR ASSY

8DF-85820-00-00

$486.71

14

GROMMET 839774310000

90480-14023-00

$4.74

15

COLLAR(52E)

90387-063G3-00

$6.29

16

COVER, SERVO MOTOR

8DF-85829-00-00

Unavailable

17

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.52

18

WASHER, PLATE

90201-06380-00

$0.57

19

BOLT, HEXAGON

97017-06030-00

$3.00

20

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

$141.46

21

SCREW, PAN

98507-06014-00

$6.18

22

NUT, FLANGE(4MV)

95707-06500-00

$0.78

23

WIRE HARNESS ASSEMBLY

8DF-82590-10-00

Unavailable

24

BOLT(3JP)

97017-06010-00

$2.62

25

WIRE, LEAD

8CR-8471G-00-00

Unavailable

26

CLAMP(4FM)

90464-15195-00

$2.77

27

CLAMP(4FM)

90464-15195-00

$2.77

28

CLAMP

90464-13077-00

$6.68

29

CLAMP

90464-20031-00

$2.62

30

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

$44.61

31

CONDENSER, SMOOTHING

1NL-81965-01-00

$99.88

32

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

33

SCREW, PAN

98507-06014-00

$6.18

34

NUT, FLANGE(4MV)

95707-06500-00

$0.78

35

RECTIFIER & REGULATOR ASSEMBLY

8DF-81960-00-00

Unavailable

36

SCREW, PAN HEAD (76T)

98517-06025-00

$3.12

37

NUT, FLANGE(4MV)

95707-06500-00

$0.78

38

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

39

CAP, KEY

526-82579-00-00

$6.72

40

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

41

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable
