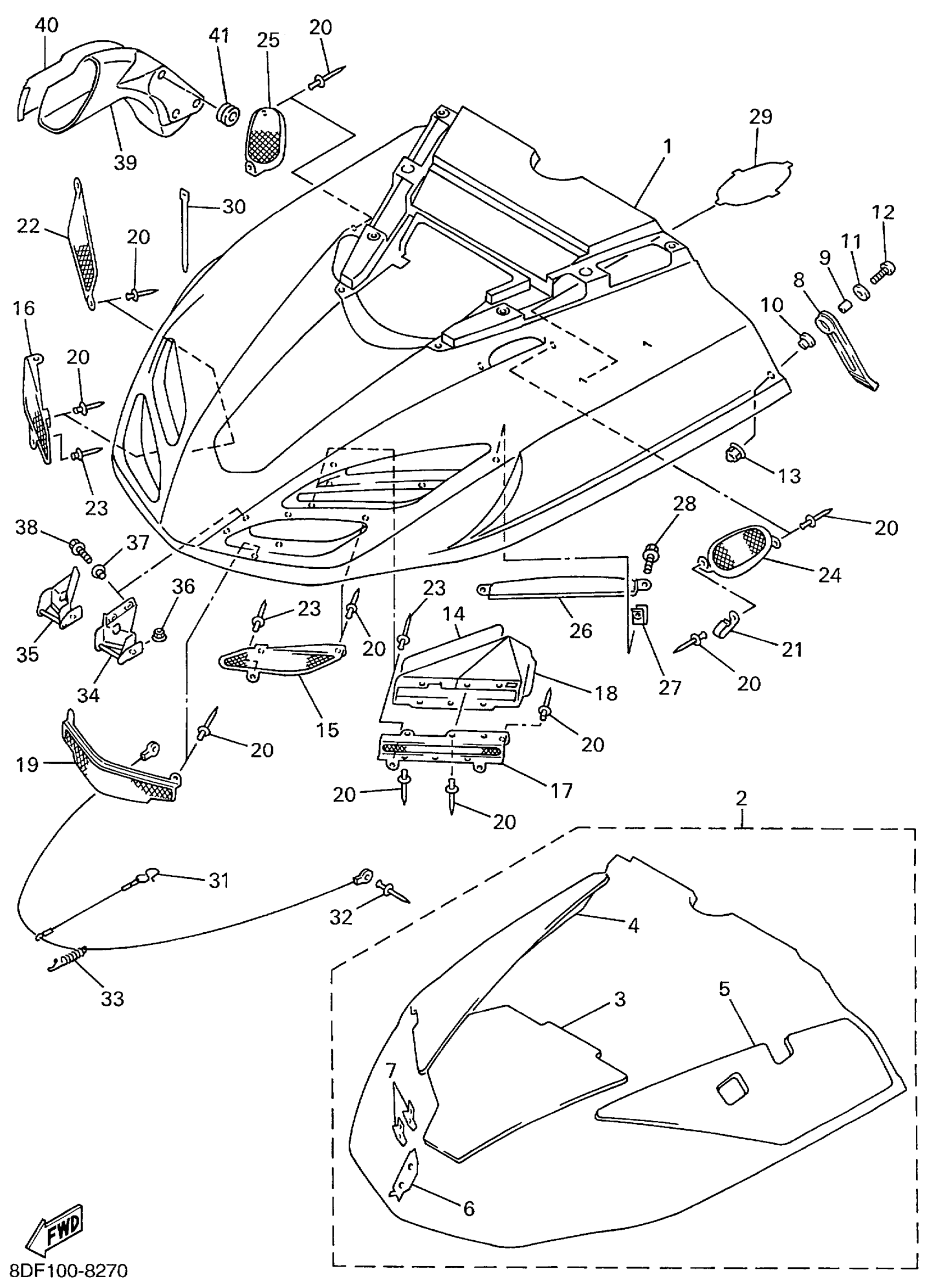

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 SHROUD Diagram

#

Description
Price

1

SHROUD

8DF-77111-00-00

Unavailable

2

LINING SET

8DF-W7726-00-00

Unavailable

3

. DAMPER, NOISE 12

8DF-77272-00-00

Unavailable

4

. DAMPER, NOISE 13

8DF-77273-00-00

Unavailable

5

. DAMPER, NOISE 16

8DF-77276-00-00

Unavailable

6

TAPE 1

8DF-7717E-00-00

$3.57

7

TAPE 3

8DF-7717G-00-00

$3.57

8

BODY, LATCH 1

8V0-77171-00-00

$18.37

9

COLLAR (420)

90387-06241-00

$6.18

10

C0LLAR

90387-062M9-00

$6.60

11

WASHER, PLATE

90201-06557-00

$2.75

12

SCREW, BINDING

98907-06025-00

$6.18

13

NUT, CROWN(1FN)

90176-06055-00

$3.89

14

LINING, SHROUD 6

8DF-77266-00-00

$10.22

15

LOUVER 1

8DF-77131-00-00

$44.38

16

LOUVER 2

8DF-77132-00-00

Unavailable

17

LOUVER 3

8DF-77133-00-00

Unavailable

18

DUCT, COOLER

8DF-21851-00-00

$50.23

19

LOUVER 4

8CR-77134-00-00

Unavailable

20

RIVET, BLIND(41R)

90267-48104-00

$2.63

21

CLAMP(51Y)

90465-08277-00

$9.43

22

LOUVER 4

8DF-77134-00-00

Unavailable

23

RIVET, BLIND(8CJ)

90267-48182-00

$1.78

24

LOUVER 5

8DF-77109-00-00

Unavailable

25

LOUVER 6

8DF-77108-00-00

$43.45

26

PLATE 1

8DF-77185-01-00

Unavailable

27

NUT, SPRING(4ES)

90183-06069-00

$5.93

28

BOLT, FLANGE

95817-06016-00

$1.49

29

PLATE 2

8DF-77186-00-00

Unavailable

30

CLAMP

90464-13077-00

$6.68

31

STOPPER, SHROUD

8CR-77118-00-00

Unavailable

32

RIVET, BLIND

90267-48018-00

Unavailable

33

CLAMP, ROD

89A-77159-00-00

$9.75

34

HINGE ASSY

8DF-77140-00-00

$39.05

35

HINGE ASSY 2

8DF-7714A-00-00

Unavailable

36

NUT, FLANGE(4MV)

95707-06500-00

$0.78

37

COLLAR (8G8)

90387-06681-00

$6.62

38

BOLT, FLANGE

95817-06016-00

$1.49

39

DUCT

8DF-77194-00-00

Unavailable

40

SHIELD, HEAT

8DF-2199H-00-00

Unavailable

41

GROMMET (431)

90480-14052-00

$4.40
