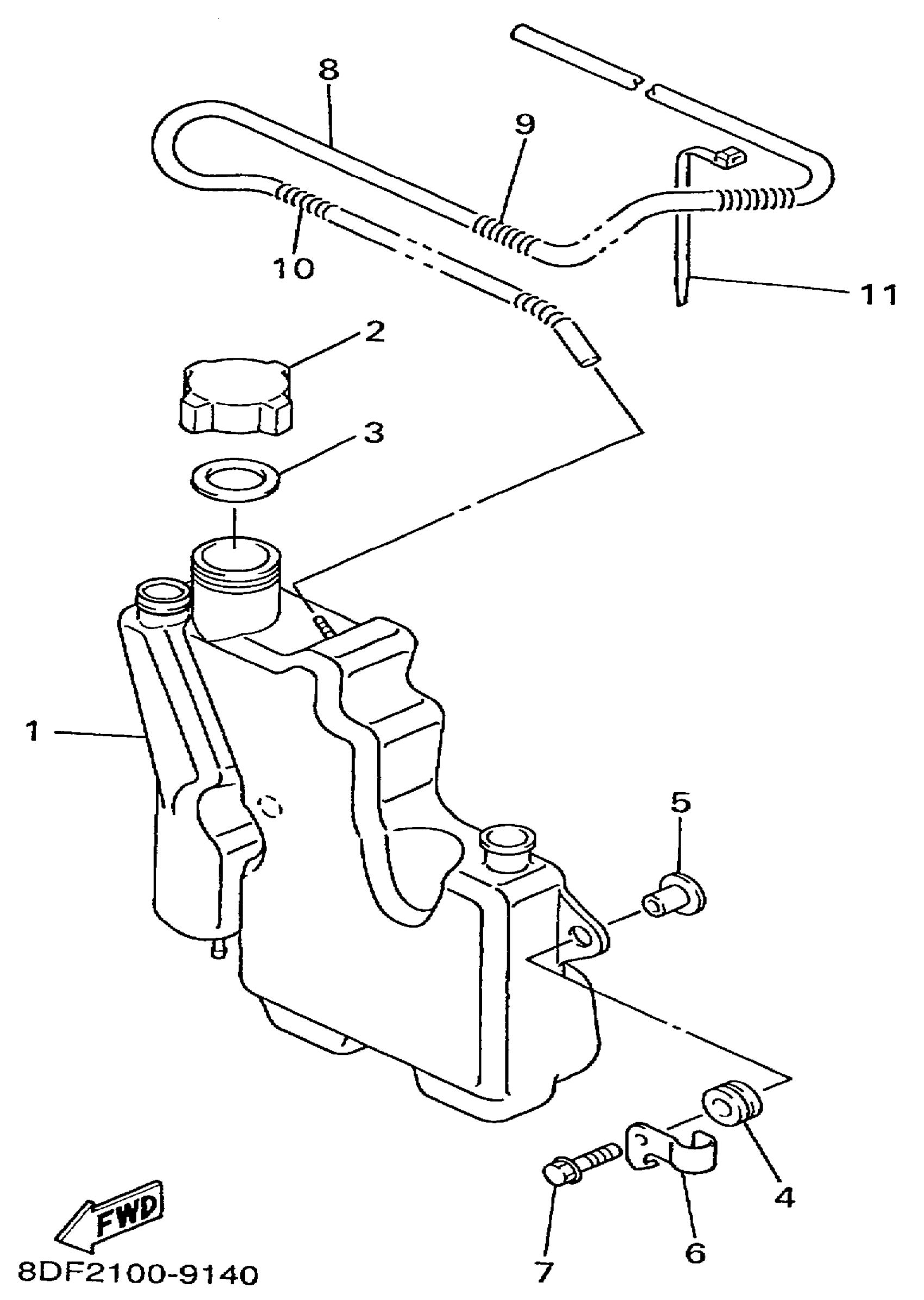

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8DJ-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$25.12

3

GASKET, TANK (867)

90430-31003-00

$7.77

4

GROMMET 839774310000

90480-14023-00

$4.74

5

COLLAR(52E)

90387-063G3-00

$6.29

6

CLAMP

90462-08244-00

$22.34

7

BOLT, FLANGE

95817-06025-00

$1.46

8

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

9

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

10

SPRING, COMPRESSION(3JK)

90501-101J5-00

Unavailable

11

CLAMP(4FM)

90464-15195-00

$2.77
