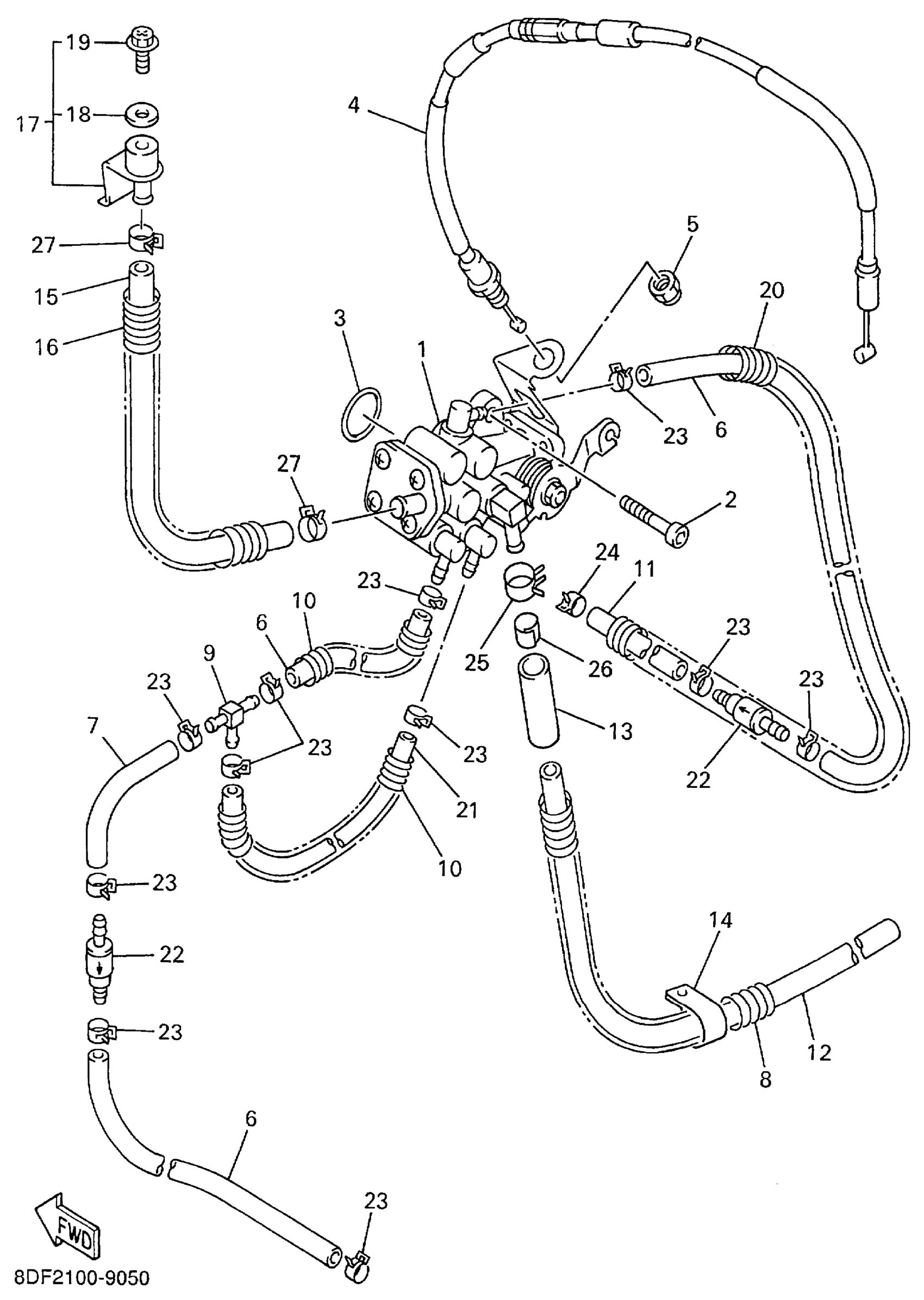

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8DN-13100-00-00

Unavailable

2

BOLT,SOCKET

91317-05014-00

$6.69

3

O-RING(3SB)

93210-20712-00

$3.91

4

PUMP CABLE ASSEMBLY

8DF-26320-00-00

Unavailable

5

NUT, NYLON

95717-08300-00

$2.57

6

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$9.15

7

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$9.15

8

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

9

. JOINT

8H0-24379-00-00

Unavailable

10

SPRING, COMPRESSION

90501-06028-00

Unavailable

11

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$9.15

12

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$16.89

13

HOSE

90445-136E2-00

Unavailable

14

CLAMP

90462-08237-00

$11.88

15

HOSE

91A30-07036-00

Unavailable

16

SPRING, COMPRESSION(1YU)

90501-061E8-00

$11.06

17

BOLT, BREATHER

8DF-13185-00-00

$35.97

18

. GASKET, BREATHER BOLT

8DF-13187-00-00

Unavailable

19

BOLT 1

8DF-13573-00-00

$3.54

20

SPRING, COMPRESSION(3JK)

90501-101J5-00

Unavailable

21

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$9.15

22

CHECK VALVE

8CH-1316A-00-00

$39.07

23

CLIP (2A6)

90468-02025-00

$7.02

24

CLIP(42X)

90467-07093-00

$1.72

25

CLIP (8A1)

90467-09026-00

$2.72

26

CLIP (2A6)

90468-02078-00

$5.80

27

CLIP (7K7)

90467-11044-00

$5.10
