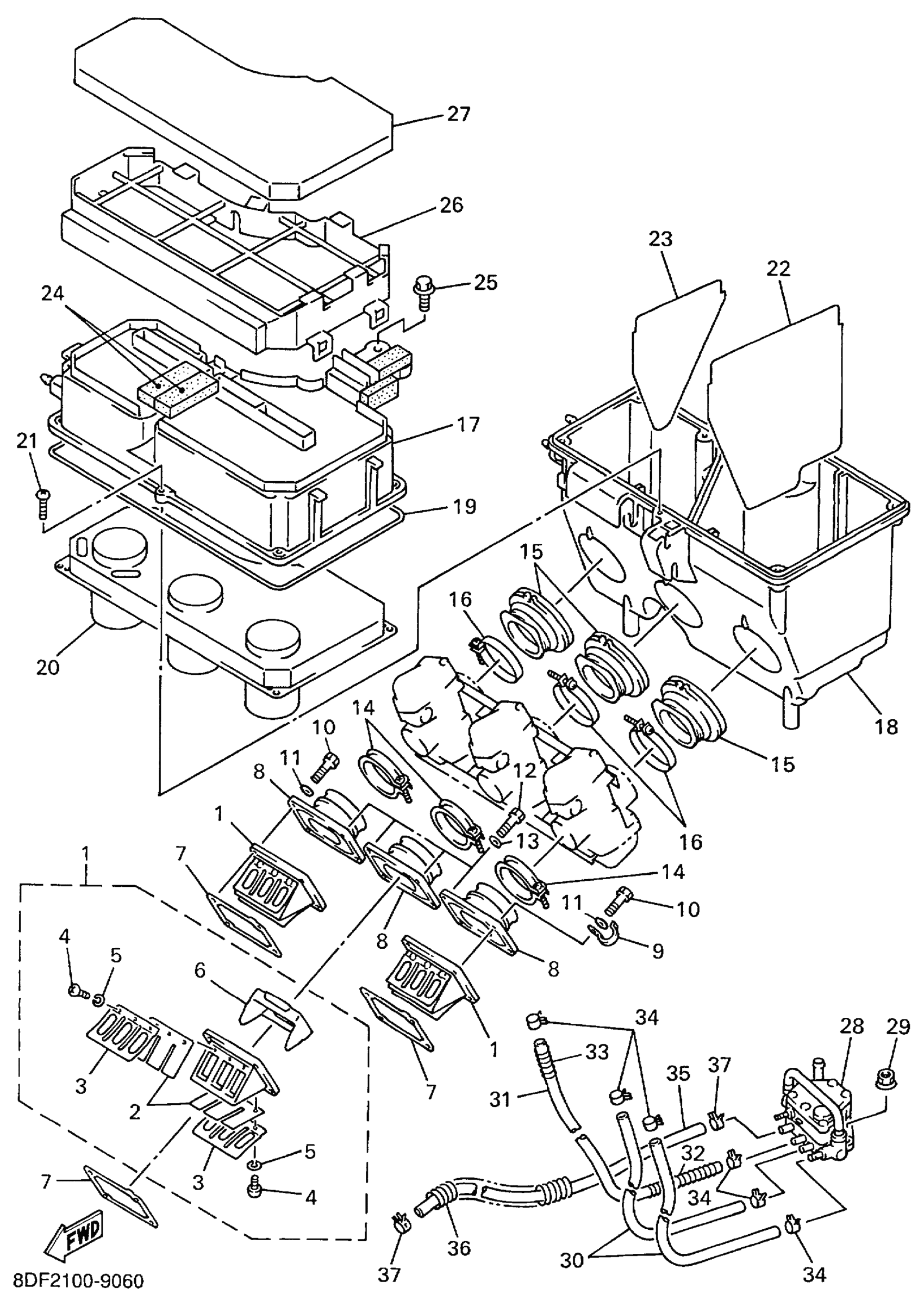

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

8DF-13610-01-00

Unavailable

2

REED, VALVE

2KM-13613-01-00

$16.17

3

. STOPPER, REED VALVE

8DF-13616-00-00

Unavailable

4

SCREW, PAN HEAD(78G)

98580-03006-00

$5.20

5

WASHER, SPRING

92990-03100-00

$6.17

6

. SPACER, REED VALVE

8DF-13625-00-00

Unavailable

7

GASKET, VALVE SEAT

8DF-13621-00-00

$7.71

8

MANIFOLD, INTAKE

8EK-13555-00-00

Unavailable

9

CLAMP (4G0)

90462-08078-00

$5.17

10

BOLT, HEXAGON

97017-06025-00

$2.98

11

WASHER(6TA)

92907-06600-00

$0.78

12

BOLT, HEXAGON

97017-06025-00

$2.98

13

WASHER(6TA)

92907-06600-00

$0.78

14

BAND

86M-13575-00-00

$16.45

15

JOINT, AIR CLEANER 1

8DF-14453-01-00

$26.23

16

HOSE CLAMP ASSY

90450-53008-00

$7.97

17

SILENCER, INTAKE 1

8DF-14431-01-00

Unavailable

18

SILENCER, INTAKE 2

8DF-14441-01-00

Unavailable

19

SEAL

51Y-14462-00-00

$11.61

20

. PLATE

8DF-14477-00-00

Unavailable

21

SCREW, TAPPING(82M)

90167-05043-00

$5.62

22

. PLATE, SIDE 1

8DF-1445F-00-00

Unavailable

23

. PLATE, SIDE 2

8DF-1445G-00-00

Unavailable

24

DAMPER

8DF-14425-01-00

Unavailable

25

BOLT, WITH WASHER(3FC)

90119-06163-00

$7.80

26

GUIDE

8DF-14458-00-00

Unavailable

27

ELEMENT, AIR CLEANER

8DF-14451-00-00

$26.92

28

FUEL PUMP ASSY

8DF-24410-00-00

$183.54

29

NUT, FLANGE(4MV)

95707-06500-00

$0.78

30

HOSE (L180)

90445-094K7-00

$3.45

31

HOSE

8DF-14294-00-00

Unavailable

32

SPRING, COMPRESSION

90501-085L6-00

$3.78

33

SPRING, COMPRESSION

90501-085L7-00

Unavailable

34

CLIP (8A1)

90467-09026-00

$2.72

35

HOSE (L400)

90445-116K9-00

$19.08

36

SPRING, COMPRESSION(3JK)

90501-101J5-00

Unavailable

37

CLIP (7K7)

90467-11044-00

$5.10
