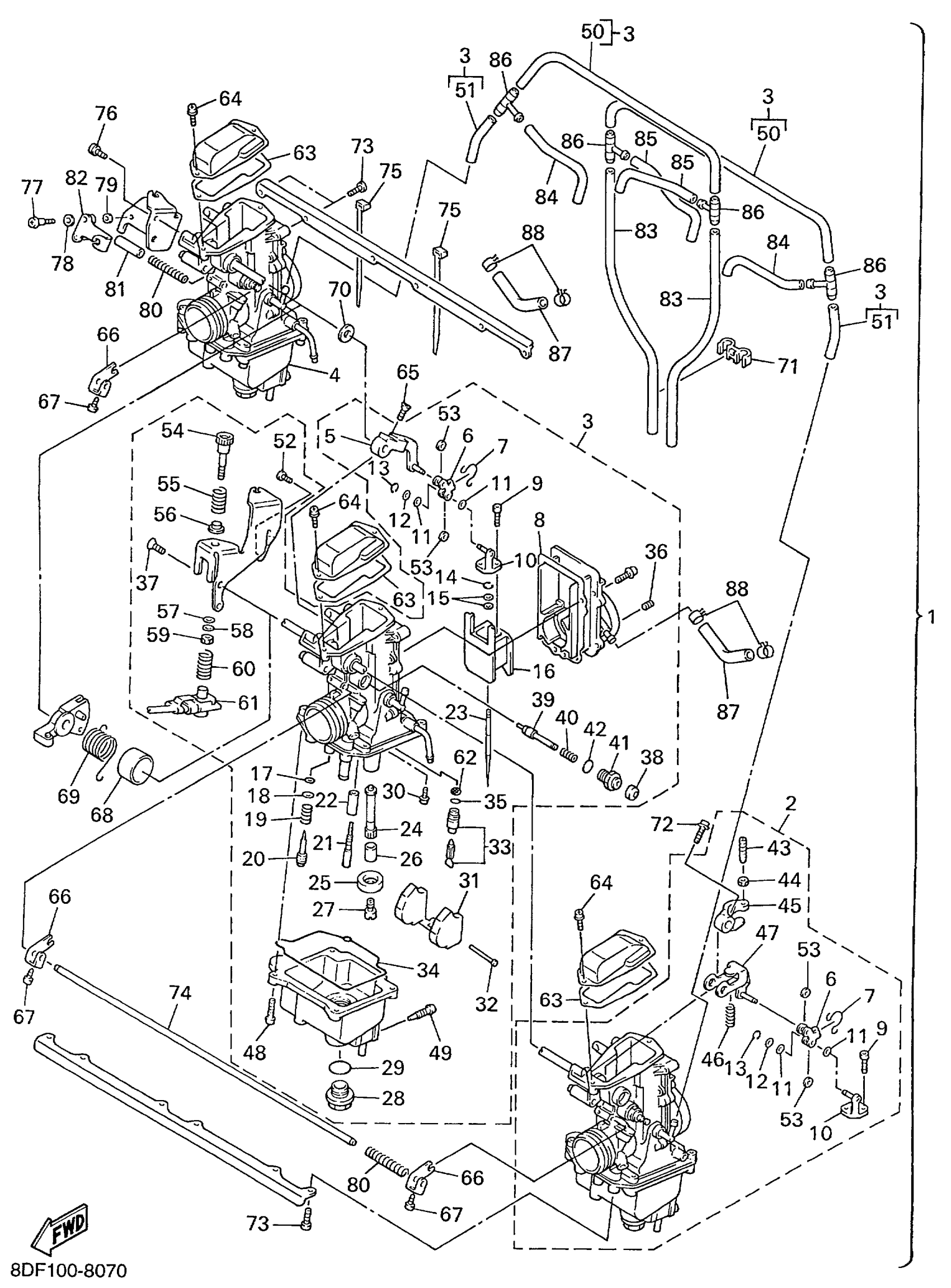

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

8DN-14100-01-00

Unavailable

2

. CARBURETOR ASSEMBLY 1

8DN-14101-01-00

Unavailable

3

CARBURETOR ASSY 2

8DN-14102-01-00

Unavailable

4

CARBURETOR ASSY 3

8DN-14103-01-00

Unavailable

5

BRACKET 2

89A-14292-00-00

$96.22

6

PLATE

89A-14243-00-00

$69.11

7

CLIP

89A-14137-00-00

$3.23

8

GASKET

89A-14199-00-00

$24.78

9

BOLT,SOCKET

91317-03012-00

$0.71

10

CONNECTOR

89A-14188-00-00

$27.40

11

GASKET

3GF-14126-00-00

$0.63

12

GASKET

620-14198-00-00

$3.49

13

CLIP

3MA-14937-00-00

$0.54

14

CLIP

3FA-14137-00-00

$6.80

15

WASHER

8AB-14227-00-00

$3.54

16

.. VALVE, THROTTLE 1

89A-14112-25-00

Unavailable

17

O-RING, PILOT SCREW

3H1-14147-00-00

$7.51

18

WASHER, PILOT SCREW

3H1-14962-00-00

$6.43

19

SPRING

5K7-14134-00-00

$10.34

20

SCREW, ADJ.

89A-14565-00-00

$17.83

21

.... JET, PILOT (# 375)

3H1-14142-37-00

Unavailable

21

JET, PILOT (# 40)

3H1-14142-40-00

$11.71

21

JET, PILOT (# 42.5)

3H1-14142-42-00

$12.27

21

JET, PILOT (# 45)

3H1-14142-45-00

$11.48

21

JET, PILOT (# 47.5)

3H1-14142-47-00

$14.75

21

JET, PILOT (# 50)

3H1-14142-50-00

$14.25

21

JET, PILOT (# 52.5)

3H1-14142-52-00

$13.06

21

JET, PILOT (# 55)

3H1-14142-55-00

$14.75

22

PIPE

89A-14996-00-00

$12.62

23

.. NEEDLE

8BU-14116-26-00

Unavailable

24

.. NOZZLE, MAIN

8CH-14141-56-00

Unavailable

25

WASHER, MAIN JET

1LX-14153-00-00

$19.94

26

RING

89A-14194-00-00

$15.54

27

JET, MAIN (#135)

3G2-14231-27-00

$10.60

27

JET, MAIN (#140)

3G2-14231-28-00

$11.09

27

JET, MAIN (#145)

3G2-14231-29-00

$11.83

27

JET, MAIN (#150)

3G2-14231-30-A0

$10.72

27

JET,MAIN #152.5

3G2-1423A-81-00

$18.31

27

JET,MAIN #132.5

3G2-1423A-77-00

$12.17

27

JET,MAIN #137.5

3G2-1423A-78-00

$10.57

27

JET,MAIN #142.5

3G2-1423A-79-00

$8.02

27

JET,MAIN #147.5

3G2-1423A-80-A0

$10.52

27

JET, MAIN(#133.8)

3G2-1423E-53-00

$11.47

27

JET, MAIN (#136.3)

3G2-1423E-54-00

Unavailable

27

JET, MAIN (#138.8)

3G2-1423E-55-00

$12.09

27

JET, MAIN (#141.3)

3G2-1423E-56-00

$10.45

27

JET MAIN (#143.8)

3G2-1423E-57-00

$12.58

27

JET, MAIN (#146.3)

3G2-1423E-58-00

$11.71

27

JET, MAIN (#146.3)

3G2-1423E-58-00

$11.71

27

JET, MAIN #148.8

3G2-1423E-59-00

$11.08

27

JET, MAIN (#151.3)

3G2-1423E-60-00

$11.98

28

PLUG, SCREW

500-14115-00-00

$25.29

29

O-RING (541)

558-14147-00-00

$7.54

30

SCREW

2LN-14565-00-00

$5.50

31

FLOAT

1UY-14185-00-00

$92.40

32

PIN, FLOAT

537-14186-00-00

$7.28

33

NEEDLE VALVE ASSY

1AE-14190-13-00

$40.38

34

O-RING

89A-14147-00-00

$13.15

35

O-RING

8F2-14147-00-00

$2.83

36

JET, AIR (#1.0)

239-14172-10-00

$9.08

37

SCREW,FLAT

98707-05008-00

Unavailable

38

. COVER, PLUNGER CAP

302-14173-00-00

Unavailable

39

. PLUNGER, STARTER

4G0-14171-00-00

Unavailable

40

SPRING, PLUNGER

1AW-14135-00-00

$2.95

41

. CAP, PLUNGER

1FN-14174-00-00

Unavailable

42

O-RING

1AE-14147-00-00

$21.34

43

SCREW

89A-14216-00-00

$2.71

44

NUT, HEXAGON SMALL

95317-05700-00

$6.18

45

. LEVER

89A-14276-00-00

Unavailable

46

SPRING

89A-14286-00-00

$2.71

47

. LEVER, STARTER

89A-14905-00-00

Unavailable

48

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.78

49

PLUG, DRAIN

12R-14191-00-00

$14.25

50

. PIPE

84M-14197-00-00

Unavailable

51

. PIPE 1

8CH-14348-00-00

Unavailable

52

SCREW, PAN HEAD (E56)

98580-04010-00

$6.17

53

RING

3MA-14918-00-00

$3.74

54

SCREW, THROTTLE

8CC-14122-00-00

$30.68

55

SPRING

8X0-14500-00-00

$17.91

56

RING

8X0-14184-00-00

$20.43

57

WASHER, PLUG SCREW

22F-14117-00-00

$6.38

58

. WASHER

1UF-14952-00-00

Unavailable

59

NUT

89A-14594-00-00

$6.80

60

SPRING, THROTTLE STOP

8X0-14133-00-00

$15.40

61

SWITCH, CARBURETOR

87S-8259A-01-00

$73.57

62

NET, FILTER

1J7-14994-00-00

$21.52

63

GASKET

89A-14198-00-00

$8.70

64

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.07

65

. SCREW, FLAT HEAD (98702-04014-00 )

6K8-14523-10-00

Unavailable

66

. LEVER COMP. 1

89A-14208-00-00

Unavailable

67

SCREW

11H-14991-09-00

$6.46

68

. COLLAR

89A-14264-00-00

Unavailable

69

. SPRING

8CH-14589-00-00

Unavailable

70

. WASHER

3H1-14227-00-00

Unavailable

71

CLIP

87M-14137-00-00

$11.91

72

SCREW, PAN HEAD

98517-04016-00

$6.18

73

SCREW, PAN

98517-05012-00

$3.91

74

. SHAFT, STARTER LEVER

8CH-14978-00-00

Unavailable

75

CLIP, PIPE

35H-14139-00-00

$4.68

76

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.52

77

. PLUG, SCREW

22F-14115-00-00

Unavailable

78

WASHER, PLUG SCREW

22F-14117-00-00

$6.38

79

. WASHER

3FV-14962-00-00

Unavailable

80

. SPRING, PLUNGER

1AE-14135-00-00

Unavailable

81

. CAP

89A-14118-00-00

Unavailable

82

. LEVER

89A-14588-00-00

Unavailable

83

. PIPE

8A7-14197-00-00

Unavailable

84

HOSE

89A-14987-00-00

$12.62

85

. PIPE

8F2-14197-00-00

Unavailable

86

NIPPLE

4N0-14251-00-00

$8.91

87

. HOSE

8CH-14987-10-00

Unavailable

88

CLIP (3G0)

90467-10039-00

$6.57
