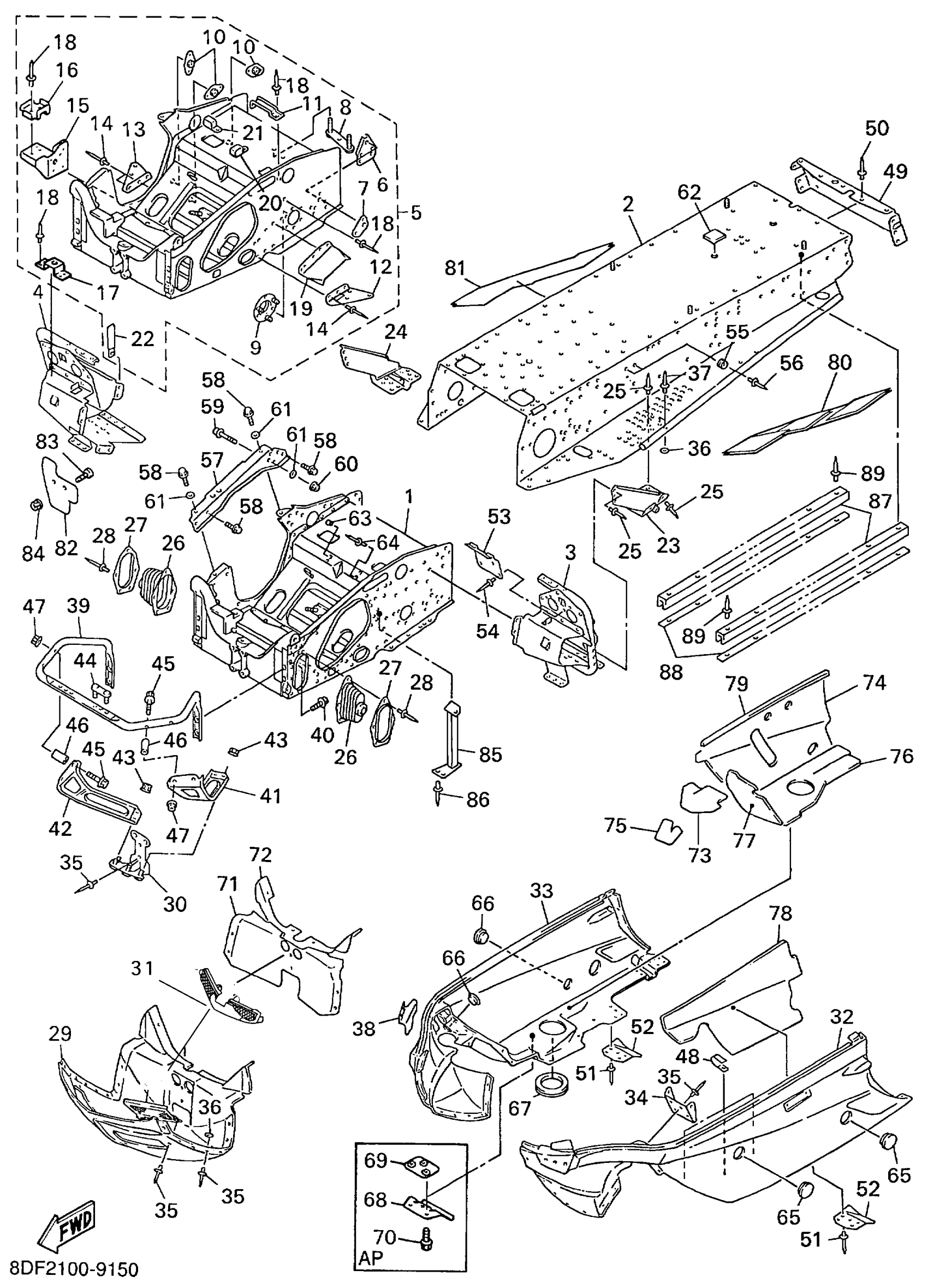

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8DF-21940-09-00

$858.99

2

REAR FRAME COMP.

8DF-21950-07-00

Unavailable

3

FOOTREST COMP. 1

8DF-21960-09-00

Unavailable

4

FOOTREST COMP. 2

8DF-21970-09-00

Unavailable

5

FRAME CONNECTION K

8DF-W2195-01-00

Unavailable

6

BRACKET, MAIN TRACK 1

8CR-21943-01-00

$3.54

7

BRACKET, MAIN TRACK 2

8CR-21953-00-00

$1.78

8

BRACKET 3

8CR-2196F-00-00

$5.80

9

. HOUSING, REINF SUB-ASSY (LH)

8CR-21920-00-00

Unavailable

10

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

11

CLAMP, FUEL PIPE

8CR-21977-00-00

$3.29

12

PANEL, SUB FRAME 6

8CR-21917-00-00

$20.57

13

PANEL, SUB-FRAME 7

8CR-21918-00-00

$20.57

14

RIVET, BLIND

90267-48016-00

$7.85

15

. STAY, MUFFLER

8DF-2194J-00-00

Unavailable

16

. BRACKET, 6

8DF-2197M-00-00

Unavailable

17

. STAY, MUFFER

8DF-2194L-00-00

Unavailable

18

RIVET, BLIND(8CR)

90267-47186-00

$2.31

19

COVER 2

8CR-2198G-00-00

$16.65

20

CLAMP(83R)

90461-08113-00

$10.48

21

CLAMP(8CR)

90461-06142-00

Unavailable

22

CLAMP

90462-10236-00

$8.97

23

PIPE, PIVOT 1

8DF-21941-00-00

Unavailable

24

PIPE, PIVOT 2

8DF-21951-00-00

$53.55

25

RIVET

90269-07080-00

$3.37

26

COVER 1

8CR-2198F-00-00

Unavailable

27

PLATE, STRG BRACKET 1

8CR-2195E-00-00

Unavailable

28

RIVET, BLIND

90267-47197-00

$1.56

29

PANEL, SUB FRAME 1

8CR-21912-11-00

Unavailable

30

PLATE, BACK UP

8CR-23788-11-00

Unavailable

31

STAY 4

8CR-77128-00-00

Unavailable

32

FRAME, UNDER 1

8DF-2196A-11-00

Unavailable

33

FRAME, UNDER 2

8DF-2196E-11-00

Unavailable

34

BRACKET, GUARD FITTING

8CR-21972-00-00

Unavailable

35

RIVET, BLIND

90267-48018-00

Unavailable

36

WASHER PLATE 829771780000

90201-05033-00

$7.09

37

RIVET, BLIND(8CH)

90267-47187-00

$1.84

38

BRACKET, COOLER 1

8DF-2194V-02-00

Unavailable

39

BUMPER, FRONT 2

8CR-77512-00-00

$89.51

40

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

41

BRACKET, FRONT

8CR-21949-10-00

$20.51

42

BRACKET, FRONT BUMPER

8CR-21959-10-00

Unavailable

43

NUT, SELF-LOCKING

90185-08169-00

$7.09

44

BRACKET, 5

8CR-2196M-00-00

$4.98

45

BOLT, FLANGE

95817-08040-00

$5.43

46

COLLAR(8CR)

90387-0810F-00

Unavailable

47

NUT, FLANGE(JN5)

95707-08500-00

$1.49

48

CLAMP(4MX)

90465-06376-00

$7.08

49

REINEFORCEMENT, FRAME REAR 1

8CR-21923-02-00

Unavailable

50

RIVET, BLIND(8CR)

90267-47186-00

$2.31

51

RIVET, BLIND

90267-48018-00

Unavailable

52

PROTECTOR, FRAME

8CH-21978-00-00

Unavailable

53

HOOK

8CR-21973-00-00

Unavailable

54

RIVET, BLIND(8CR)

90267-47186-00

$2.31

55

BUTT0N

81K-2471F-00-00

Unavailable

56

RIVET, BLIND(81K)

90267-40135-00

Unavailable

57

REINEFORCEMENT, FRAME REAR 1

8CR-21921-01-00

Unavailable

58

BOLT, FLANGE

95817-10020-00

$5.10

59

BOLT,FLANGE

95817-10065-00

$4.72

60

NUT, FLANGE(8AB)

95707-10500-00

$1.66

61

WASHER, PLAIN(3BM)

92907-10200-00

$3.58

62

COVER 3

8DP-2198J-00-00

Unavailable

63

PLUG (17J)

90338-10132-00

$2.63

64

RIVET, BLIND

90267-48177-00

$1.71

65

PLUG

90338-44270-00

Unavailable

66

PLUG

90338-30268-00

Unavailable

67

SPACER

8DF-21998-10-00

$23.63

68

PROTECTOR, FRAME 3

8DP-2197C-00-00

Unavailable

69

PATCH 10

8DP-21997-00-00

Unavailable

70

BOLT, FLANGE(2UJ)

95024-06016-00

$6.68

71

LINING, SHROUD 2

8CR-77262-00-00

$28.62

72

LINING, SHROUD 3

8CR-77263-00-00

Unavailable

73

LINING, SHROUD 5

8DF-77265-00-00

$14.95

74

LINING, SHROUD 7

8DF-77267-00-00

Unavailable

75

LINING,SHROUD 8

8DF-77268-00-00

$20.43

76

LINING,SHROUD 9

8DF-77269-00-00

$66.00

77

LINING, SHROUD 4

8DF-77264-00-00

Unavailable

78

DAMPER, NOISE 11

8DF-77271-00-00

Unavailable

79

TAPE, 5

8DF-7717J-00-00

Unavailable

80

EMBLEM 1

8EA-77351-00-00

Unavailable

81

EMBLEM 2

8EA-77352-00-00

Unavailable

82

COVER, TOE HOOK

8DF-2196N-00-00

Unavailable

83

SCREW, BINDING

98907-06012-00

$7.14

84

NUT, FLANGE(4MV)

95707-06500-00

$0.78

85

PROTECTOR, FRAME

8EA-2197E-00-00

Unavailable

86

RIVET, BLIND

90267-48016-00

$7.85

87

FULLGTH TUNL PRCT

SMA-8CV92-90-00

Unavailable

88

BRACKET, GUARD FITTING

8DF-21972-00-00

Unavailable

89

RIVET, BLIND

90267-47197-00

$1.56
