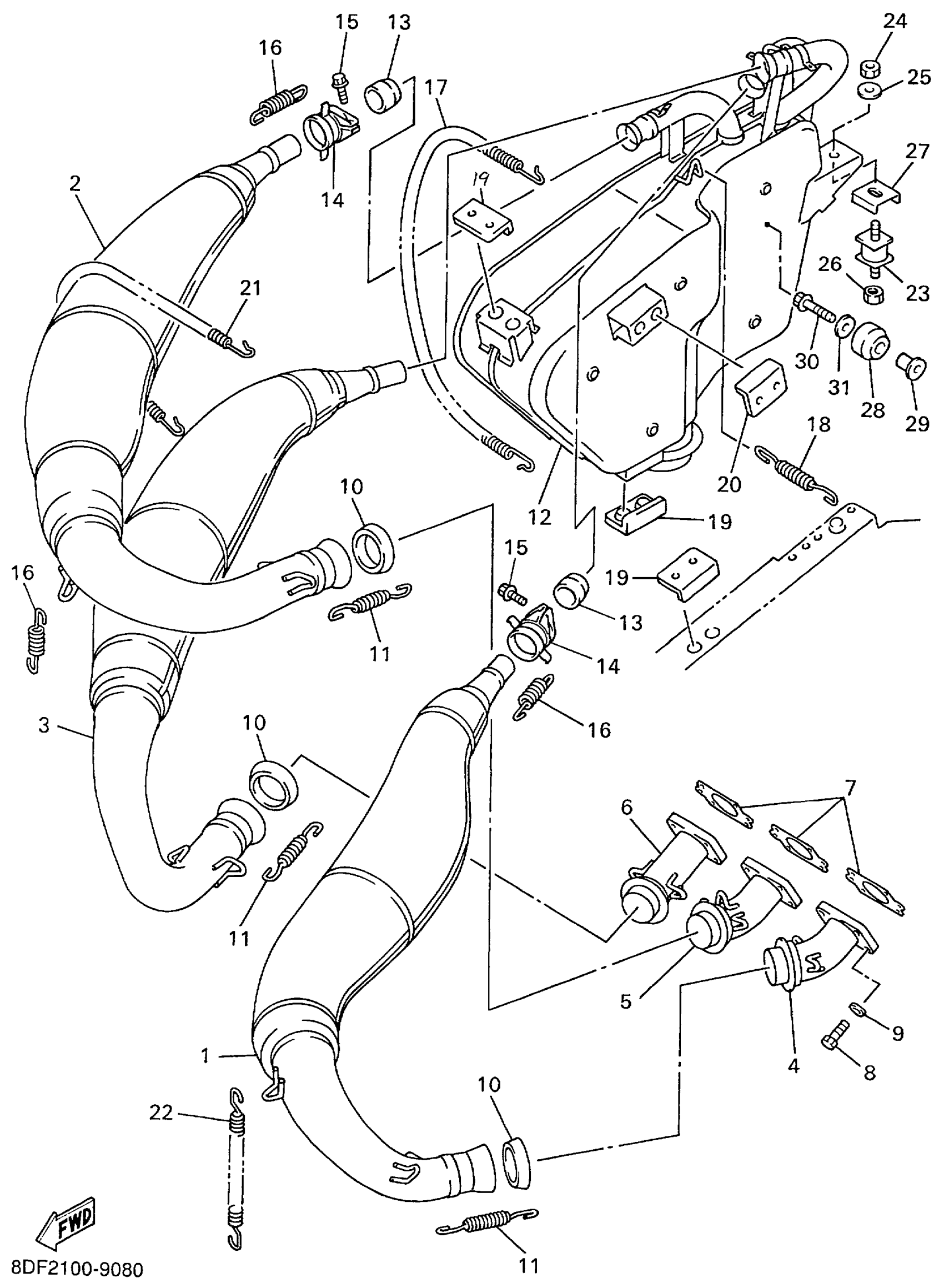

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

8DF-14610-10-00

Unavailable

2

EXHAUST PIPE ASSY 2

8DF-14620-10-00

Unavailable

3

EXHAUST PIPE ASSY 3

8DF-14630-11-00

Unavailable

4

JOINT, EXHAUST 1

8DF-14615-00-00

Unavailable

5

JOINT, EXHAUST 2

8DF-14625-00-00

Unavailable

6

JOINT, EXHAUST 3

8DF-14635-00-00

Unavailable

7

GASKET, EXHAUST PIPE

8DF-14613-00-00

$20.65

8

BOLT, HEXAGON

97017-06025-00

$2.98

9

WASHER(6TA)

92907-06600-00

$0.78

10

GASKET, EXHAUST PIPE

8DF-14623-00-00

$34.18

11

SPRING, TENSION (8R7)

90506-20272-00

$9.40

12

SECOND SILENCER, MUFFLER

8DF-14640-10-00

$504.17

13

GASKET, MUFFLER

8DF-14714-10-00

$69.91

14

JOINT, SILENCER 3

8DF-1467F-00-00

Unavailable

15

BOLT, SMALL FLANGE

95027-08020-00

$6.17

16

SPRING, TENSION (8M6)

90506-20093-00

$7.06

17

SPRING, TENSION

90506-16504-00

Unavailable

18

SPRING, TENSION (8R7)

90506-20272-00

$9.40

19

PROTECTOR, MUFFLER 2

8DF-14728-00-00

Unavailable

20

PROTECTOR, MUFFLER 2

83R-14728-01-00

$29.25

21

SPRING, TENSION

90506-16497-00

Unavailable

22

SPRING, TENSION

90506-16512-00

Unavailable

23

DAMPER, MUFFLER

8DF-14747-00-00

Unavailable

24

NUT, FLANGE(JN5)

95707-08500-00

$1.49

25

WASHER, PLATE(8AT)

90201-081R9-00

$6.32

26

NUT, SELF-LOCKING

90185-08169-00

$7.09

27

WASHER

8DF-14616-10-00

Unavailable

28

INSULATOR, MOUNTING

8DF-22891-00-00

$13.86

29

COLLAR

90387-06158-00

$6.17

30

BOLT, FLANGE

95817-06025-00

$1.46

31

WASHER

90209-06012-00

$4.71
