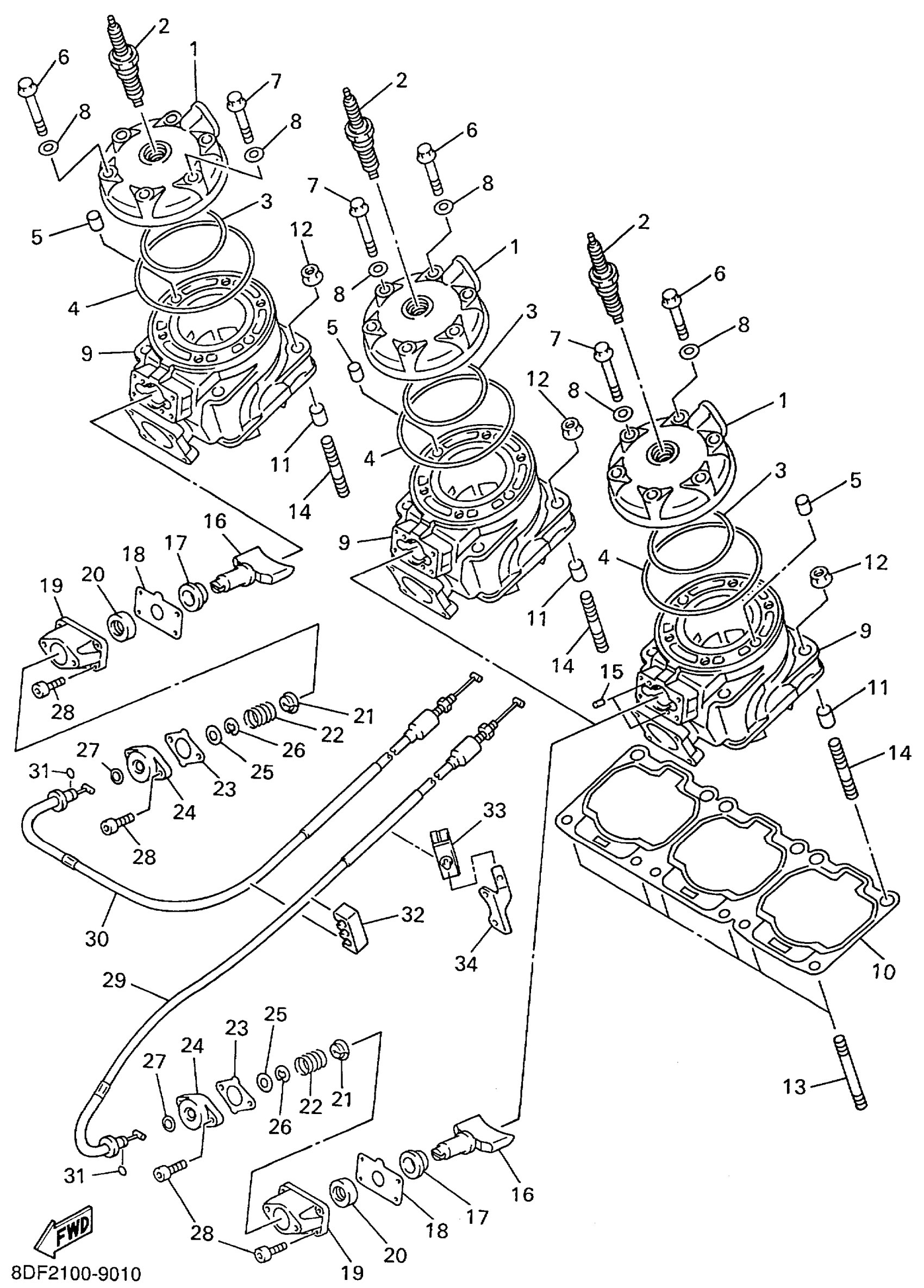

Yamaha SRX700SC (SRX700 OHLINS) 8DN1 1999 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8DN-11111-00-00

Unavailable

2

BR9ECS NGK SPLUG 10PK

BR9-ECS0P-C0-00

$7.06

3

SEAL, CYLINDER 1

8DF-11355-00-00

$10.34

4

SEAL, CYLINDER 2

8DF-11356-00-00

$12.48

5

PIN, DOWEL(3VD)

99530-10114-00

$2.23

6

BOLT, FLANGE

95817-08055-00

$2.82

7

BOLT, WASHER BASED

90105-084A1-00

$9.38

8

WASHER, PLATE

90201-080L8-00

$2.80

9

CYLINDER 1

8DN-11311-01-00

Unavailable

10

GASKET, CYLINDER

8DF-11351-00-00

$78.65

11

PIN, DOWEL

99530-14016-00

$3.20

12

NUT, FLANGE(8AB)

95707-10500-00

$1.66

13

BOLT, STUD (26H)

90116-10411-00

$11.63

14

BOLT, STUD(1JK)

90116-10506-00

$4.06

15

PIN, DOWEL (278)

93604-08071-00

$4.70

16

VALVE 1

8DN-1131A-00-00

$219.35

17

HOLDER 1

8DF-1131E-00-00

Unavailable

18

GASKET

8DF-11354-03-00

$6.80

19

HOLDER 2

8DF-1131F-01-00

$35.52

20

OIL SEAL

93109-15074-00

$11.65

21

SEAT, SPRING

8DF-11317-01-00

Unavailable

22

SPRING, COMPRESSION

90501-120L7-00

$6.98

23

GASKET

8DF-11397-10-00

$7.66

24

HOLDER 3

8DF-1131U-01-00

$28.43

25

WASHER, PLATE

90201-092U3-00

$3.78

26

CIRCLIP(53L)

99001-06600-00

$0.70

27

O-RING (1J7)

93210-09350-00

$5.82

28

BOLT, SOCKET

91317-05016-00

$2.48

29

CABLE, PULLEY 1

8DF-1133E-10-00

Unavailable

30

CABLE, PULLEY 2

8DF-1133F-10-00

Unavailable

31

O-RING (26H)

93210-06632-00

$6.68

32

CLAMP

90464-06253-00

Unavailable

33

CLAMP

90464-07262-00

$3.82

34

BRACKET

8DF-1135A-00-00

Unavailable
