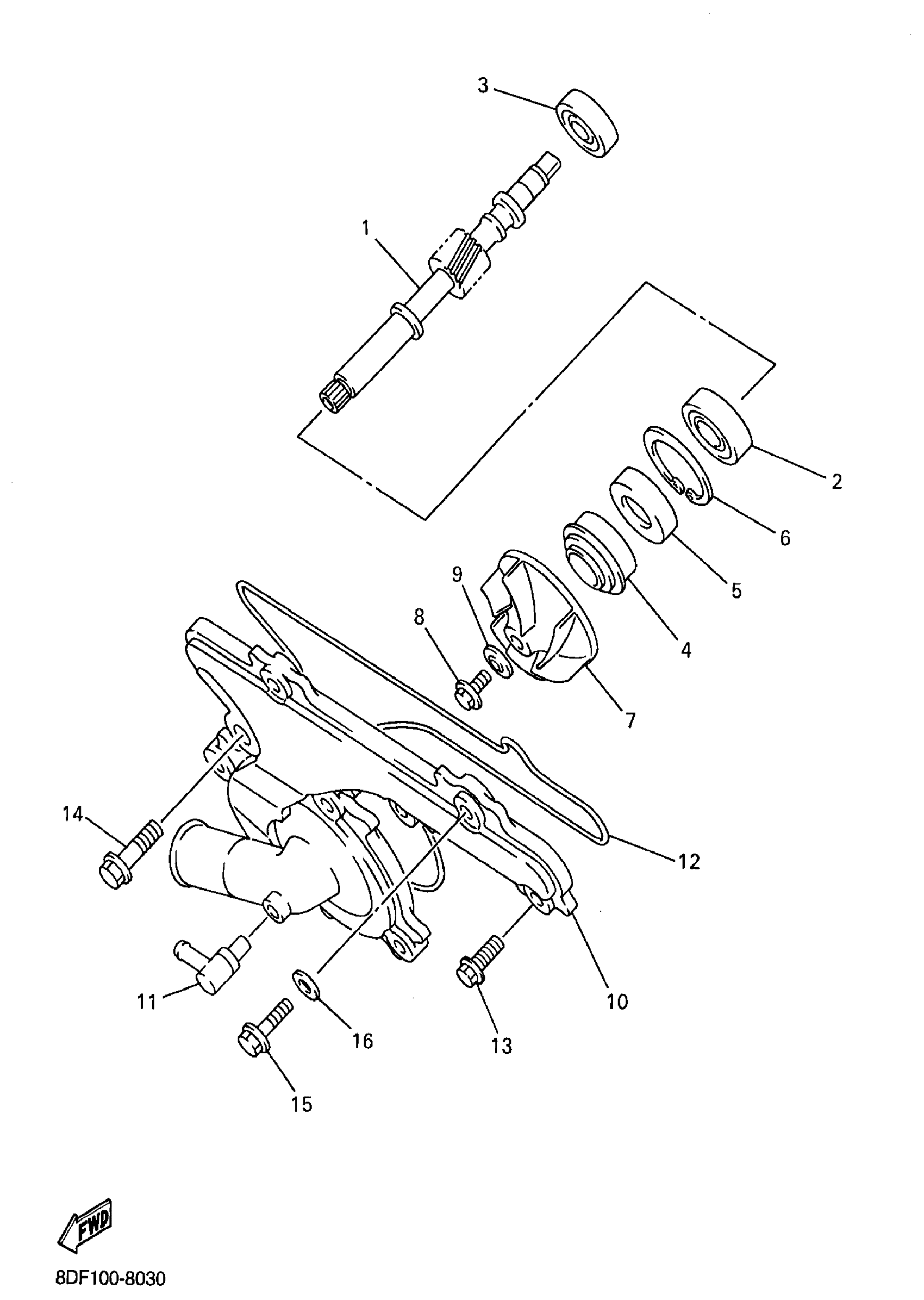

Yamaha SRX700SB (SRX700S (OHLINS FR SHOCKS)) 8DW1 1998 WATER PUMP Diagram

GEAR, IMPELLER SHAFT

8DF-12459-00-00

Unavailable

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

SEAL, MECHANICAL

11H-12438-10-00

$62.99

OIL SEAL(8CP)

93102-12461-00

$11.49

CIRCLIP (3Y1)

93420-28055-00

$9.49

IMPELLER, WATER PUMP

8CH-12451-02-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.43

WASHER, SEAL

90210-06001-00

Unavailable

COVER, HOUSING

8CH-12422-10-00

Unavailable

JOINT 1

8CH-12469-00-00

Unavailable

O-RING

8CH-12439-00-00

$55.99

BOLT, FLANGE

95817-06020-00

$3.81

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

BOLT, FLANGE

95814-06025-00

Unavailable

GASKET (4V2)

90430-06166-00

Unavailable
