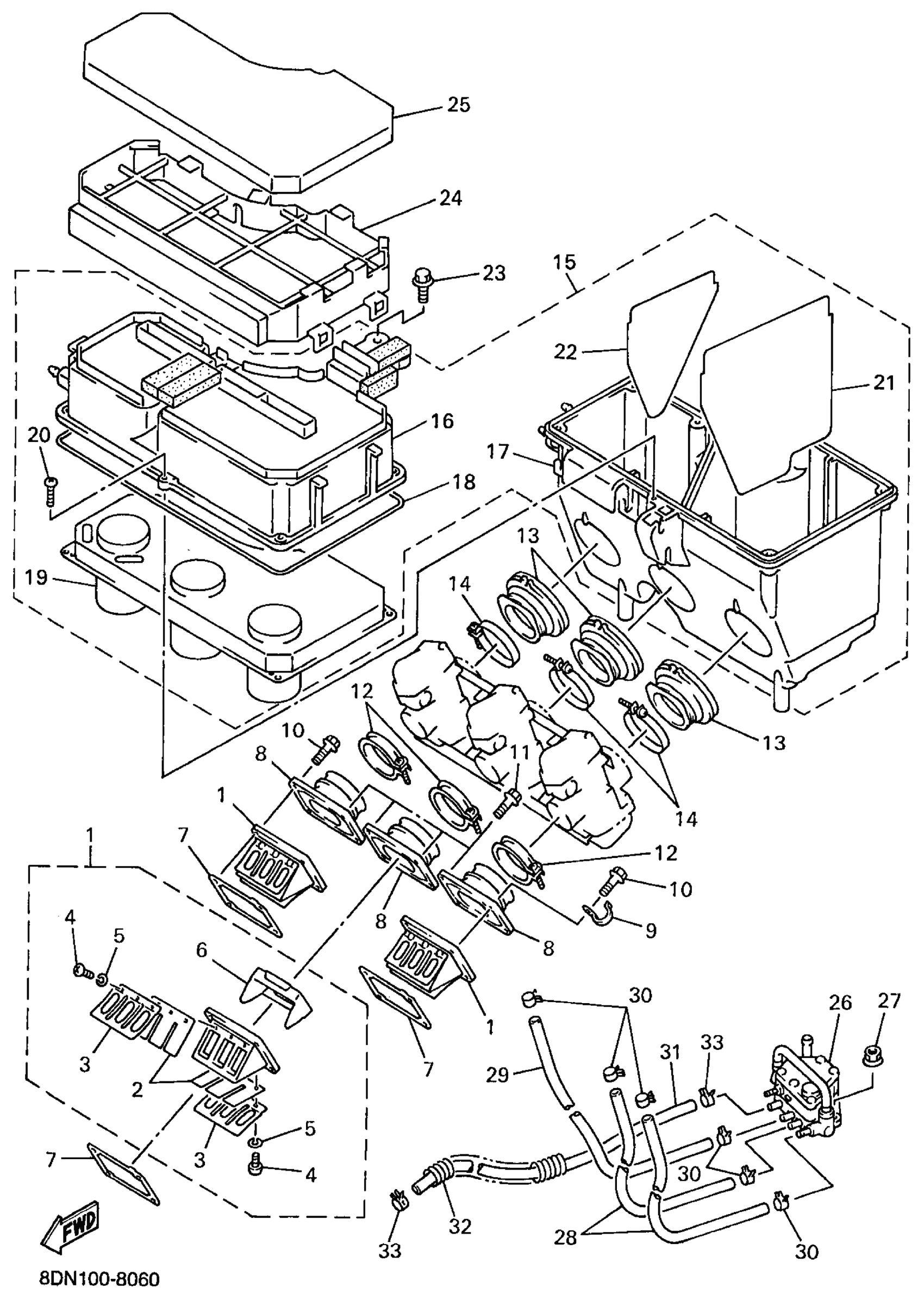

Yamaha SRX700SB (SRX700S (OHLINS FR SHOCKS)) 8DW1 1998 INTAKE Diagram
#
1
REED VALVE ASSY
8DF-13610-01-00
Unavailable
2
REED, VALVE
2KM-13613-01-00
$18.49
3
. STOPPER, REED VALVE
8DF-13616-00-00
Unavailable
4
SCREW, PAN HEAD(78G)
98580-03006-00
Unavailable
5
WASHER, SPRING
92990-03100-00
$8.49
6
. SPACER, REED VALVE
8DF-13625-00-00
Unavailable
7
GASKET, VALVE SEAT
8DF-13621-00-00
$9.99
8
MANIFOLD, INTAKE
8EK-13555-00-00
Unavailable
9
CLAMP (4G0)
90462-08078-00
$5.60
10
BOLT, FLANGE
95817-06020-00
$3.81
11
BOLT, FLANGE
95814-06025-00
Unavailable
12
BAND
86M-13575-00-00
$19.49
13
JOINT, AIR CLEANER 1
8DF-14453-01-00
$31.99
14
HOSE CLAMP ASSY
90450-53008-00
$10.49
15
SILENCER, INTAKE 1
8DF-14431-01-00
Unavailable
16
SILENCER, INTAKE 2
8DF-14441-01-00
Unavailable
17
SEAL
51Y-14462-00-00
Unavailable
18
. PLATE
8DF-14477-00-00
Unavailable
19
SCREW, TAPPING(82M)
90167-05043-00
Unavailable
20
. PLATE, SIDE 1
8DF-1445F-00-00
Unavailable
21
. PLATE, SIDE 2
8DF-1445G-00-00
Unavailable
22
DAMPER
8DF-14425-01-00
Unavailable
23
BOLT, WITH WASHER(3FC)
90119-06163-00
Unavailable
24
GUIDE
8DF-14458-00-00
Unavailable
25
ELEMENT, AIR CLEANER
8DF-14451-00-00
Unavailable
26
FUEL PUMP ASSY
8DF-24410-00-00
Unavailable
27
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
28
HOSE(7EG)
90446-07241-00
Unavailable
29
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
30
CLIP (8A1)
90467-09026-00
Unavailable
31
HOSE (L450)
90445-10144-00
Unavailable
32
SPRING, COMPRESSION(7MX)
90501-084J0-00
Unavailable
33
CLIP (3G0)
90467-10039-00
Unavailable
