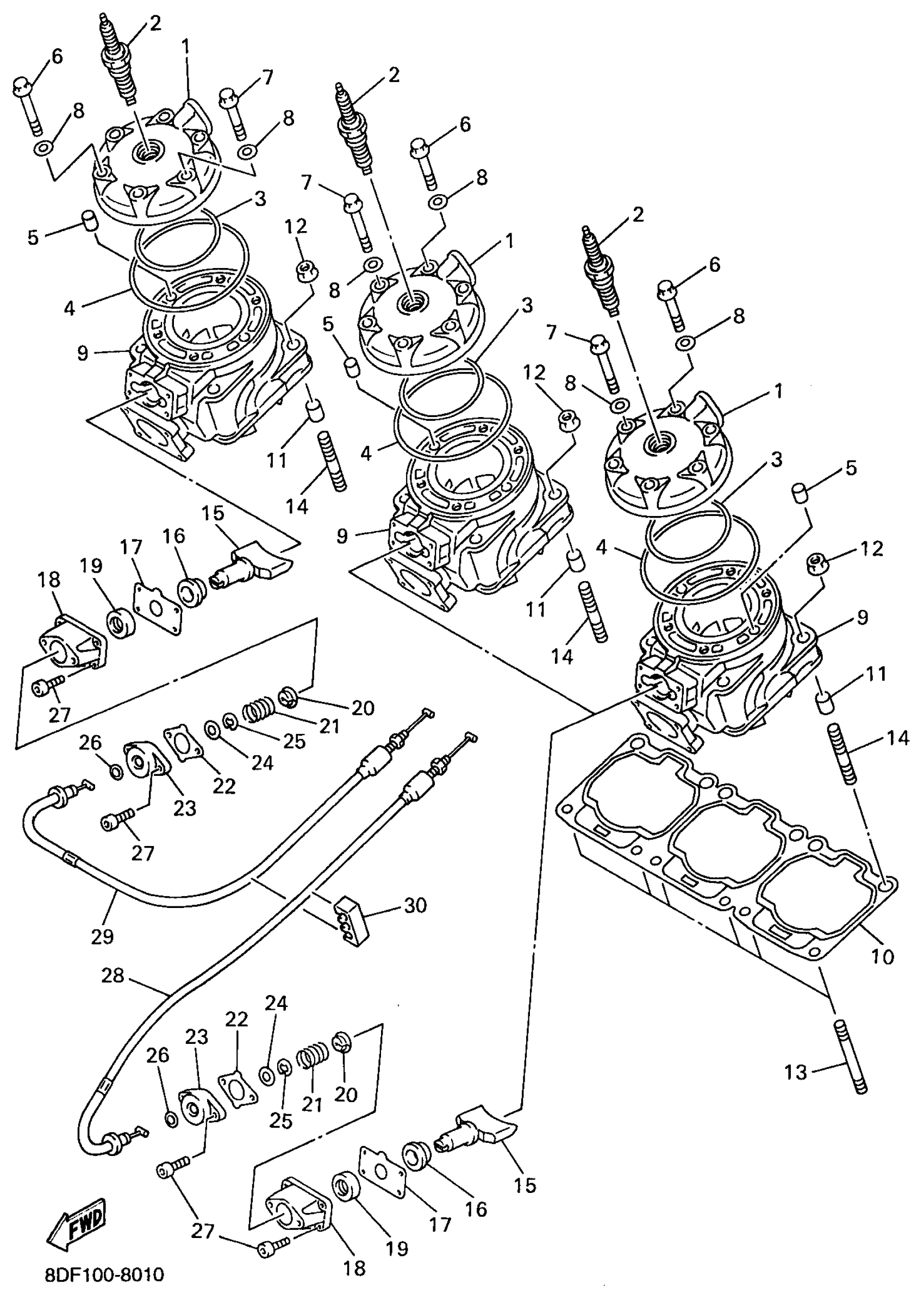

Yamaha SRX700SB (SRX700S (OHLINS FR SHOCKS)) 8DW1 1998 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8DN-11111-00-00

Unavailable

2

BR10ECS NGK SPLUG 10PK

BR1-0ECS0-00-00

Unavailable

3

SEAL, CYLINDER 1

8DF-11355-00-00

$14.49

4

O-RING(1LX)

93211-07720-00

$12.49

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

BOLT, FLANGE

95817-08055-00

$4.21

7

BOLT, WASHER BASED

90105-084A1-00

$10.49

8

WASHER, PLATE

90201-080L8-00

$4.41

9

CYLINDER 1

8DN-11311-01-00

Unavailable

10

GASKET, CYLINDER

8DF-11351-00-00

$82.99

11

PIN, DOWEL

99530-14016-00

$3.80

12

NUT, FLANGE(8AB)

95707-10500-00

$3.18

13

BOLT, STUD (26H)

90116-10411-00

$13.49

14

BOLT, STUD(1JK)

90116-10506-00

$4.77

15

VALVE 1

8DN-1131A-00-00

$230.99

16

HOLDER 1

8DF-1131E-00-00

Unavailable

17

GASKET

8DF-11354-03-00

Unavailable

18

HOLDER 2

8DF-1131F-01-00

Unavailable

19

OIL SEAL

93109-15074-00

Unavailable

20

SEAT, SPRING

8DF-11317-01-00

Unavailable

21

SPRING, COMPRESSION

90501-120L7-00

Unavailable

22

GASKET

8DF-11397-10-00

Unavailable

23

HOLDER 3

8DF-1131U-01-00

Unavailable

24

WASHER, PLATE

90201-092U3-00

Unavailable

25

CIRCLIP(53L)

99001-06600-00

Unavailable

26

O-RING (1J7)

93210-09350-00

Unavailable

27

BOLT, SOCKET

91317-05016-00

Unavailable

28

WIRE PULLEY 1

8DF-1133E-01-00

Unavailable

29

CABLE, PULLEY 2

8DF-1133F-01-00

Unavailable

30

CLAMP

90464-06253-00

Unavailable
