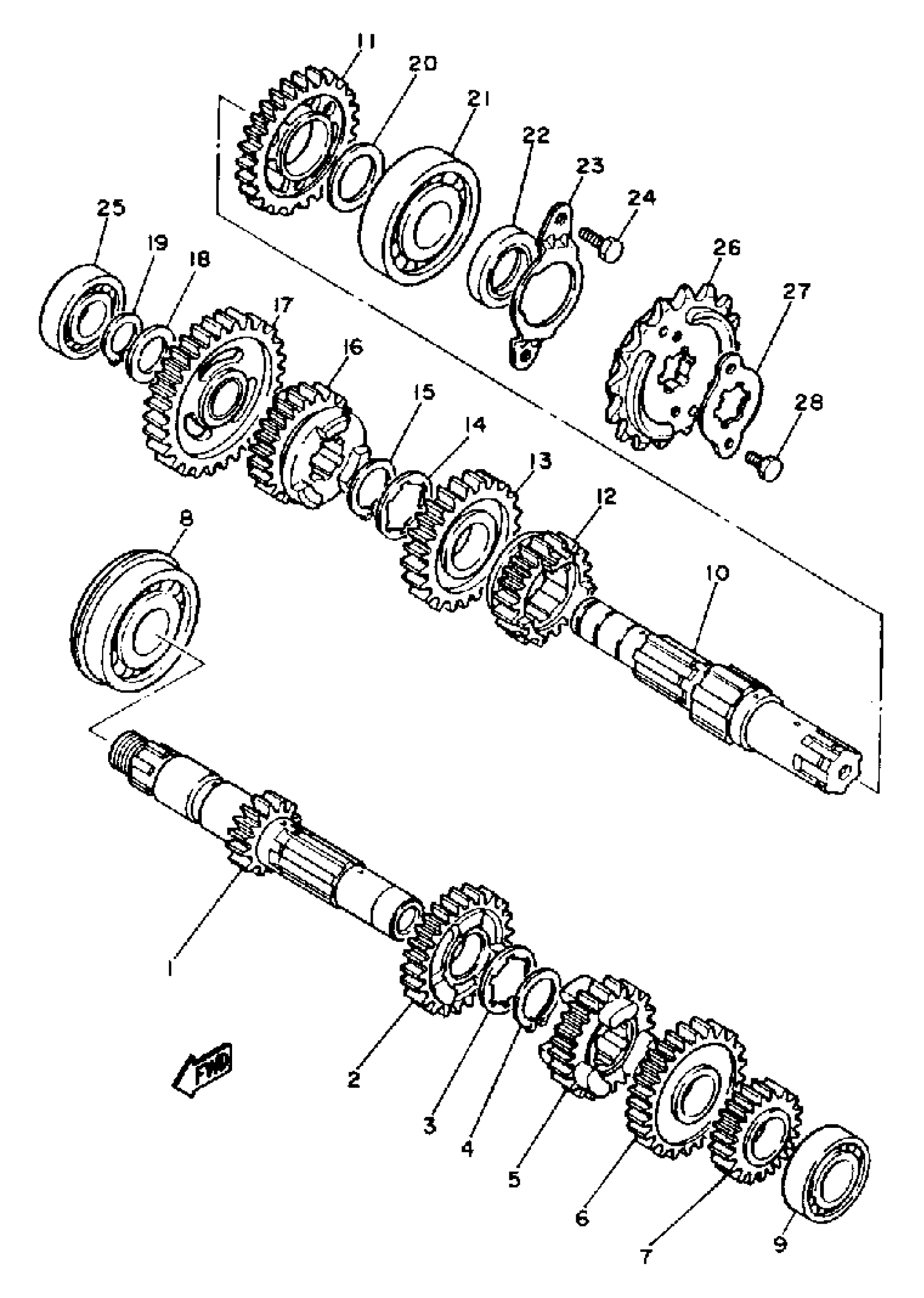

Yamaha SRX600SC (SRX600 CA) 1986 TRANSMISSION Diagram

#

Description
Price

1

. AXLE, MAIN

5Y1-17411-00-00

Unavailable

2

GEAR, 4TH PINION

34K-17141-00-00

$76.99

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION

1VJ-17131-00-00

$63.99

6

GEAR, 5TH PINION

1VJ-17151-01-00

Unavailable

7

GEAR, 2ND PINION

34K-17121-01-00

$35.99

8

BEARING (5Y1)

93306-30540-00

$71.99

9

BEARING (34L)

93306-00431-00

$41.99

10

DRIVE AXLE ASSY

34K-17402-01-00

Unavailable

11

GEAR, 2ND WHEEL

5Y1-17221-01-00

Unavailable

12

GEAR, 5TH WHEEL

2JT-17251-10-00

Unavailable

13

GEAR, 3RD WHEEL (24T)

1VJ-17231-00-00

Unavailable

14

WASHER (3J3)

90209-22191-00

$7.49

15

CIRCLIP (4L0)

93440-25084-00

$5.60

16

GEAR,4TH WHEEL

55U-17241-00-00

Unavailable

17

GEAR, 1ST WHEEL

34K-17211-00-00

Unavailable

18

WASHER PLATE 328171160000

90201-20276-00

Unavailable

19

CIRCLIP(1AR)

99009-20400-00

Unavailable

20

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

21

BEARING (5Y1)

93306-30535-00

Unavailable

22

OIL SEAL (3Y1)

93102-25226-00

Unavailable

23

PLATE, COVER

5Y1-17471-00-00

Unavailable

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

25

BEARING (5Y1)

93306-00426-00

Unavailable

26

SPROCKET, DRIVE (1JK-17461-50)

1JK-17460-00-00

Unavailable

27

HOLDER, SPROCKET

3Y1-17456-00-00

Unavailable

28

BOLT(3JP)

97017-06010-00

Unavailable
