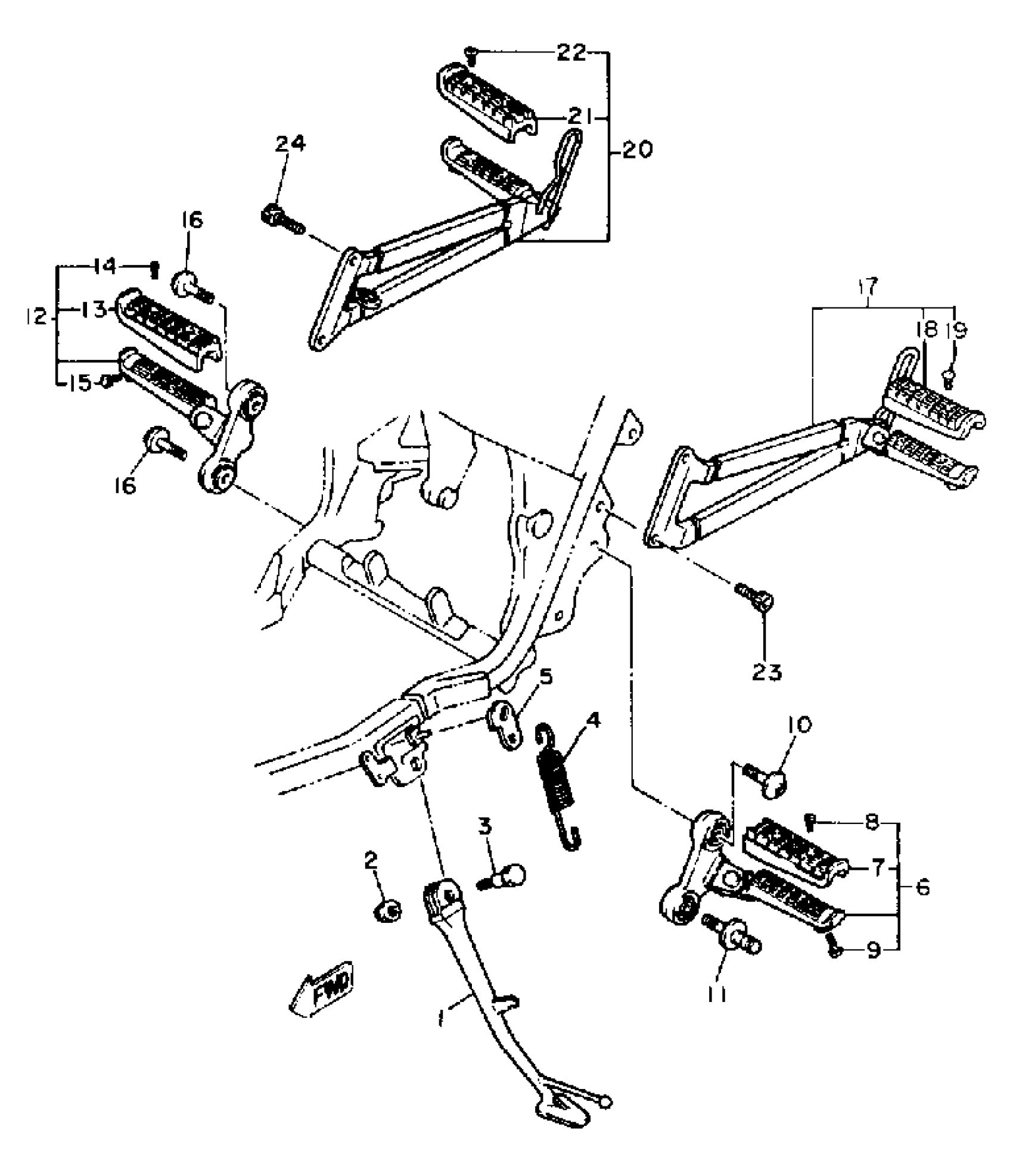

Yamaha SRX600SC (SRX600 CA) 1986 STAND - FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

1JK-27311-01-00

Unavailable

2

NUT, U

90185-10037-00

$9.49

3

BOLT

90109-10473-00

$8.49

4

SPRING, TENSION (5N8)

90506-29266-00

$14.99

5

LINK, SIDE STAND

3VD-27315-00-00

$7.99

6

FRT FOOTREST ASSEMBLY L

1JK-27410-01-00

Unavailable

7

COVER, FOOTREST

1JK-27413-00-00

$34.99

8

SCREW, PAN HEAD

98507-05014-00

$8.49

9

BOLT

90109-08224-00

$2.55

10

SCREW, SPEC''L SHAPE

90149-08216-00

Unavailable

11

BOLT

1JK-27434-00-00

Unavailable

12

FRT FOOTREST ASSEMBLY R

1JK-27420-01-00

Unavailable

13

COVER, FOOTREST

1JK-27413-00-00

$34.99

14

SCREW, PAN HEAD

98507-05014-00

$8.49

15

BOLT

90109-08224-00

$2.55

16

SCREW, SPEC''L SHAPE

90149-08216-00

Unavailable

17

RR FOOTREST ASSEMBLY 1

1XL-27430-00-MA

Unavailable

18

COVER, FOOTREST

2GH-27413-00-00

Unavailable

19

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

20

RR FOOTREST ASSEMBLY 2

1XL-27440-00-MA

Unavailable

21

COVER, FOOTREST

2GH-27413-00-00

Unavailable

22

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

23

BOLT,SOCKET HEAD

91317-10018-00

Unavailable

24

BOLT, SOCKET

91317-08020-00

Unavailable
