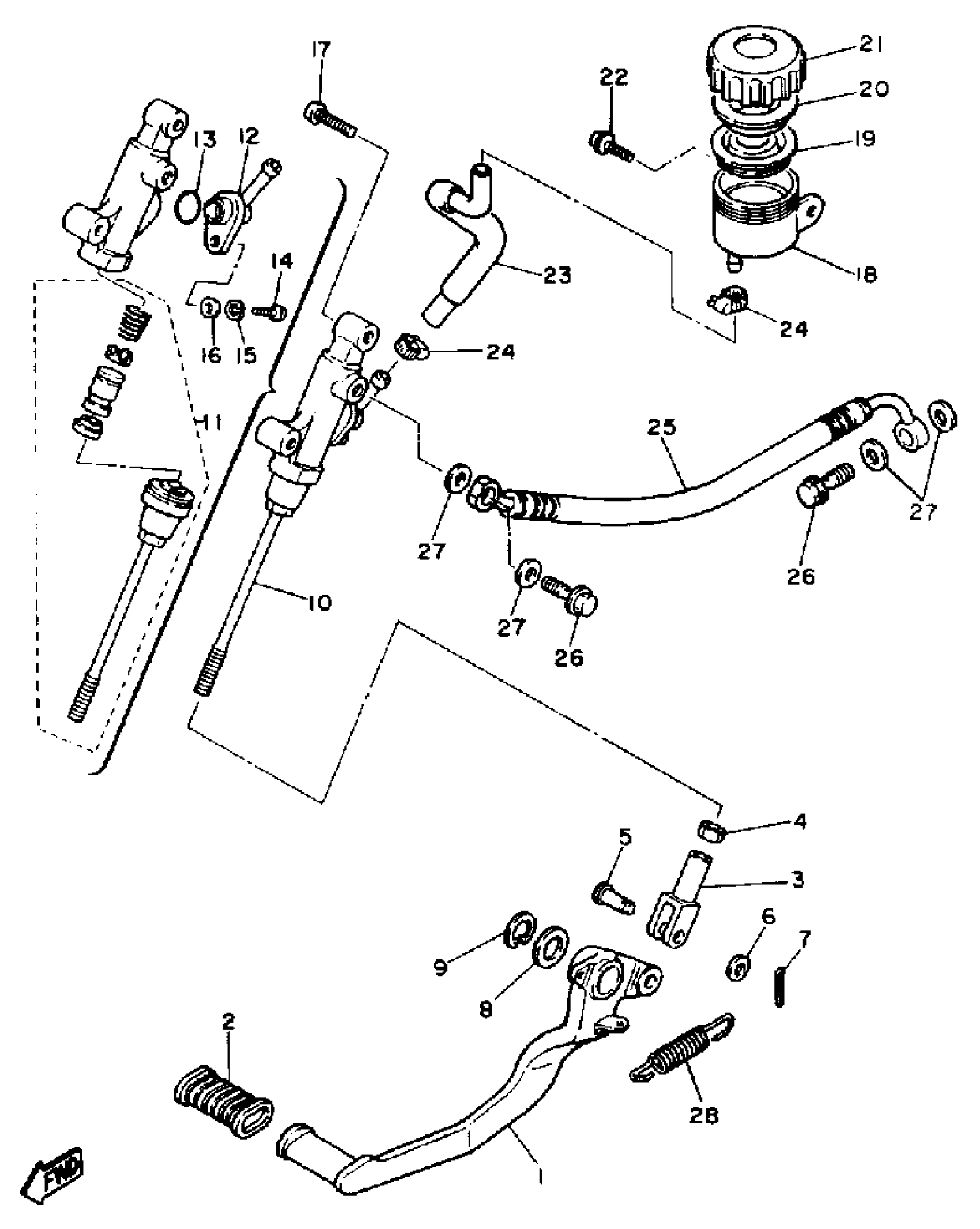

Yamaha SRX600SC (SRX600 CA) 1986 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

1JK-27211-01-00

Unavailable

2

COVER, SHIFT PEDAL

22N-18113-00-00

$7.99

3

JOINT

31A-27222-00-00

$43.99

4

. NUT

95380-08700-00

Unavailable

5

PIN W/HOLE 307181180000

90240-08013-00

$8.49

6

WASHER, PLATE 1562722600

90201-08083-00

$9.49

7

PIN, COTTER

91490-20025-00

$1.99

8

WASHER PLATE 611441260000

90201-14212-00

$8.49

9

CIRCLIP

99006-10600-00

$9.49

10

MSTR CYLINDER ASSEMBLY

46X-25850-50-00

Unavailable

11

CYLINDER KIT, MASTER

33M-W0042-50-00

Unavailable

12

CONNECTOR

29L-2582A-50-00

Unavailable

13

O-RING (22U)

93210-15566-00

$7.49

14

SCREW, PAN HEAD

98511-04012-00

Unavailable

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

16

WASHER, PLAIN (646)

92990-04600-00

Unavailable

17

SCREW, SPEC''L SHAPE

(90149-08188-00)

Unavailable

18

TANK, RESERVOIR

31A-25894-01-00

Unavailable

19

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

20

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

21

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

22

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

23

UNAVAILABLE IN PRICE BOOK

[1J-K2589-50-00

Unavailable

24

CLAMP, HOSE

90460-12268-00

Unavailable

25

UNAVAILABLE IN PRICE BOOK

[1X-L2587-25-00

Unavailable

26

BOLT, UNION(3GM)

90401-10159-00

Unavailable

27

WASHER, PLATE(481)

90201-10118-00

Unavailable

28

SPRING (3R5)

90506-20223-00

Unavailable
