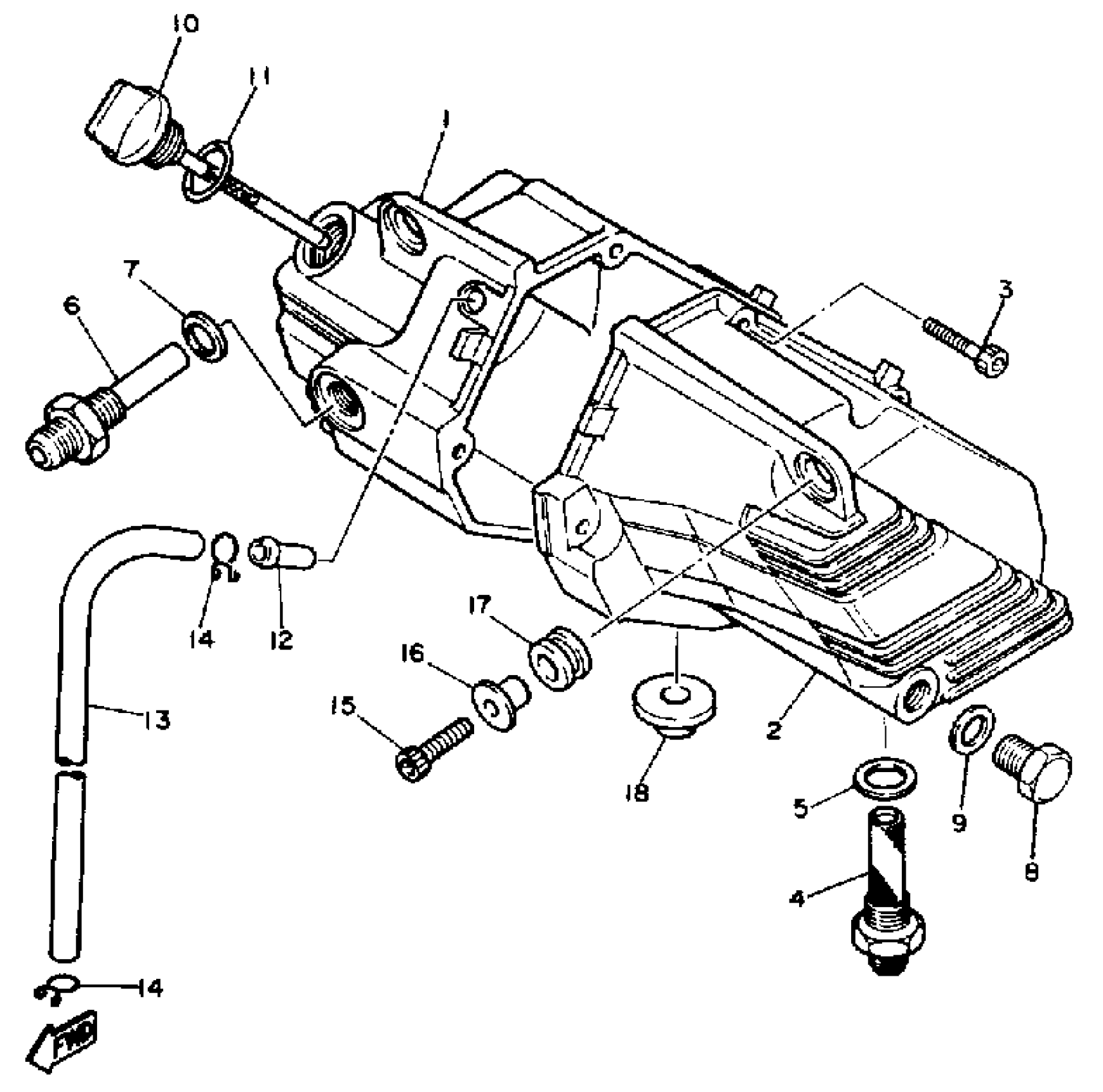

Yamaha SRX600SC (SRX600 CA) 1986 OIL TANK Diagram
#
Description
Price
1
UNAVAILABLE IN PRICE BOOK
[1J-K2173-30-00
Unavailable
2
TANK, OIL
(1JK-21751-01-00)
Unavailable
4
NET, FILTER
1JK-21756-01-00
Unavailable
5
GASKET
90430-20145-00
Unavailable
6
JOINT
1JK-13132-10-00
Unavailable
8
. PLUG, STRAIGHT SCREW
90340-14130-00
Unavailable
10
GAUGE, LEVEL
1JK-21761-01-00
Unavailable
12
UNAVAILABLE IN PRICE BOOK
[58-31112-60-00
Unavailable
13
HOSE (L230)
90445-113E2-00
Unavailable
16
COLLAR 437216330000
90387-07391-00
Unavailable
17
GROMMET(1JK)
90480-14433-00
Unavailable
18
GROMMET
90480-15437-00
Unavailable
