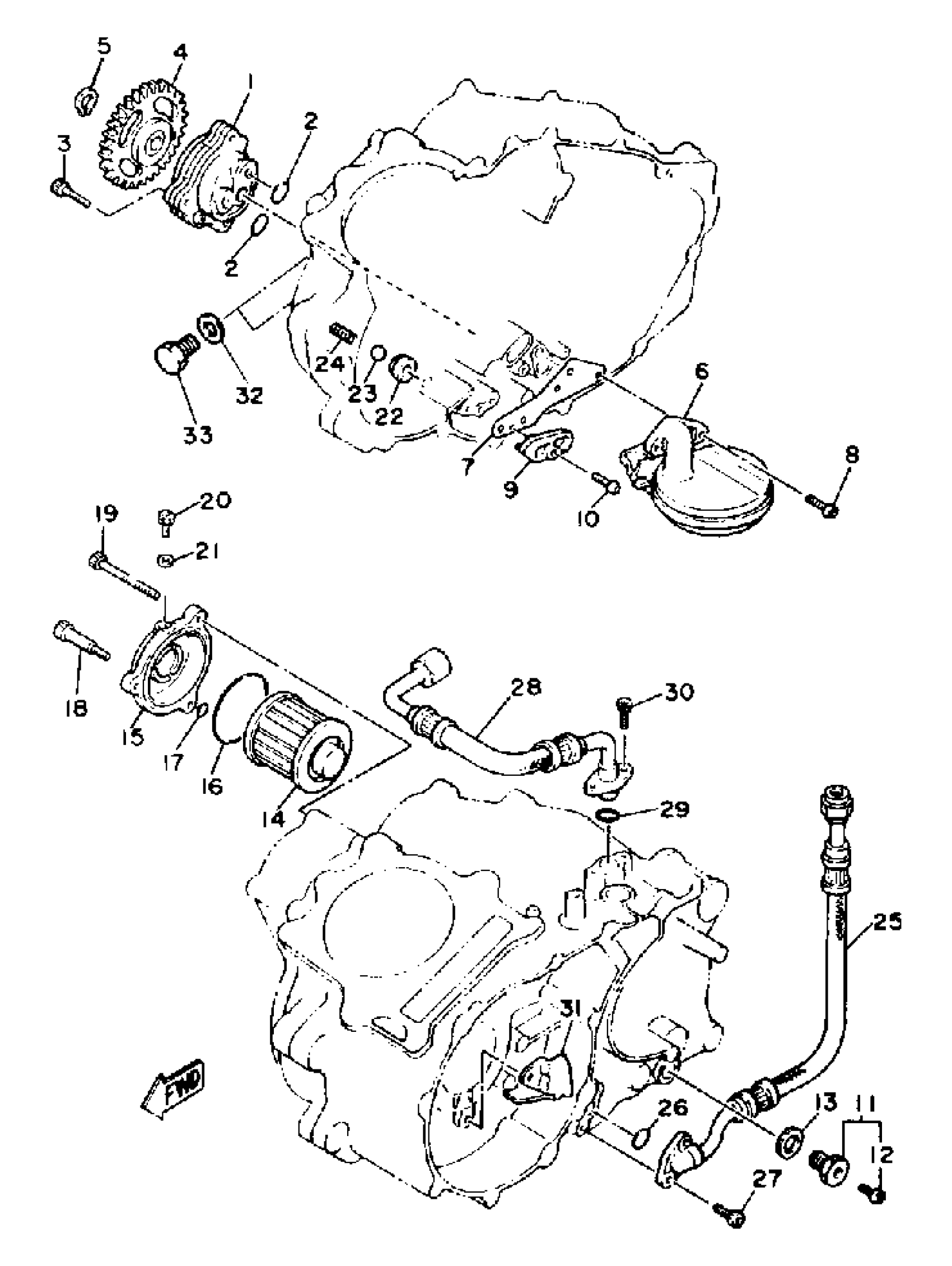

Yamaha SRX600SC (SRX600 CA) 1986 OIL PUMP Diagram
#
1
. UNAVAILABLE IN PRICE BOOK
1VJ-13300-02-00
Unavailable
1
GASKET, PUMP COVER
3SX-13329-00-00
Unavailable
1
OIL PUMP KIT (3AJ)
99999-01858-00
Unavailable
3
BOLT,SOCKET
91317-06035-00
Unavailable
4
. UNAVAILABLE IN PRICE BOOK
3AJ-13314-09-00
Unavailable
4
OIL PUMP GEAR KIT
99999-01925-00
Unavailable
6
STRAINER ASSY.
5Y1-Y134C-00-00
Unavailable
7
SEAL, OIL STRAINER
4DW-13415-00-00
Unavailable
9
COVER, CAP 2
5Y1-15427-10-00
Unavailable
11
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
12
SCREW, BIND(2TV)
98980-06008-00
Unavailable
13
GASKET
214-11198-01-00
Unavailable
14
ELEMENT ASSY, OIL CLEANER
4X7-13440-90-00
Unavailable
15
COVER, ELEMENT
2J2-13447-00-00
Unavailable
16
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
17
O-RING (583 OIL DRAIN BOLT)
93210-07135-00
Unavailable
18
BOLT (583 OIL DRAIN)
90109-06419-00
Unavailable
19
BOLT,SOCKET
91317-06080-00
Unavailable
20
SCREW (583)
90149-05110-00
Unavailable
21
GASKET
90430-05126-00
Unavailable
22
SEAT, CHECK BALL
583-13113-00-00
Unavailable
23
BALL
93503-08007-00
Unavailable
24
SPRING, COMPRESSION(1VJ)
90501-043E0-00
Unavailable
25
HOSE, OIL 1
1JK-13464-00-00
Unavailable
26
O-RING (371)
93210-10197-00
Unavailable
27
BOLT,SOCKET
91317-06016-00
Unavailable
28
HOSE, OIL 2
1JK-13465-00-00
Unavailable
29
O-RING (341)
93210-15171-00
Unavailable
30
BOLT,SOCKET
91317-06016-00
Unavailable
31
PLATE
5Y1-13371-00-00
Unavailable
32
GASKET 256131670000
90430-14043-00
Unavailable
33
PLUG, (663)
90340-14036-00
Unavailable
