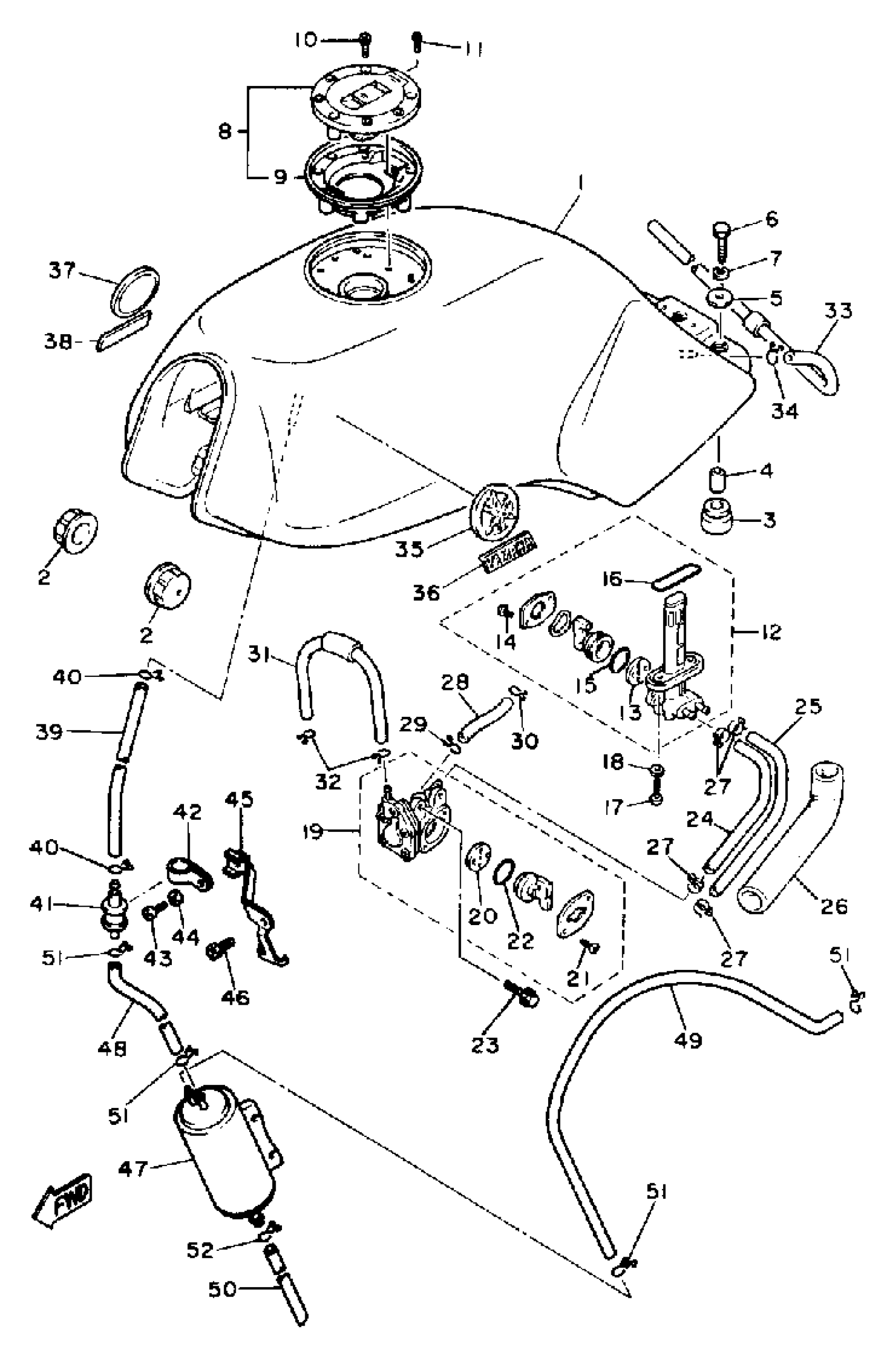

Yamaha SRX600SC (SRX600 CA) 1986 FUEL TANK (SRX600SC) Diagram

#

Description
Price

1

FUEL TANK

2EG-24110-00-EG

Unavailable

2

DAMPER, LOCATING

4H7-24181-00-00

$6.99

3

DAMPER, LOCATING 2

1JK-24182-00-00

Unavailable

4

COLLAR

90387-063G2-00

Unavailable

5

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

6

BOLT(3RV)

97014-06035-00

$2.75

7

WASHER, SPRING

92995-06100-00

Unavailable

8

CAP ASSY

4HM-24602-01-00

$264.99

9

. COVER, FILLER

1XL-2414A-01-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

11

BOLT, SOCKET

91314-05010-00

$2.55

12

FUEL COCK ASSY 2

1JK-24510-02-00

Unavailable

13

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

O-RING, FUEL COCK

3H3-24534-00-00

$14.49

16

O-RING

2W6-24512-00-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

FUEL COCK ASSY 1

2UJ-24500-10-00

Unavailable

20

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

21

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

22

SEAL, COCK

1JK-24534-00-00

Unavailable

23

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

24

PIPE, FUEL 1

1JK-24311-00-00

Unavailable

25

PIPE 3

1JK-24313-00-00

Unavailable

26

PROTECTOR, PIPE

1JK-24327-00-00

Unavailable

27

CLIP(42X)

90467-10091-00

Unavailable

28

PIPE 2 (L90)

51Y-24312-00-00

Unavailable

29

CLIP

90467-100A1-00

Unavailable

30

CLIP

90467-090A2-00

Unavailable

31

UNAVAILABLE IN PRICE BOOK

[1J-K2431-40-00

Unavailable

32

CLIP (16G)

90467-08021-00

Unavailable

33

PIPE 5

(1JK-24315-00-00)

Unavailable

34

CLIP

90467-090A2-00

Unavailable

35

EMBLEM 1

1JK-24161-00-00

Unavailable

36

EMBLEM 3

1JK-24163-00-00

Unavailable

37

EMBLEM 1

1JK-24161-00-00

Unavailable

38

EMBLEM 3

1JK-24163-00-00

Unavailable

39

UNAVAILABLE IN PRICE BOOK

[2E-G2431-20-00

Unavailable

40

CLIP

90467-100A1-00

Unavailable

41

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

42

CLAMP

90464-15014-00

Unavailable

43

SCREW, PAN

98517-05012-00

Unavailable

44

WASHER(1RW)

92907-05600-00

Unavailable

45

BRACKET, CANISTER

(2EG-2419F-00-00)

Unavailable

46

BOLT,SOCKET

91317-06016-00

Unavailable

47

UNAVAILABLE IN PRICE BOOK

[2E-G2417-00-00

Unavailable

48

PIPE 3

(2EG-24313-00-00)

Unavailable

49

PIPE 4

2EG-24314-00-00

Unavailable

50

UNAVAILABLE IN PRICE BOOK

[2E-G2432-50-00

Unavailable

51

CLIP

90467-100A1-00

Unavailable

52

CLIP(1JH)

90467-11106-00

Unavailable
