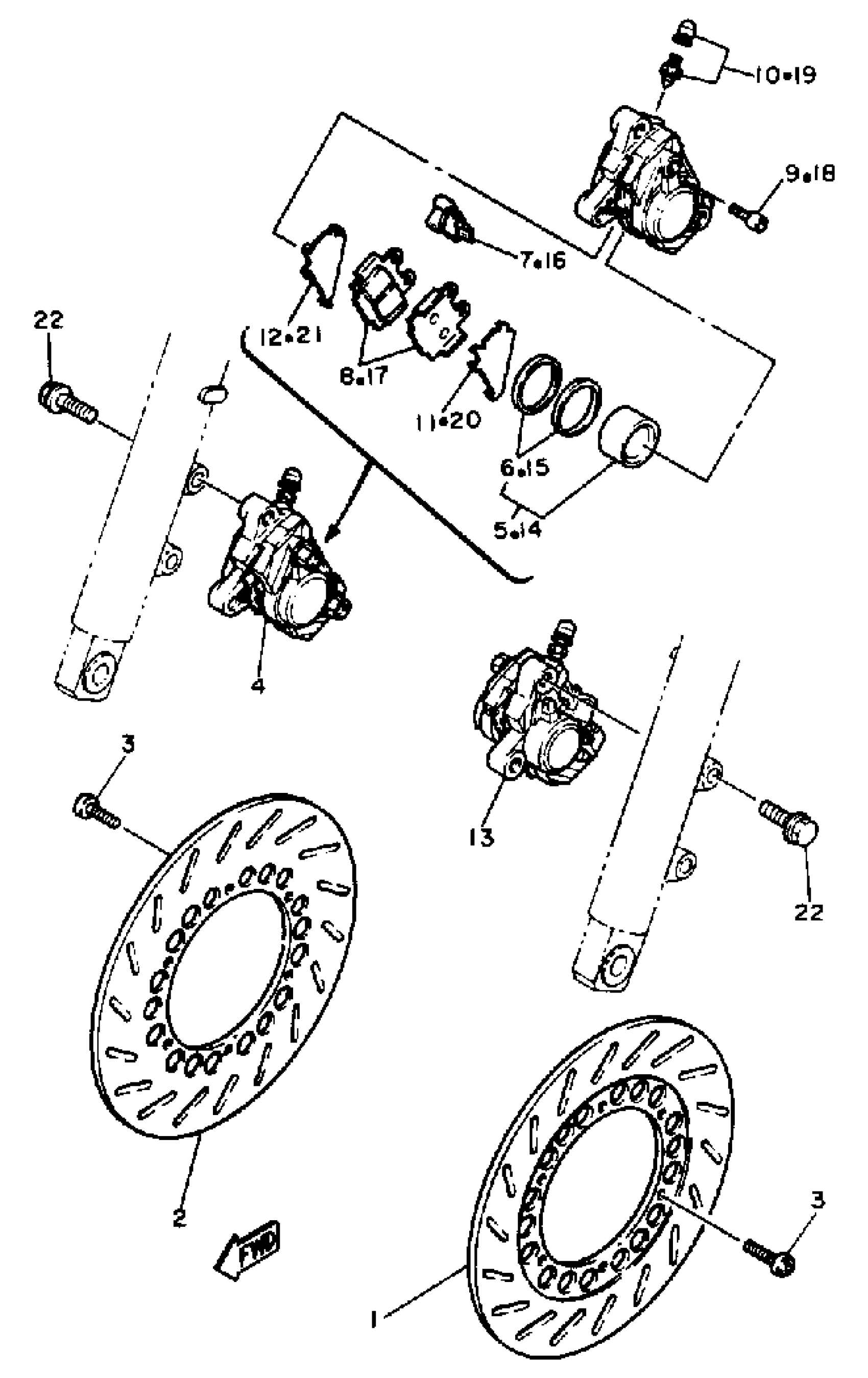

Yamaha SRX600SC (SRX600 CA) 1986 FRONT BRAKE - CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

29L-25831-10-00

Unavailable

2

DISC, BRAKE R (BLCK) (RIGHT)

29L-25831-00-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

4

UNAVAILABLE IN PRICE BOOK

[1J-K2581-00-00

Unavailable

5

PISTON ASSY, CALIPER

51L-W0057-00-00

$138.99

6

CALIPER SEAL KIT

51L-W0047-11-00

Unavailable

7

SUPPORT, PAD

51L-25919-00-00

Unavailable

8

BRAKE PAD KIT 2

4AP-W0046-00-00

$46.99

9

PIN, PAD

4FL-25924-00-00

$22.99

10

BLEED SCREW KIT

15B-W0048-00-00

$19.99

11

SHIM, CALIPER

47X-25827-00-00

$19.99

12

SHIM, CALIPER

47X-25827-10-00

$15.49

13

CALIPER ASSEMBLY

(1JK-25810-11-00)

Unavailable

14

PISTON ASSY, CALIPER

51L-W0057-00-00

$138.99

15

CALIPER SEAL KIT

51L-W0047-11-00

Unavailable

16

SUPPORT, PAD

51L-25919-00-00

Unavailable

17

BRAKE PAD KIT 2

4AP-W0046-00-00

$46.99

18

PIN, PAD

4FL-25924-00-00

$22.99

19

BLEED SCREW KIT

15B-W0048-00-00

$19.99

20

SHIM, CALIPER

47X-25827-00-00

$19.99

21

SHIM, CALIPER

47X-25827-10-00

$15.49

22

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
