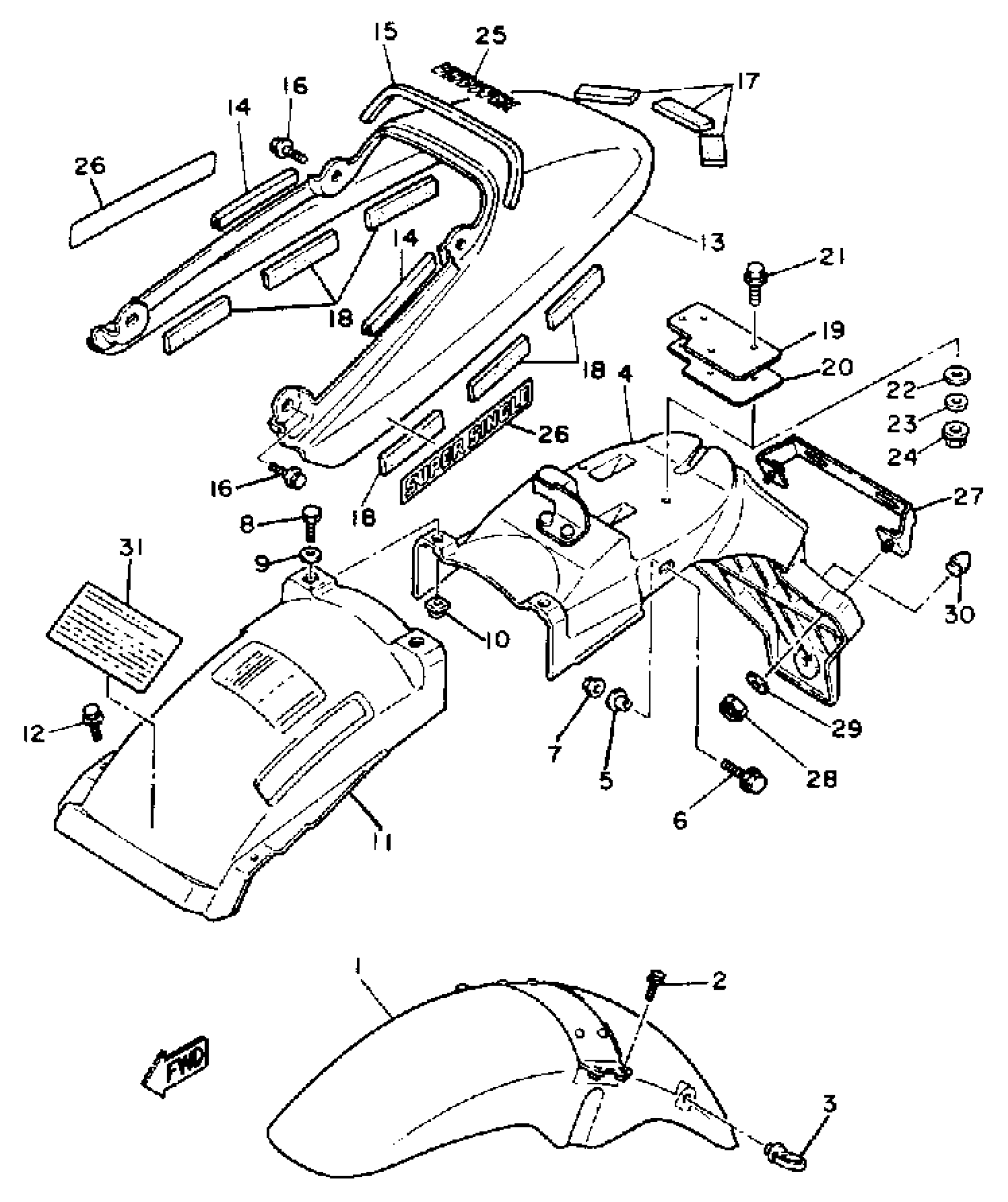

Yamaha SRX600SC (SRX600 CA) 1986 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1JK-21510-01-LG

Unavailable

2

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

3

GUIDE, WIRE

1A8-21518-00-00

$7.99

4

FENDER, REAR

2EF-W2161-00-00

Unavailable

5

COLLAR (25Y)

90387-083J6-00

$16.99

6

BOLT, FLANGE(4GY)

95024-08025-00

$8.49

7

NUT, FLANGE

95704-08500-00

$8.49

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

UNAVAILABLE IN PRICE BOOK

[33-M2163-60-00

Unavailable

11

GUARD, MUD

1JK-21629-00-00

Unavailable

12

BOLT, WITH WASHER

(90119-06074-00)

Unavailable

13

COVER, REAR FENDER

1JK-21651-00-EG

Unavailable

14

PROTECTOR

1JK-21652-00-00

Unavailable

15

DAMPER

3AJ-28371-00-00

$11.99

16

BOLT, WITH WASHER(1JK)

90119-06123-00

Unavailable

17

DAMPER, LOCATING 1

4X4-24181-00-00

Unavailable

18

DAMPER 2

34M-21639-00-00

Unavailable

19

BRACKET, REGULATOR

(1JK-21287-01-00)

Unavailable

20

SEAL

(1JK-21669-00-00)

Unavailable

21

BOLT, FLANGE

95817-06020-00

Unavailable

22

WASHER, PLATE

90201-06M08-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

25

EMBLEM, YAMAHA

99246-00080-00

Unavailable

26

EMBLEM 2

1JK-2163H-10-00

Unavailable

27

BRACKET, LICENSE

2EF-21685-00-00

Unavailable

28

NUT, SELF-LOCKING

95617-06100-00

Unavailable

29

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

30

PLUG

90338-07018-00

Unavailable

31

PLATE, SPEC.

(2EF-21683-60-00)

Unavailable

31

PLATE, SPEC.

(2EF-21683-60-00)

Unavailable
