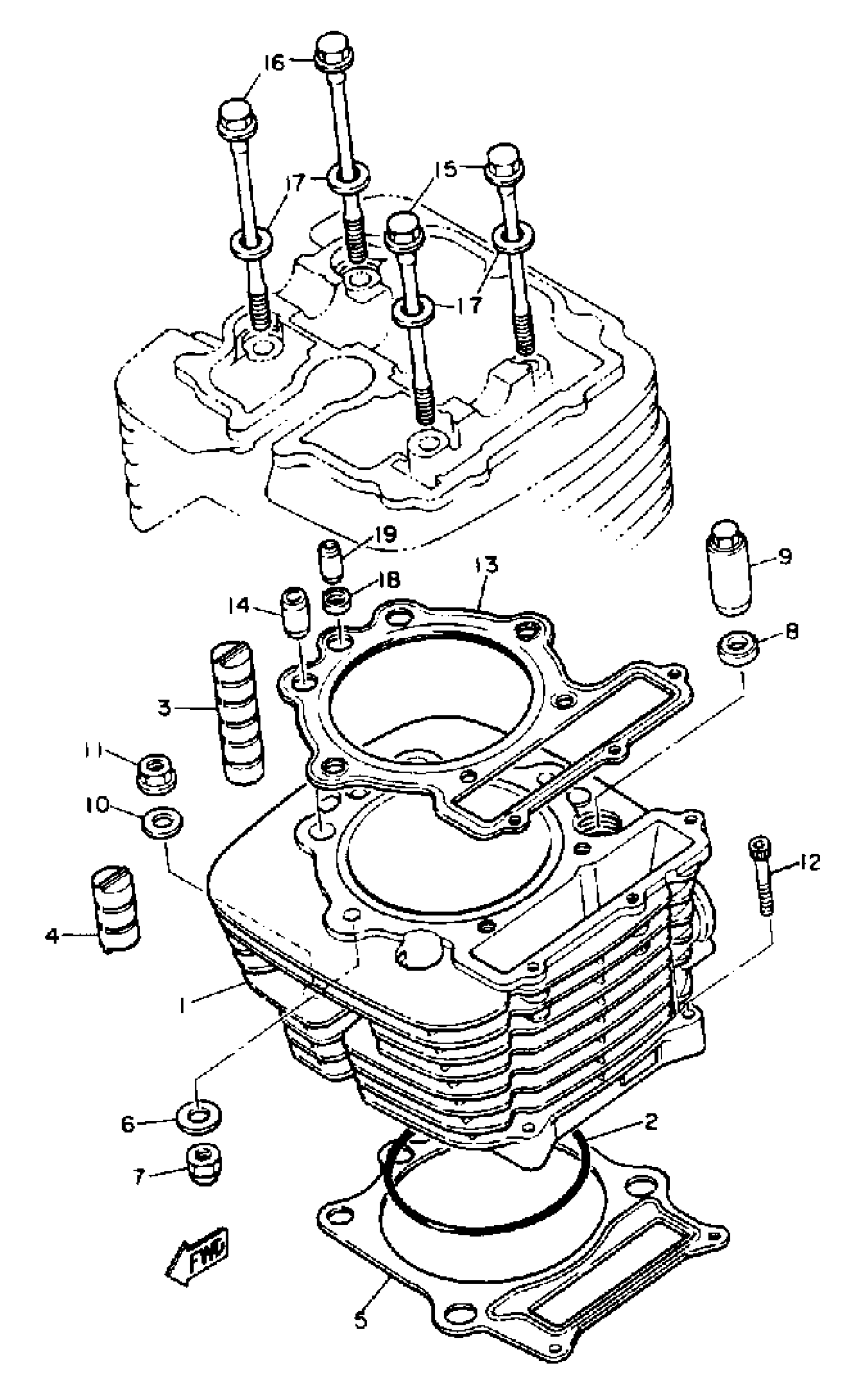

Yamaha SRX600SC (SRX600 CA) 1986 CYLINDER Diagram

#

Description
Price

1

CYLINDER

2EF-11310-01-00

Unavailable

2

O-RING (5Y1)

93210-97524-00

$16.99

3

ABSORBER

583-11127-00-00

$7.99

4

ABSORBER

583-11127-00-00

$7.99

5

GASKET, CYLINDER

1VJ-11351-00-00

Unavailable

6

WASHER, PLATE(3LN)

90201-086M0-00

$8.49

7

NUT, CROWN (4G0)

90176-08026-00

$14.99

8

WASHER, PLATE (583)

90201-10590-00

$5.60

9

NUT

90179-10021-00

$25.99

10

WASHER, PLATE 3711117500

90201-10124-00

$9.49

11

NUT (2Y5)

90179-10279-00

$8.49

12

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

13

GASKET, CYLINDER HEAD

1JK-11181-02-00

Unavailable

14

PIN, DOWEL

99530-12016-00

$4.89

15

BOLT, WASHER BASED

90105-08464-00

Unavailable

16

BOLT,WASHER BASED

90105-08465-00

Unavailable

17

WASHER, PLATE

90201-080L7-00

Unavailable

18

GASKET (5Y1)

90430-08178-00

Unavailable

19

PIN, DOWEL(3XW)

91808-16023-00

Unavailable
