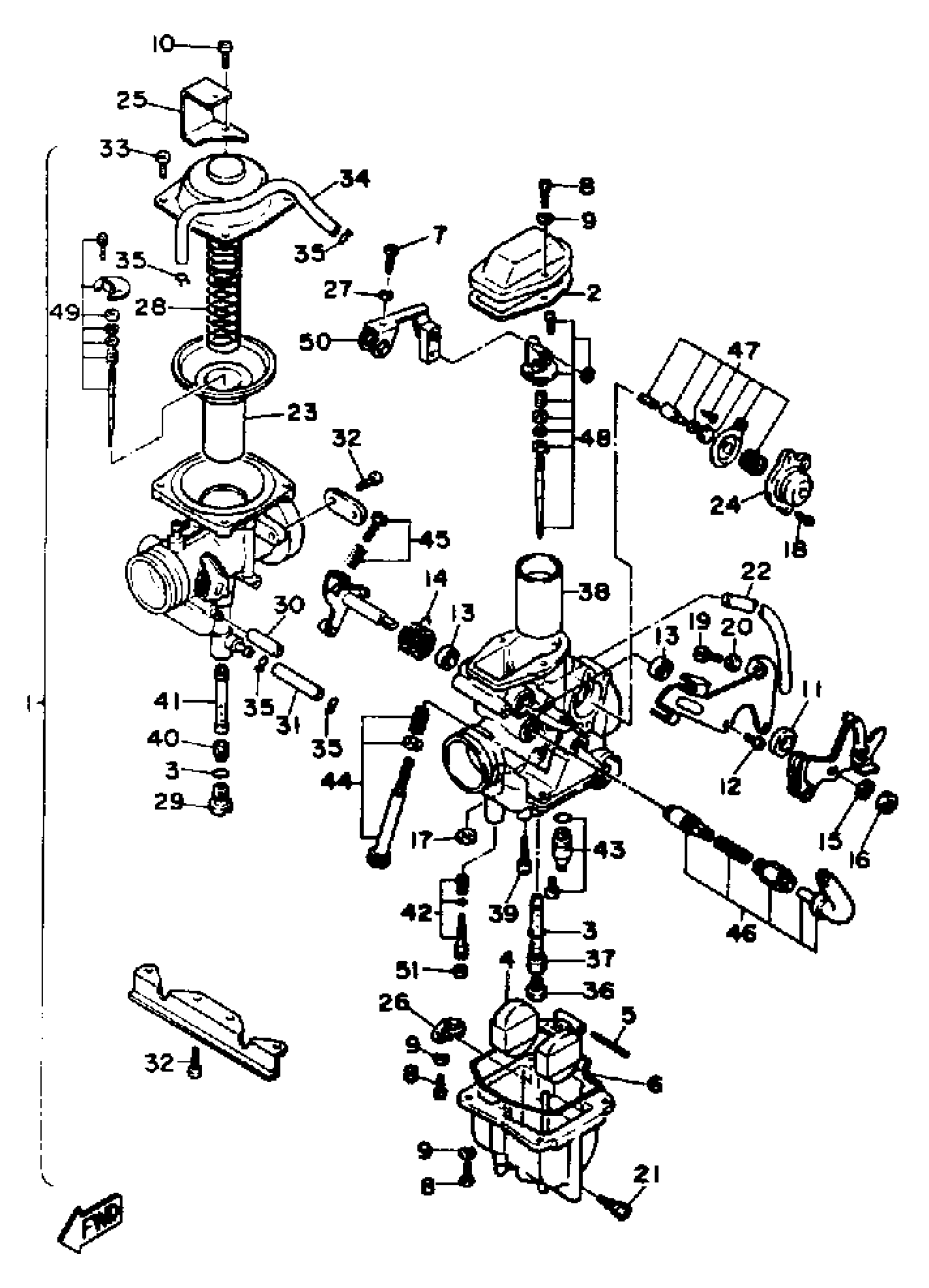

Yamaha SRX600SC (SRX600 CA) 1986 CARBURETOR (SRX600SC) Diagram

#

Description
Price

1

CARBURETOR ASY 1

2EG-14301-03-00

Unavailable

2

GASKET

5Y1-14198-00-00

$7.99

3

GASKET

360-24512-00-00

$9.99

4

FLOAT

5Y1-14385-00-00

$89.99

5

. PIN, FLOAT

6E5-14386-01-00

Unavailable

6

GASKET, FLOAT CHAMBER

5Y1-14384-00-00

$25.99

7

SCREW, PANHEAD (796)

98580-04016-00

$8.49

8

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

SCREW, PAN HEAD

98511-04012-00

Unavailable

11

WASHER, PLAIN

(1JK-14357-00-00)

Unavailable

12

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

13

O-RING

5Y1-14572-00-00

$24.99

14

. SPRING, THROTTLE VALVE

1XL-14131-00-00

Unavailable

15

. WASHER, SPRING

5Y1-14356-00-00

Unavailable

16

. NUT

5Y1-14358-00-00

Unavailable

17

GASKET

5Y1-14536-00-00

Unavailable

18

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

19

. SCREW

30X-14216-00-00

Unavailable

20

NUT

30X-14358-00-00

Unavailable

21

PLUG, SCREW

5Y1-14115-00-00

Unavailable

22

PIPE

1JK-14197-00-00

Unavailable

23

DIAPHRAGM ASSY

1JK-14940-01-00

Unavailable

24

. COVER 1

5Y1-14293-01-00

Unavailable

25

PLATE, START LVR 1

(1JK-14378-00-00)

Unavailable

26

PLATE

42U-14146-00-00

Unavailable

27

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

28

. SPRING

1JK-14286-00-00

Unavailable

29

. VALVE, DRAIN (30X-14394-00)

1RG-14394-00-00

Unavailable

30

PIPE

5Y1-14349-00-00

Unavailable

31

PIPE

30X-14148-00-00

Unavailable

32

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

33

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

34

PIPE

5Y1-14149-00-00

Unavailable

35

CLIP

5Y1-14159-00-00

Unavailable

36

JET, MAIN (# 116)

288-14343-58-00

Unavailable

36

JET, MAIN (# 118)

288-14343-59-00

Unavailable

36

JET, MAIN (# 120)

288-14343-60-00

Unavailable

37

. NOZZLE, MAIN

5Y1-14341-26-00

Unavailable

38

VALVE, THROTTLE 1

(1XL-14312-55-00)

Unavailable

39

JET, PILOT (#46)

43F-14342-23-00

Unavailable

40

. JET, MAIN #100

30X-14343-50-00

Unavailable

41

. NOZZLE, MAIN 2

1JK-14355-00-00

Unavailable

42

PILOT SCREW SET

50M-14105-00-00

Unavailable

43

NEEDLE VALVE SET

1JK-14107-01-00

Unavailable

44

. UNAVAILABLE IN PRICE BOOK

[1J-K1490-K0-00

Unavailable

45

THROTTLE SCREW SET

(1JK-14103-00-00)

Unavailable

46

. STARTER SET

1JK-1410A-01-00

Unavailable

47

DIAPHRAGM SET, 1

1JK-1490A-00-00

Unavailable

48

. NEEDLE SET

2EF-1490J-10-00

Unavailable

49

. NEEDLE SET

2EF-1490J-00-00

Unavailable

50

. CONNECTER COMP

1JK-14291-00-00

Unavailable

51

. CAP

5Y1-14118-00-00

Unavailable
