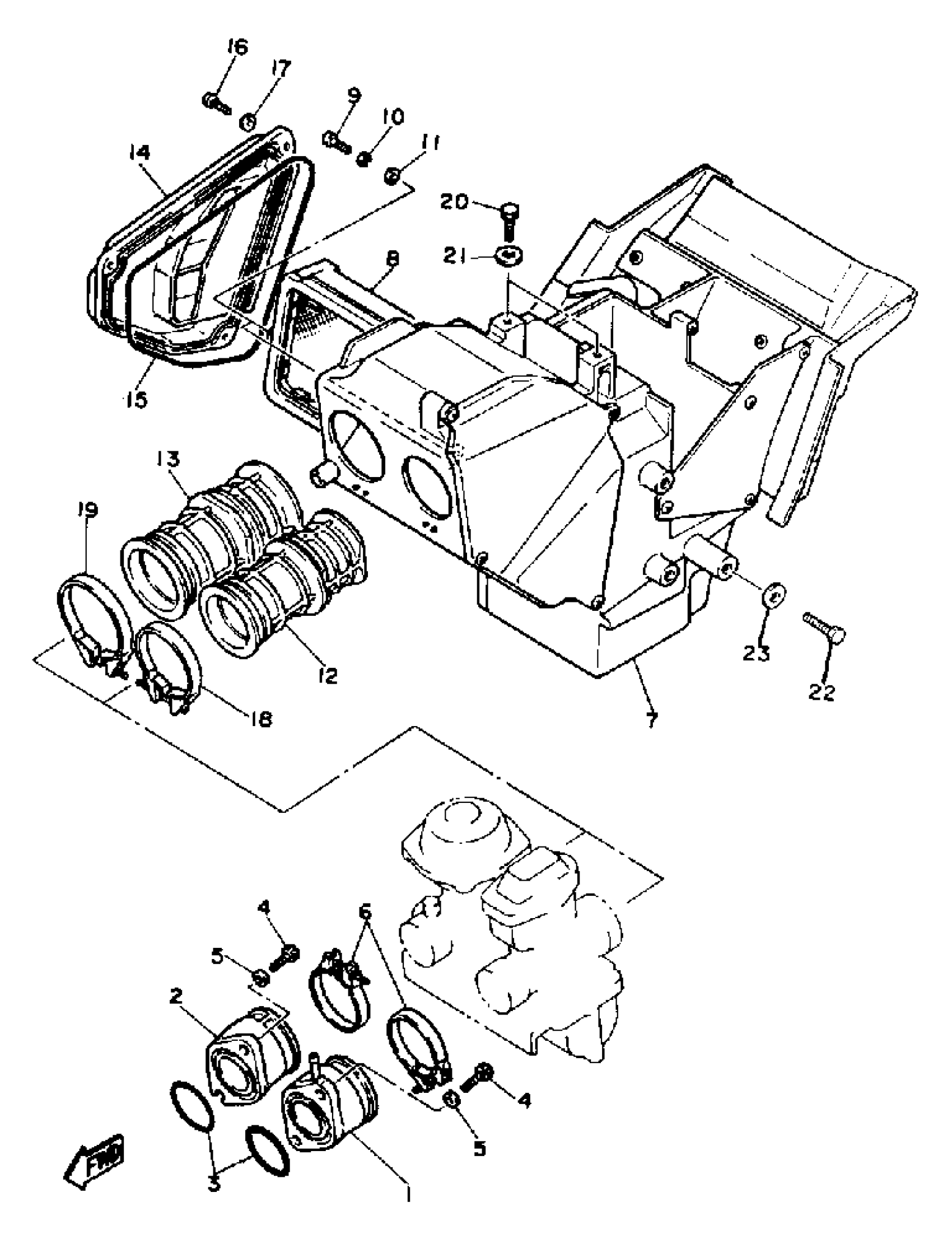

Yamaha SRX600SC (SRX600 CA) 1986 AIR CLEANER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

1JK-13586-01-00

Unavailable

2

JOINT, CARBURETOR 2

1JK-13596-01-00

Unavailable

3

O-RING(2TY)

93210-36769-00

$11.49

4

BOLT,SOCKET

91317-06020-00

Unavailable

5

WASHER(6TA)

92907-06600-00

$2.72

6

HOSE CLAMP ASSY

90450-47002-00

$8.49

7

AIR CLNR CASE ASSEMBLY

1JK-14401-00-00

Unavailable

8

ELEMENT, AIR CLEANER

1JK-14451-01-00

Unavailable

9

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

WASHER, PLAIN (646)

92990-05600-00

$0.80

12

JOINT, AIR CLNR 1

1JK-14453-00-00

Unavailable

13

JOINT

1JK-14454-00-00

Unavailable

14

CAP, CLEANER CASE 2

1JK-14422-00-00

Unavailable

15

SEAL

51Y-14462-00-00

$18.49

16

SCREW, PAN HEAD

90157-05M19-00

Unavailable

17

WASHER(1RW)

92907-05600-00

Unavailable

18

CLAMP HOSE 304144550000

90460-51059-00

Unavailable

19

HOSE CLAMP ASSY

90450-58002-00

Unavailable

20

BOLT, HEXAGON

97017-06020-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

Unavailable

23

WASHER(6TA)

92907-06600-00

$2.72
