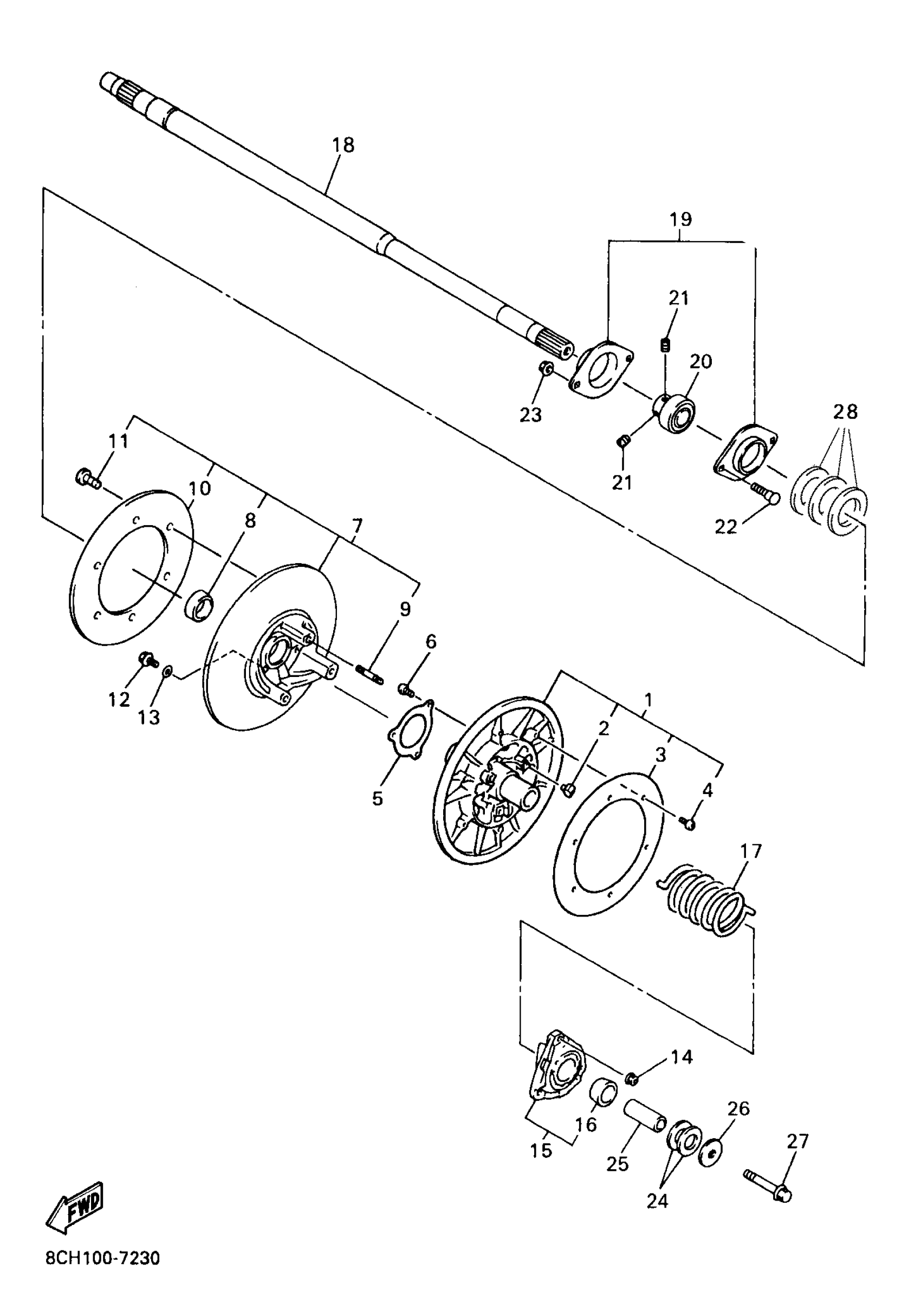

Yamaha SRX600SB (SRX600S (OHLINS FR SHOCKS)) 1998 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8CR-17660-10-00

Unavailable

2

SHOE, RAMP

8AV-17688-10-00

$32.99

3

PLATE 1

8CM-17665-00-00

Unavailable

4

GASKET, EXHAUST

98507-05008-00

$3.55

5

STOPPER, HOLDER

8BV-17656-00-00

$22.99

6

SCREW, BINDING

98907-06016-00

$9.49

7

SECONDARY SLIDING SHEAVE

8BU-17670-10-00

Unavailable

8

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

9

BOLT, STUD 3

95617-08630-00

$4.99

10

PLATE 2

8CM-17675-00-00

Unavailable

11

GASKET, EXHAUST

98507-05008-00

$3.55

12

BOLT, WASHER BASED(8BN)

90105-06734-00

$3.50

13

WASHER, PLATE (371)

90201-06431-00

$5.60

13

WASHER, PLATE (22K)

90201-061H1-00

$4.72

14

NUT(8BN)

90179-08655-00

$10.49

15

SEAT SPRING SET

8BV-17604-11-00

Unavailable

15

SEAT SPRING SET

8BV-17604-31-00

Unavailable

15

SEAT SPRING SET

8BV-17604-50-00

Unavailable

15

SEAT SPRING SET

8BV-17604-71-00

Unavailable

15

SEAT SPRING SET

8BV-17604-91-00

Unavailable

16

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

17

SPRING, TORSION(8BF)

90508-500B1-00

Unavailable

17

SPRING, TORSION(8AB)

90508-536A9-00

Unavailable

17

SPRING, TORSION(8BN)

90508-556A2-00

Unavailable

17

SPRING, TORSION(8BT)

90508-556A7-00

Unavailable

18

SHAFT, SECONDARY

8CR-17681-10-00

Unavailable

19

HOUSING, BEARING

8CR-47631-01-00

Unavailable

20

BEARING(8CJ)

93399-99943-00

Unavailable

21

BOLT, SET

90113-06006-00

Unavailable

22

BOLT(8CJ)

90109-083G2-00

Unavailable

23

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

24

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

24

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

25

COLLAR

90387-14019-00

Unavailable

26

WASHER, PLATE

90201-14022-00

Unavailable

27

BOLT, WASHER BASED(8CJ)

90105-14766-00

Unavailable

28

WASHER, PLATE (T2.0)

90201-25526-00-00

Unavailable

28

WASHER, PLATE (T1.0)

90201-25527-00-00

Unavailable

28

WASHER, PLATE (T0.5)

90201-255F1-00-00

Unavailable
