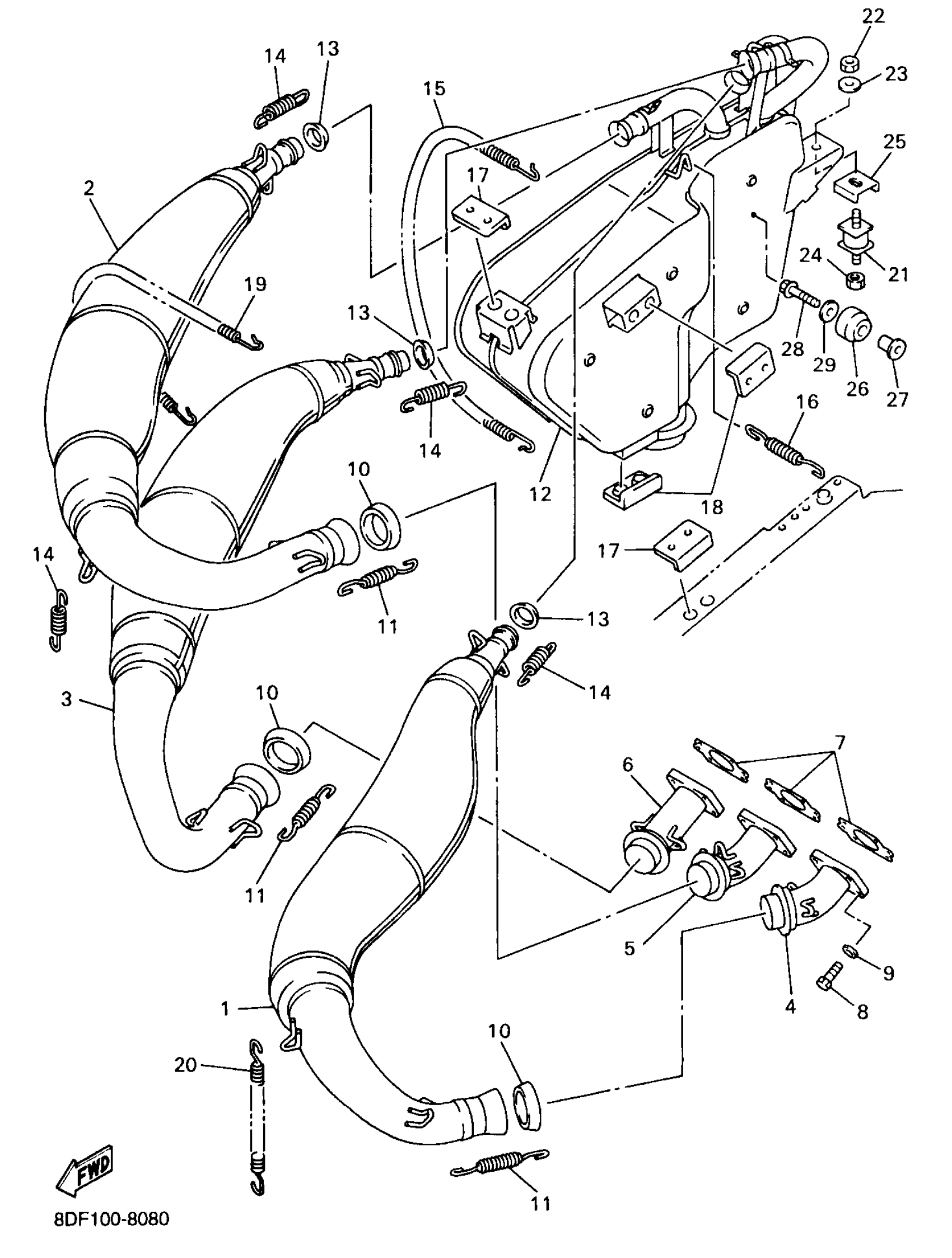

Yamaha SRX600SB (SRX600S (OHLINS FR SHOCKS)) 1998 EXHAUST Diagram
#
1
EXHAUST PIPE ASSEMBLY 1
8DF-14610-00-00
Unavailable
2
EXHAUST PIPE ASSEMBLY 2
8DF-14620-00-00
Unavailable
3
EXHAUST PIPE ASSY 3
8DF-14630-01-00
Unavailable
4
JOINT, EXHAUST 1
8DF-14615-00-00
Unavailable
5
JOINT, EXHAUST 2
8DF-14625-00-00
Unavailable
6
JOINT, EXHAUST 3
8DF-14635-00-00
Unavailable
7
GASKET, EXHAUST PIPE
8DF-14613-00-00
$23.99
8
BOLT, HEXAGON
97017-06025-00
$4.24
9
WASHER(6TA)
92907-06600-00
$2.72
10
GASKET, EXHAUST PIPE
8DF-14623-00-00
$39.99
11
SPRING, TENSION (8R7)
90506-20272-00
$11.49
12
SECOND SILENCER, MUFFLER
8DF-14640-00-00
Unavailable
13
GASKET, MUFFLER
8DF-14714-00-00
Unavailable
14
SPRING, TENSION (8M6)
90506-20093-00
$9.49
15
SPRING, TENSION
90506-16504-00
Unavailable
16
SPRING, TENSION (8R7)
90506-20272-00
$11.49
17
PROTECTOR, MUFFLER 2
8DF-14728-00-00
Unavailable
18
PROTECTOR, MUFFLER 2
83R-14728-01-00
Unavailable
19
SPRING, TENSION
90506-16497-00
Unavailable
20
SPRING, TENSION
90506-16512-00
Unavailable
21
DAMPER, MUFFLER
8DF-14747-00-00
Unavailable
22
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
23
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
24
NUT, SELF-LOCKING
90185-08169-00
Unavailable
25
WASHER
8DF-14616-10-00
Unavailable
26
INSULATOR, MOUNTING
8DF-22891-00-00
Unavailable
27
COLLAR
90387-06158-00
Unavailable
28
BOLT, FLANGE
95817-06025-00
Unavailable
29
WASHER
90209-06012-00
Unavailable
