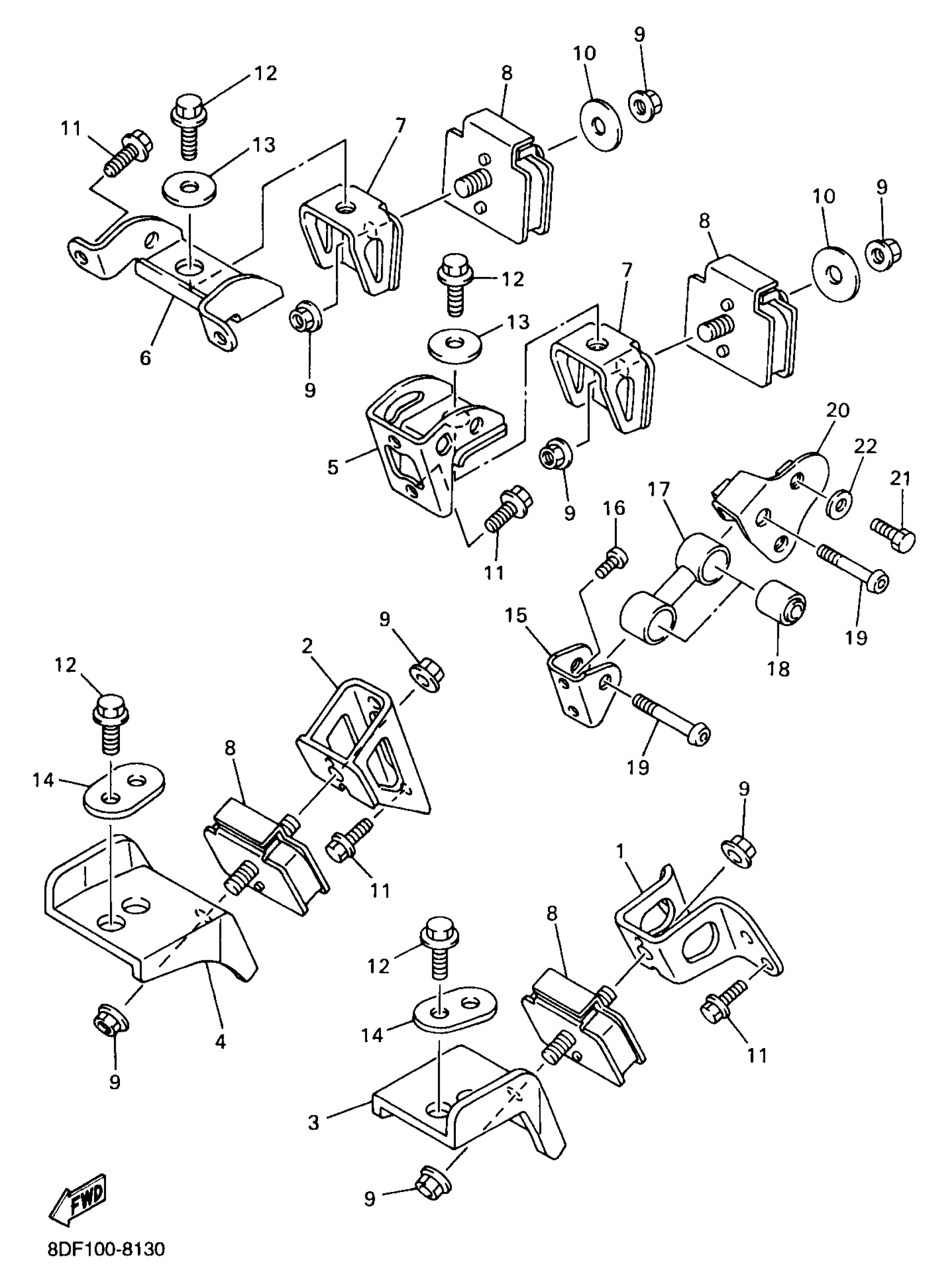

Yamaha SRX600SB (SRX600S (OHLINS FR SHOCKS)) 1998 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, FRONT UPPER 1

8DF-21415-00-00

Unavailable

2

BRACKET, FRONT UPPER 2

8DF-21416-00-00

Unavailable

3

BRACKET, FRONT LOWER 1

8DF-21417-01-00

$31.99

4

BRACKET, FRONT LOWER 2

8DF-21418-00-00

Unavailable

5

BRACKET, REAR UPPER 1

8DF-21425-00-00

Unavailable

6

BRACKET, REAR UPPER 2

8DF-21426-00-00

Unavailable

7

BRACKET, REAR LOWER 1

8CR-21427-01-00

Unavailable

8

DAMPER 2

8CH-21486-10-00

Unavailable

9

NUT, FLANGE(8AB)

95707-10500-00

$3.18

10

WASHER, PLATE (856)

90201-10321-00

$8.49

11

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

12

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

13

WASHER, PLATE (856)

90201-10321-00

$8.49

14

PLATE, ENGINE MOUNT

8DF-2145B-10-00

$8.99

15

BRACKET 1

8DF-2148U-00-00

Unavailable

16

BOLT, BUTTON

92017-08014-00

Unavailable

17

STAY, ENGINE 2

8DF-21315-00-00

Unavailable

18

DAMPER, RUBBER 1

89A-21485-00-00

Unavailable

19

BOLT, BUTTON HEAD

92017-10045-00

Unavailable

20

BRACKET 2

8DF-2148V-00-00

Unavailable

21

BOLT, HEXAGON

97017-08020-00

Unavailable

22

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable
