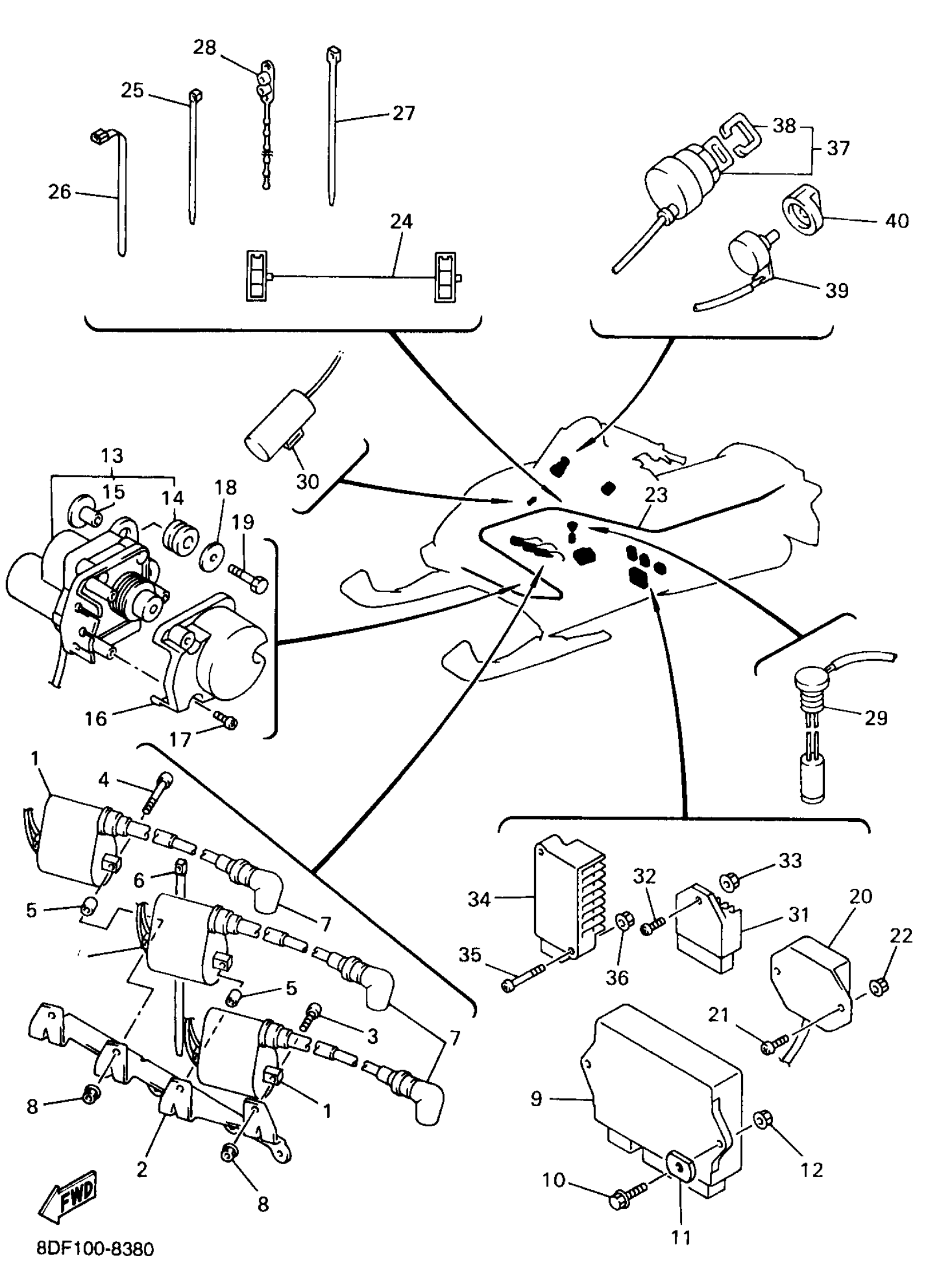

Yamaha SRX600SB (SRX600S (OHLINS FR SHOCKS)) 1998 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
2
BRACKET, IGNITION COIL
8DF-82316-00-00
Unavailable
3
BOLT,SOCKET
91317-06020-00
Unavailable
4
BOLT,SOCKET
91317-06040-00
$3.76
5
COLLAR
90387-07020-00
$8.49
6
CLAMP(4FM)
90464-15195-00
$4.41
7
PLUG CAP ASSY
8DG-82370-00-00
$49.99
8
NUT,SELF-LOCKING
95607-06200-00
$12.49
9
C.D.I. UNIT ASSEMBLY
8DF-85540-00-00
Unavailable
10
BOLT, FLANGE
95817-06020-00
$3.81
11
NUT,SPEC'L SHAPE
90179-06W01-00
Unavailable
12
NUT, FLANGE(4MV)
95707-06500-00
$1.23
13
SERVO MOTOR ASSY
8DF-85820-00-00
Unavailable
14
GROMMET 839774310000
90480-14023-00
$7.49
15
COLLAR(52E)
90387-063G3-00
$8.49
16
COVER, SERVO MOTOR
8DF-85829-00-00
Unavailable
17
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
18
WASHER, PLATE
90201-06380-00
Unavailable
19
BOLT, HEXAGON
97017-06030-00
Unavailable
20
VOLTAGE REGULATOR ASSY
82M-81910-A0-00
Unavailable
21
SCREW, PAN
98507-06014-00
Unavailable
22
NUT, FLANGE(4MV)
95707-06500-00
$1.23
23
WIRE HARNESS ASSY
8DF-82590-00-00
Unavailable
24
WIRE, LEAD
8CR-8471G-00-00
Unavailable
25
CLAMP(4FM)
90464-15195-00
$4.41
26
CLAMP(4FM)
90464-15195-00
$4.41
27
CLAMP
90464-13077-00
Unavailable
28
CLAMP
90464-20031-00
Unavailable
29
OIL LEVEL GAUGE ASSY
3E1-85720-15-00
Unavailable
30
CONDENSER, SMOOTHING
1NL-81965-01-00
Unavailable
31
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
32
SCREW, PAN
98507-06014-00
Unavailable
33
NUT, FLANGE(4MV)
95707-06500-00
$1.23
34
RECTIFIER & REGULATOR ASSEMBLY
8DF-81960-00-00
Unavailable
35
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
36
NUT, FLANGE(4MV)
95707-06500-00
$1.23
37
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
38
CAP, KEY
526-82579-00-00
Unavailable
39
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
40
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
