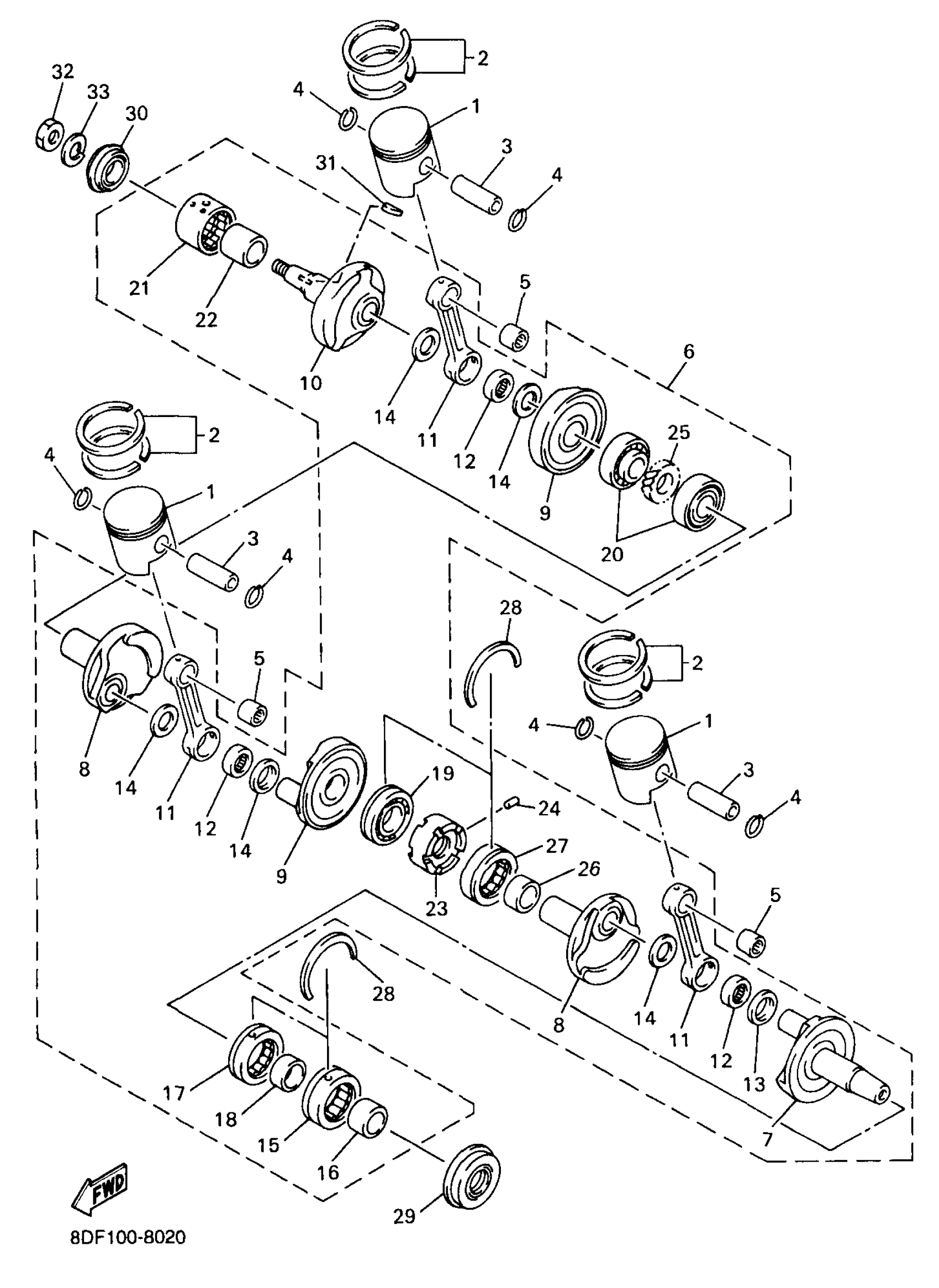

Yamaha SRX600SB (SRX600S (OHLINS FR SHOCKS)) 1998 CRANKSHAFT PISTON Diagram

#

Description
Price

1

PISTON (STD)

8DF-11631-00-A0

Unavailable

2

PISTON RING SET (STD)

8DF-11603-00-00

Unavailable

3

PIN, PISTON

8DF-11633-00-00

$32.99

4

CIRCLIP (8H0)

93450-21053-00

$3.85

5

BEARING

93310-32009-00

$55.99

6

CRANKSHAFT ASSY

8DF-11400-01-00

Unavailable

7

CRANK 1

8DF-11412-01-00

Unavailable

8

. CRANK 2

8DF-11422-00-00

Unavailable

9

CRANK 3

8DF-11432-00-00

Unavailable

10

. CRANK 4

8DF-11442-00-00

Unavailable

11

ROD, CONNECTING

8DF-11651-00-00

Unavailable

12

. BEARING

93310-5270A-00

Unavailable

13

WASHER, CRANK PIN

8CH-11685-00-00

$34.99

14

WASHER, PLATE

90201-277R4-00

Unavailable

15

BEARING ASSY 1

8DF-11415-00-00

Unavailable

16

BEARING ASSY 1

8DF-11415-00-00

Unavailable

17

BEARING ASSY

8DF-11425-00-00

Unavailable

18

BEARING ASSY

8DF-11425-00-00

Unavailable

19

. BEARING

93306-20723-00

Unavailable

20

BEARING

93306-20722-00

Unavailable

21

BEARING

93390-00028-00

Unavailable

22

BEARING

8DF-1142A-01-00

Unavailable

23

SEAL, LABYRINTH 1

8DF-11515-00-00

Unavailable

24

PIN, SPRING (663)

91690-30010-00

Unavailable

25

GEAR, CRANK SHAFT

8DF-11434-00-00

Unavailable

26

BEARING ASSY

8DF-11436-00-00

Unavailable

27

. BEARING

93390-00026-00

Unavailable

28

CIRCLIP (1J7)

93440-72049-00

Unavailable

29

OIL SEAL

93103-34181-00

Unavailable

30

OIL SEAL(82M)

93103-32153-00

Unavailable

31

KEY, WOODRUFF (8R9)

90280-05033-00

Unavailable

32

NUT

90170-16425-00

Unavailable

33

WASHER(6TD)

92907-16600-00

Unavailable
