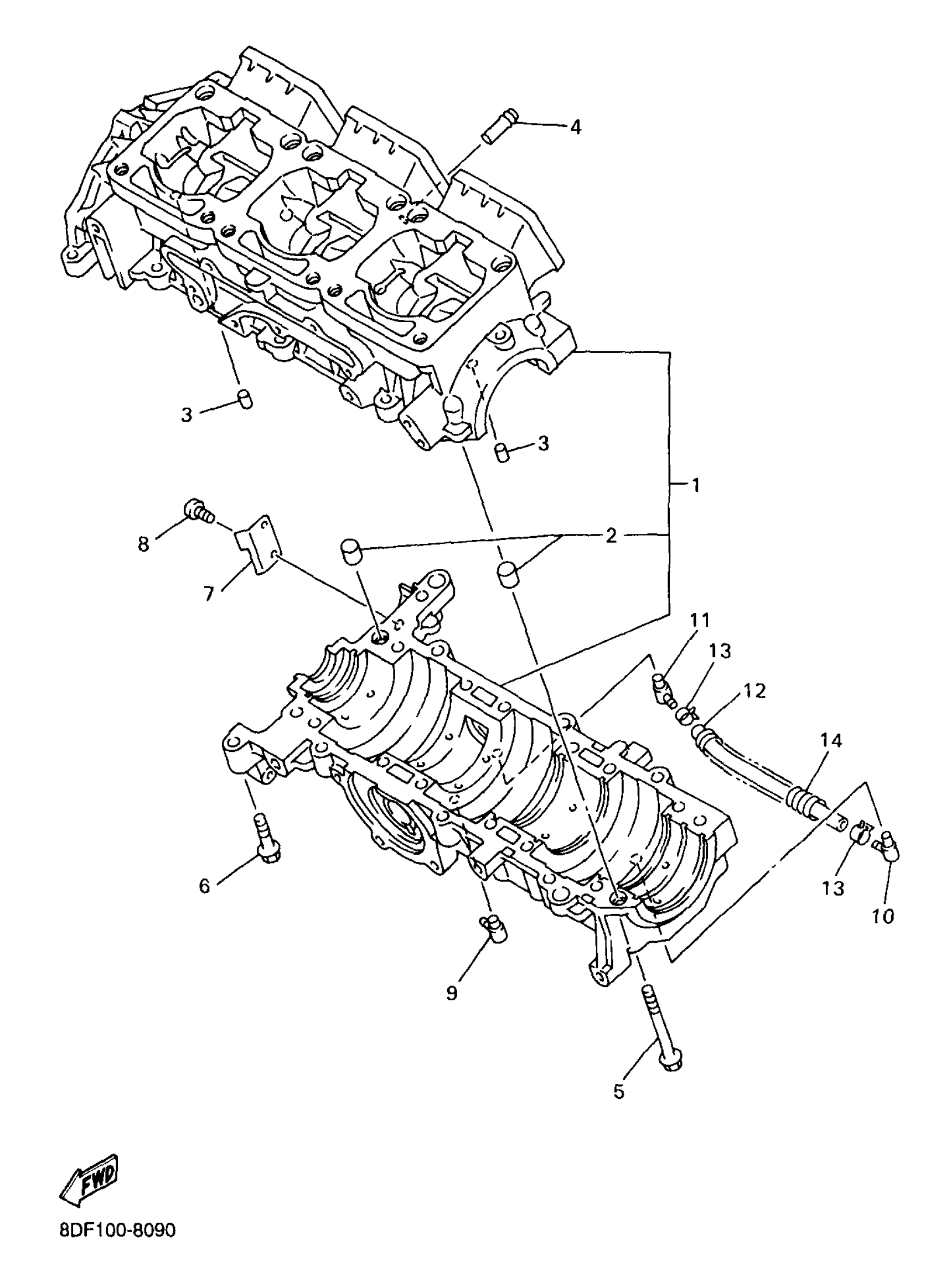

Yamaha SRX600SB (SRX600S (OHLINS FR SHOCKS)) 1998 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8DF-15100-20-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIN, DOWEL (8G8)

93605-10108-00

$8.49

4

JOINT, BREATHER

J38-11116-00-00

$3.80

5

BOLT, FLANGE(JF2)

95817-08080-00

$4.24

6

BOLT, FLANGE

95817-08040-00

$7.49

7

CLAMP

90461-12145-00

Unavailable

8

SCREW, PAN

98517-06012-00

$3.78

9

NOZZLE

353-13552-01-00

$9.99

10

NOZZLE

8DF-13552-00-00

Unavailable

11

NOZZLE

8CH-13552-00-00

Unavailable

12

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

13

CLIP (2A6)

90468-02025-00

$9.49

14

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49
