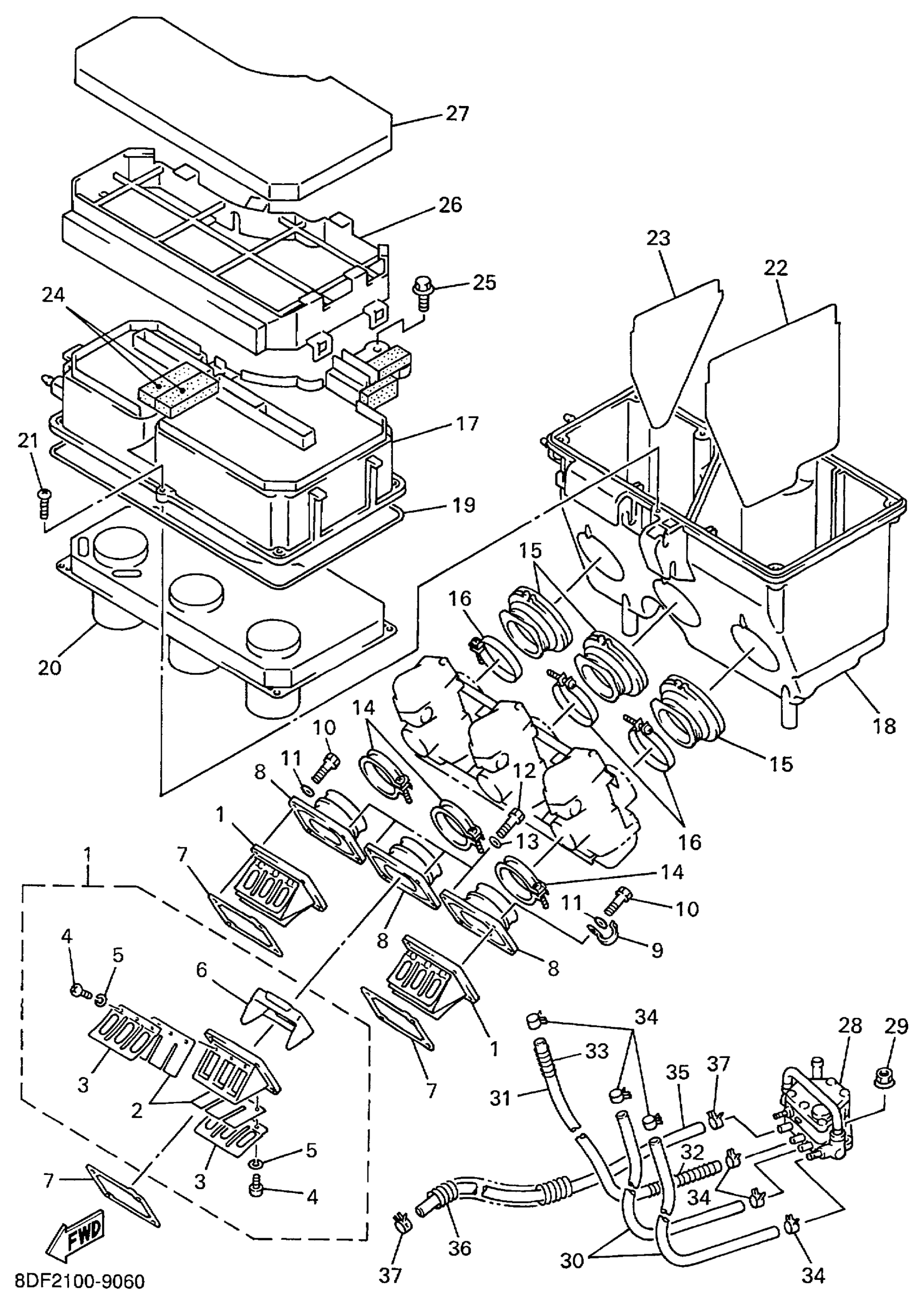

Yamaha SRX600C (SRX600) 8DF2 1999 INTAKE Diagram
#
1
REED VALVE ASSY
8DF-13610-01-00
Unavailable
2
REED, VALVE
2KM-13613-01-00
$18.49
3
. STOPPER, REED VALVE
8DF-13616-00-00
Unavailable
4
SCREW, PAN HEAD(78G)
98580-03006-00
Unavailable
5
WASHER, SPRING
92990-03100-00
$8.49
6
. SPACER, REED VALVE
8DF-13625-00-00
Unavailable
7
GASKET, VALVE SEAT
8DF-13621-00-00
$9.99
8
MANIFOLD, INTAKE
8EK-13555-00-00
Unavailable
9
CLAMP (4G0)
90462-08078-00
$5.60
10
BOLT, HEXAGON
97017-06025-00
$4.24
11
WASHER(6TA)
92907-06600-00
$2.72
12
BOLT, HEXAGON
97017-06025-00
$4.24
13
WASHER(6TA)
92907-06600-00
$2.72
14
BAND
86M-13575-00-00
$19.49
15
JOINT, AIR CLEANER 1
8DF-14453-01-00
$31.99
16
HOSE CLAMP ASSY
90450-53008-00
Unavailable
17
SILENCER, INTAKE 1
8DF-14431-01-00
Unavailable
18
SILENCER, INTAKE 2
8DF-14441-01-00
Unavailable
19
SEAL
51Y-14462-00-00
Unavailable
20
. PLATE
8DF-14477-00-00
Unavailable
21
SCREW, TAPPING(82M)
90167-05043-00
Unavailable
22
. PLATE, SIDE 1
8DF-1445F-00-00
Unavailable
23
. PLATE, SIDE 2
8DF-1445G-00-00
Unavailable
24
DAMPER
8DF-14425-01-00
Unavailable
25
BOLT, WITH WASHER(3FC)
90119-06163-00
Unavailable
26
GUIDE
8DF-14458-00-00
Unavailable
27
ELEMENT, AIR CLEANER
8DF-14451-00-00
Unavailable
28
FUEL PUMP ASSY
8DF-24410-00-00
Unavailable
29
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
30
HOSE (L180)
90445-094K7-00
Unavailable
31
HOSE
8DF-14294-00-00
Unavailable
32
SPRING, COMPRESSION
90501-085L6-00
Unavailable
33
SPRING, COMPRESSION
90501-085L7-00
Unavailable
34
CLIP (8A1)
90467-09026-00
Unavailable
35
HOSE (L400)
90445-116K9-00
Unavailable
36
SPRING, COMPRESSION(3JK)
90501-101J5-00
Unavailable
37
CLIP (7K7)
90467-11044-00
Unavailable
