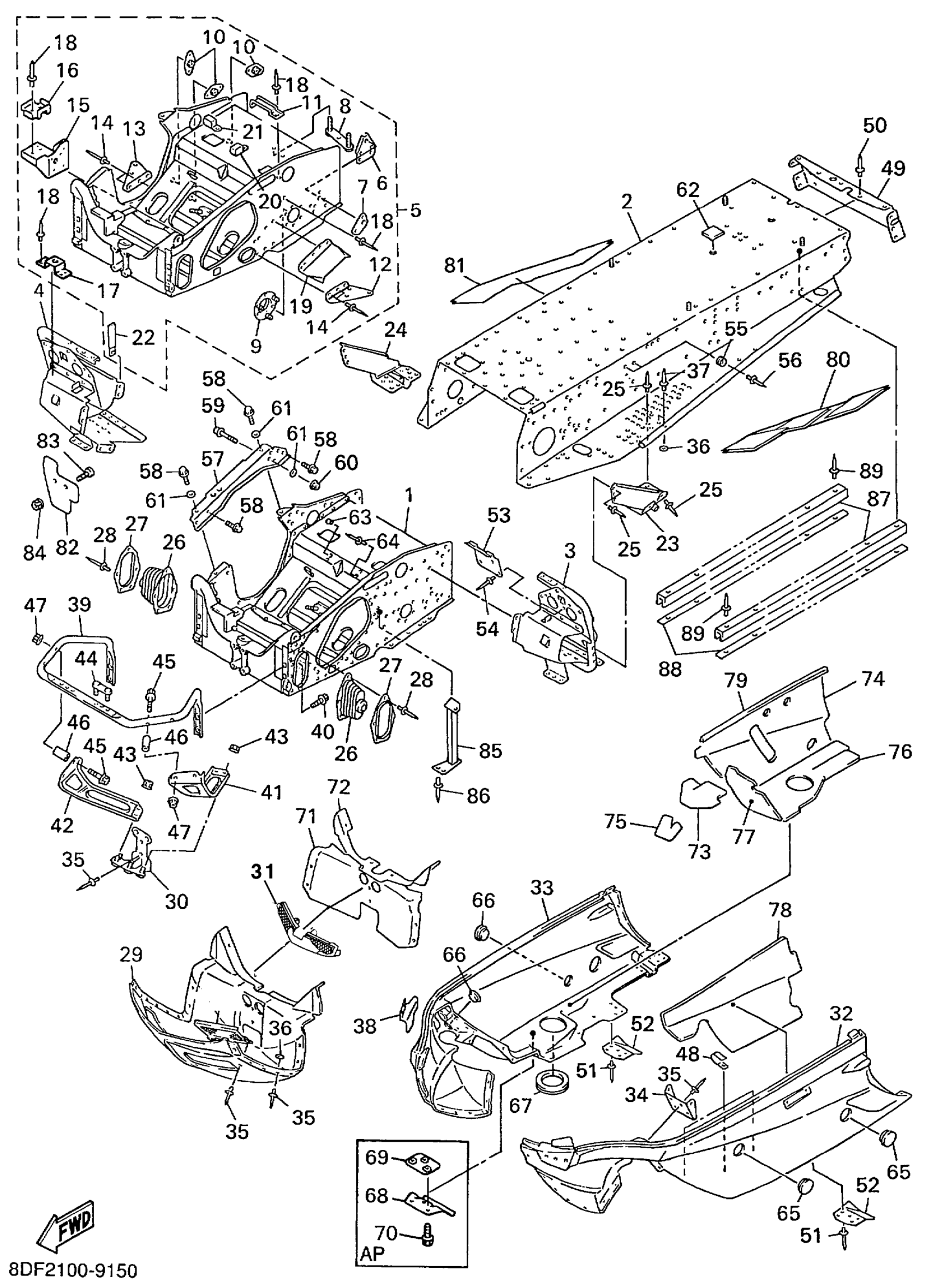

Yamaha SRX600C (SRX600) 8DF2 1999 FRAME Diagram
#
1
FRONT FRAME COMP.
8DF-21940-09-00
Unavailable
2
REAR FRAME COMP.
8DF-21950-07-00
Unavailable
3
FOOTREST COMP. 1
8DF-21960-09-00
Unavailable
4
FOOTREST COMP. 2
8DF-21970-09-00
Unavailable
5
FRAME CONNECTION K
8DF-W2195-01-00
Unavailable
6
BRACKET, MAIN TRACK 1
8CR-21943-01-00
$6.99
7
BRACKET, MAIN TRACK 2
8CR-21953-00-00
$2.24
8
BRACKET 3
8CR-2196F-00-00
Unavailable
9
. HOUSING, REINF SUB-ASSY (LH)
8CR-21920-00-00
Unavailable
10
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
11
CLAMP, FUEL PIPE
8CR-21977-00-00
Unavailable
12
PANEL, SUB FRAME 6
8CR-21917-00-00
Unavailable
13
PANEL, SUB-FRAME 7
8CR-21918-00-00
Unavailable
14
RIVET, BLIND
90267-48016-00
$10.49
15
. STAY, MUFFLER
8DF-2194J-00-00
Unavailable
16
. BRACKET, 6
8DF-2197M-00-00
Unavailable
17
. STAY, MUFFER
8DF-2194L-00-00
Unavailable
18
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
19
COVER 2
8CR-2198G-00-00
Unavailable
20
CLAMP(83R)
90461-08113-00
Unavailable
21
CLAMP(8CR)
90461-06142-00
Unavailable
22
CLAMP
90462-10236-00
Unavailable
23
PIPE, PIVOT 1
8DF-21941-00-00
Unavailable
24
PIPE, PIVOT 2
8DF-21951-00-00
Unavailable
25
RIVET
90269-07080-00
Unavailable
26
COVER 1
8CR-2198F-00-00
Unavailable
27
PLATE, STRG BRACKET 1
8CR-2195E-00-00
Unavailable
28
RIVET, BLIND
90267-47197-00
Unavailable
29
PANEL, SUB FRAME 1
8CR-21912-11-00
Unavailable
30
PLATE, BACK UP
8CR-23788-11-00
Unavailable
31
STAY 4
8CR-77128-00-00
Unavailable
32
FRAME, UNDER 1
8DF-2196A-11-00
Unavailable
33
FRAME, UNDER 2
8DF-2196E-11-00
Unavailable
34
BRACKET, GUARD FITTING
8CR-21972-00-00
Unavailable
35
RIVET, BLIND
90267-48018-00
Unavailable
36
WASHER PLATE 829771780000
90201-05033-00
Unavailable
37
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
38
BRACKET, COOLER 1
8DF-2194V-02-00
Unavailable
39
BUMPER, FRONT 2
8CR-77512-00-00
Unavailable
40
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
41
BRACKET, FRONT
8CR-21949-10-00
Unavailable
42
BRACKET, FRONT BUMPER
8CR-21959-10-00
Unavailable
43
NUT, SELF-LOCKING
90185-08169-00
Unavailable
44
BRACKET, 5
8CR-2196M-00-00
Unavailable
45
BOLT, FLANGE
95817-08040-00
Unavailable
46
COLLAR(8CR)
90387-0810F-00
Unavailable
47
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
48
CLAMP(4MX)
90465-06376-00
Unavailable
49
REINEFORCEMENT, FRAME REAR 1
8CR-21923-02-00
Unavailable
50
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
51
RIVET, BLIND
90267-48018-00
Unavailable
52
PROTECTOR, FRAME
8CH-21978-00-00
Unavailable
53
HOOK
8CR-21973-00-00
Unavailable
54
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
55
BUTT0N
81K-2471F-00-00
Unavailable
56
RIVET, BLIND(81K)
90267-40135-00
Unavailable
57
REINEFORCEMENT, FRAME REAR 1
8CR-21921-01-00
Unavailable
58
BOLT, FLANGE
95817-10020-00
Unavailable
59
BOLT,FLANGE
95817-10065-00
Unavailable
60
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
61
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
62
COVER 3
8DP-2198J-00-00
Unavailable
63
PLUG (17J)
90338-10132-00
Unavailable
64
RIVET, BLIND
90267-48177-00
Unavailable
65
PLUG
90338-44270-00
Unavailable
66
PLUG
90338-30268-00
Unavailable
67
SPACER
8DF-21998-10-00
Unavailable
68
PROTECTOR, FRAME 3
8DP-2197C-00-00
Unavailable
69
PATCH 10
8DP-21997-00-00
Unavailable
70
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
71
LINING, SHROUD 2
8CR-77262-00-00
Unavailable
72
LINING, SHROUD 3
8CR-77263-00-00
Unavailable
73
LINING, SHROUD 5
8DF-77265-00-00
Unavailable
74
LINING, SHROUD 7
8DF-77267-00-00
Unavailable
75
LINING,SHROUD 8
8DF-77268-00-00
Unavailable
76
LINING,SHROUD 9
8DF-77269-00-00
Unavailable
77
LINING, SHROUD 4
8DF-77264-00-00
Unavailable
78
DAMPER, NOISE 11
8DF-77271-00-00
Unavailable
79
TAPE, 5
8DF-7717J-00-00
Unavailable
80
EMBLEM 1
8EA-77351-00-00
Unavailable
81
EMBLEM 2
8EA-77352-00-00
Unavailable
82
COVER, TOE HOOK
8DF-2196N-00-00
Unavailable
83
SCREW, BINDING
98907-06012-00
Unavailable
84
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
85
PROTECTOR, FRAME
8EA-2197E-00-00
Unavailable
86
RIVET, BLIND
90267-48016-00
$10.49
87
FULLGTH TUNL PRCT
SMA-8CV92-90-00
Unavailable
88
BRACKET, GUARD FITTING
8DF-21972-00-00
Unavailable
89
RIVET, BLIND
90267-47197-00
Unavailable
