- SRX600C (SRX600) 8DF2 1999
CYLINDER HEAD

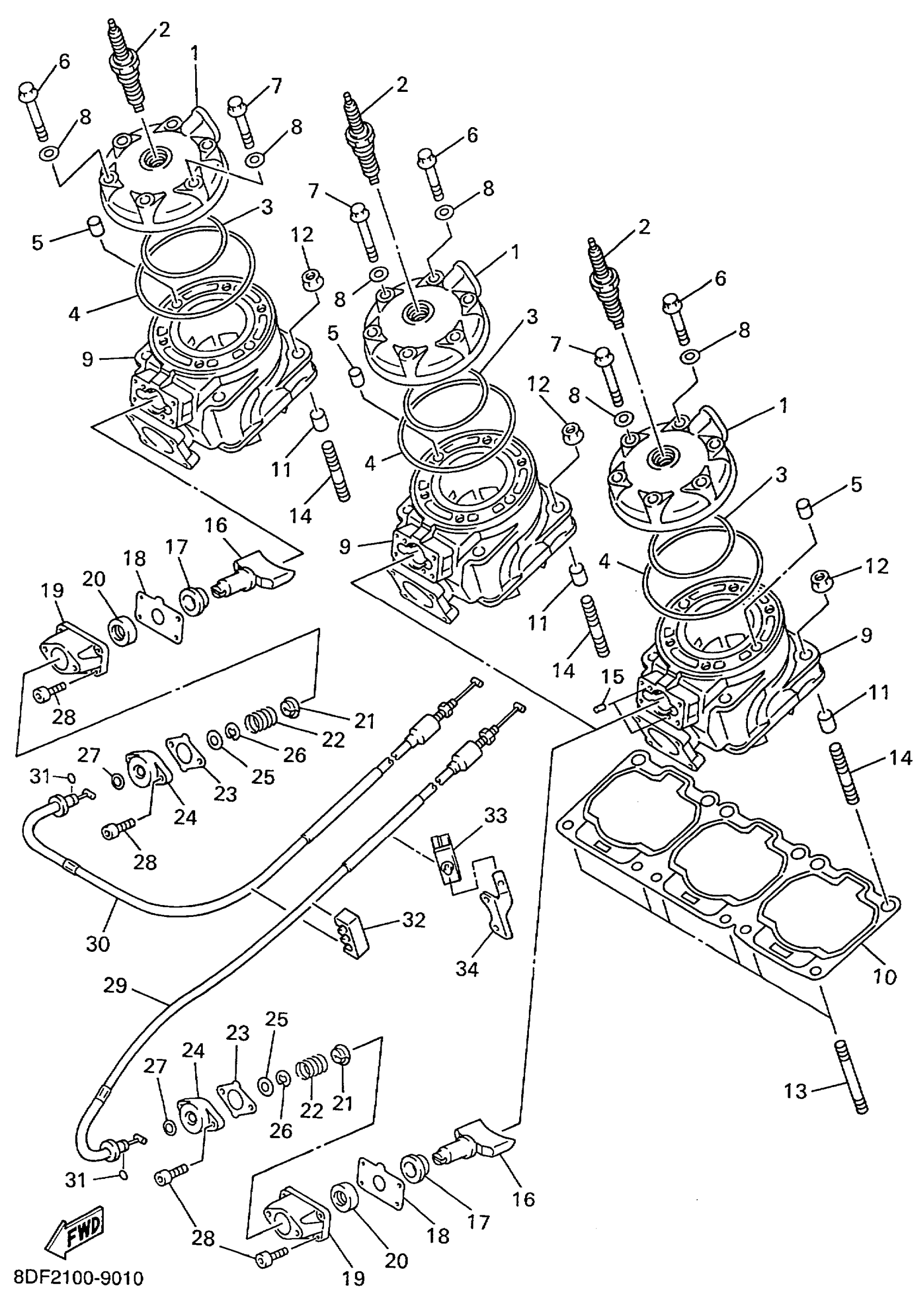

Yamaha SRX600C (SRX600) 8DF2 1999 CYLINDER HEAD Diagram
#
1
HEAD, CYLINDER 1
8DF-11111-00-00
Unavailable
2
BR9ECS NGK SPLUG 10PK
BR9-ECS0P-C0-00
Unavailable
3
SEAL, CYLINDER 1
8DF-11355-00-00
$14.49
4
SEAL, CYLINDER 2
8DF-11356-00-00
$15.49
5
PIN, DOWEL(3VD)
99530-10114-00
$2.55
6
BOLT, FLANGE
95817-08055-00
$4.21
7
BOLT, WASHER BASED
90105-084A1-00
$10.49
8
WASHER, PLATE
90201-080L8-00
$4.41
9
CYLINDER 1
8DF-11311-01-00
Unavailable
10
GASKET, CYLINDER
8DF-11351-00-00
$82.99
11
PIN, DOWEL
99530-14016-00
$3.80
12
NUT, FLANGE(8AB)
95707-10500-00
$3.18
13
BOLT, STUD (26H)
90116-10411-00
$13.49
14
BOLT, STUD(1JK)
90116-10506-00
$4.77
15
PIN, DOWEL (278)
93604-08071-00
$8.49
16
VALVE 1
8DF-1131A-00-00
Unavailable
17
HOLDER 1
8DF-1131E-00-00
Unavailable
18
GASKET
8DF-11354-03-00
Unavailable
19
HOLDER 2
8DF-1131F-01-00
Unavailable
20
OIL SEAL
93109-15074-00
Unavailable
21
SEAT, SPRING
8DF-11317-01-00
Unavailable
22
SPRING, COMPRESSION
90501-120L7-00
Unavailable
23
GASKET
8DF-11397-10-00
Unavailable
24
HOLDER 3
8DF-1131U-01-00
Unavailable
25
WASHER, PLATE
90201-092U3-00
Unavailable
26
CIRCLIP(53L)
99001-06600-00
Unavailable
27
O-RING (1J7)
93210-09350-00
Unavailable
28
BOLT, SOCKET
91317-05016-00
Unavailable
29
CABLE, PULLEY 1
8DF-1133E-10-00
Unavailable
30
CABLE, PULLEY 2
8DF-1133F-10-00
Unavailable
31
O-RING (26H)
93210-06632-00
Unavailable
32
CLAMP
90464-06253-00
Unavailable
33
CLAMP
90464-07262-00
Unavailable
34
BRACKET
8DF-1135A-00-00
Unavailable
