TRACK DRIVE 2

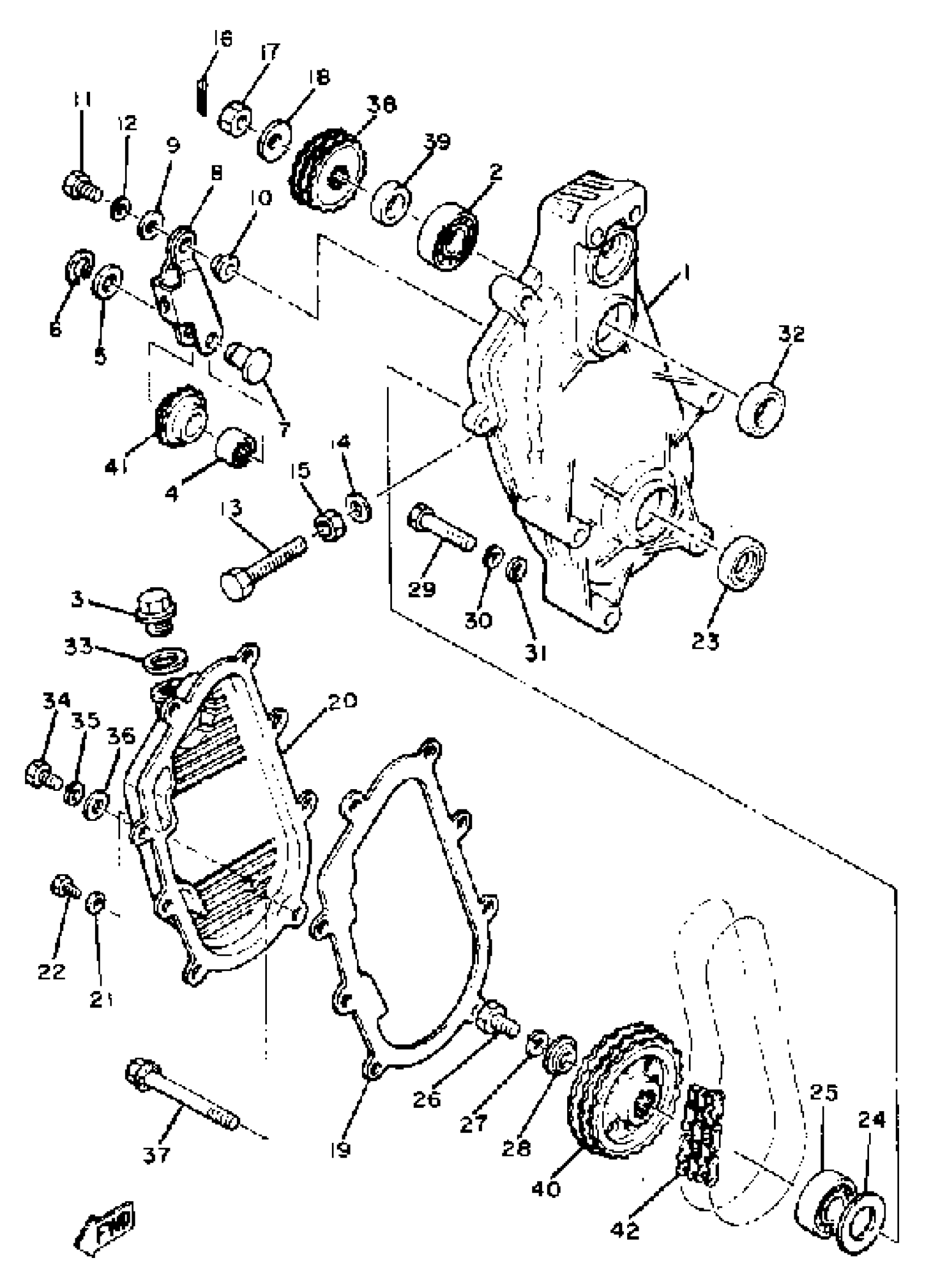

Yamaha SRX440E 1981 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN (8L9-47541-00-00)
99999-02203-00
Unavailable
2
BEARING (80N)
93306-20570-00
Unavailable
3
PLUG, STRAIGT SCREW (2A2)
90340-22047-00
Unavailable
4
BRG,CYL-CAL ROLLER 11G KY
93315-21227-00
$45.99
5
WASHER, PLATE (583)
90201-12631-00
$9.49
6
CIRCLIP(10Y)
99009-12400-00
$3.59
7
PIN, SPECL SHAPE
90249-12135-00
Unavailable
8
HOLDER
8K4-47613-00-00
Unavailable
9
WASHER, PLAIN
92990-08200-00
Unavailable
10
COLLAR (8K4)
90387-08301-00
Unavailable
11
BOLT (682)
97013-08025-00
$8.49
12
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
13
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
14
WASHER SEAL 256111730200
90210-10004-00
$4.77
15
NUT (682)
95380-10700-00
Unavailable
16
PIN, COTTER
91490-30030-00
Unavailable
17
NUT, HEXAGON (8F3)
90170-20211-00
Unavailable
18
WASHER (853)
90208-20008-00
Unavailable
19
GASKET
86M-47592-01-00
Unavailable
20
CAP, HOUSING
8L9-47543-00-00
Unavailable
21
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
22
BOLT(3JP)
97017-06010-00
Unavailable
23
OIL SEAL, SD-TYPE
93102-34230-00
Unavailable
24
WASHER, PLATE
(90201-405A5-00)
Unavailable
25
BEARING(55X)
93306-07801-00
Unavailable
26
BOLT (661)
97013-06012-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
WASHER, SPEC''L SHAP
90209-06137-00
Unavailable
29
BOLT
97021-08065-00
Unavailable
30
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
31
.. WASHER, PLATE
92990-08600-00
Unavailable
32
OIL SEAL (8K4)
93102-27204-00
Unavailable
33
GASKET (1L9)
90430-22144-00
Unavailable
34
BOLT, HEXAGON
97017-06030-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
37
BOLT, FLANGE
95817-08090-00
Unavailable
38
SPRKT, CHAIN DR 20T (20T)
829-17682-00-00
Unavailable
38
SPRKT, CHAIN DR 15T (878-17682-50) (15T)
829-17682-50-00
Unavailable
38
SPRKT, CHAIN DR 16T (16T)
829-17682-60-00
Unavailable
38
SPRKT, CHAIN DR 17T (17T)
829-17682-70-00
Unavailable
38
SPRKT, CHAIN DR 18T (18T)
829-17682-80-00
Unavailable
38
SPRKT, CHAIN DR 19T (878-17682-90) (19T)
829-17682-90-00
Unavailable
38
SPROCKET, CHAIN DR (878-17693-10) (21T)
8U9-17693-10-00
Unavailable
38
SPROCKET, CHAIN DR (878-17693-20) (22T)
8U9-17693-20-00
Unavailable
39
COLLAR
90387-25798-00
Unavailable
40
SPROCKET, CHN DRVN
(8M6-47548-90-00)
Unavailable
40
SPROCKET, CHN DRVN
(8M6-47587-10-00)
Unavailable
40
SPROCKET, CHN DRVN
(8M6-47587-20-00)
Unavailable
40
SPROCKET, CHN DRVN
(8M6-47587-30-00)
Unavailable
41
WHEEL
8L0-47612-00-00
Unavailable
42
CHAIN 66 (RS35V-3 66L)
94850-35066-00
Unavailable
42
CHAIN 68 (RS35V-368L)
94850-35068-00
Unavailable
42
CHAIN 70 (RS35V-3 70L)
94850-35070-00
Unavailable
42
CHAIN 8H8
94890-03064-00
Unavailable
