Description

Price

1

AXLE, FRONT

(8M6-W4751-00-00)

Unavailable

2

WHEEL, SPROCKET 1

8M6-47531-00-00

Unavailable

3

WHEEL, GUIDE 1

(8M6-47534-00-00)

Unavailable

4

COLLAR

(8M6-47526-00-00)

Unavailable

5

BOLT, SET (8K2)

90113-06039-00

$9.49

6

BAND (MADE IN CANADA)

90460-50079-00

Unavailable

7

COLLAR

90387-280E1-00

Unavailable

8

COLLAR

90387-227A9-00

Unavailable

9

HOUSING, FRONT AXLE

8K4-47551-00-00

$31.99

10

BEARING 60/22

93306-00420-00

$40.99

11

BOLT, HEXAGON

97017-08016-00

$8.49

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

WASHER 810475810000

90208-22001-00

$8.49

14

NUT (821-47579-00)

90170-22094-00

$5.60

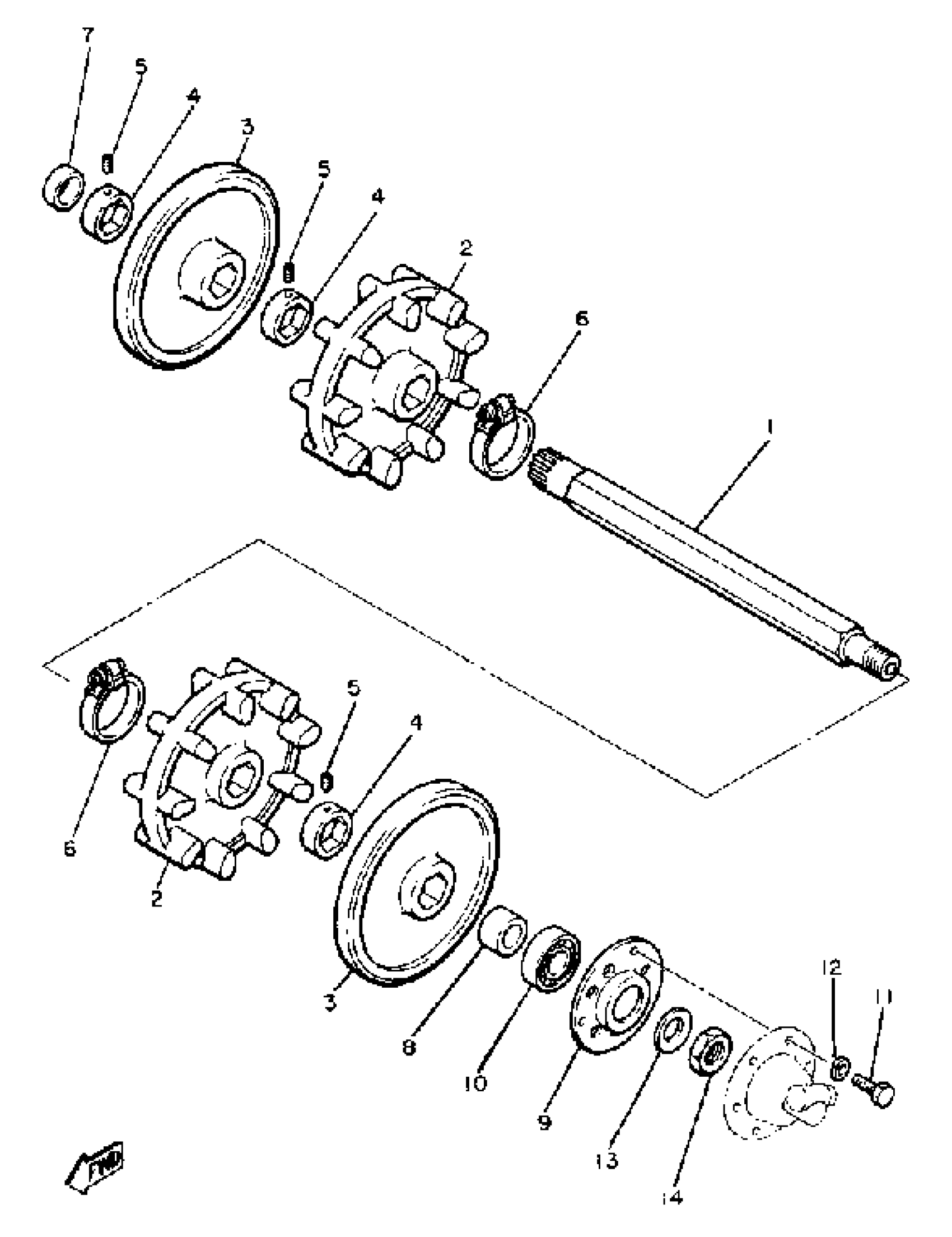

Yamaha SRX440E 1981 TRACK DRIVE Diagram

AXLE, FRONT

WHEEL, SPROCKET 1

WHEEL, GUIDE 1

COLLAR

BOLT, SET (8K2)

BAND (MADE IN CANADA)

COLLAR

COLLAR

HOUSING, FRONT AXLE

BEARING 60/22

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

WASHER 810475810000

NUT (821-47579-00)
