STEERING GATE

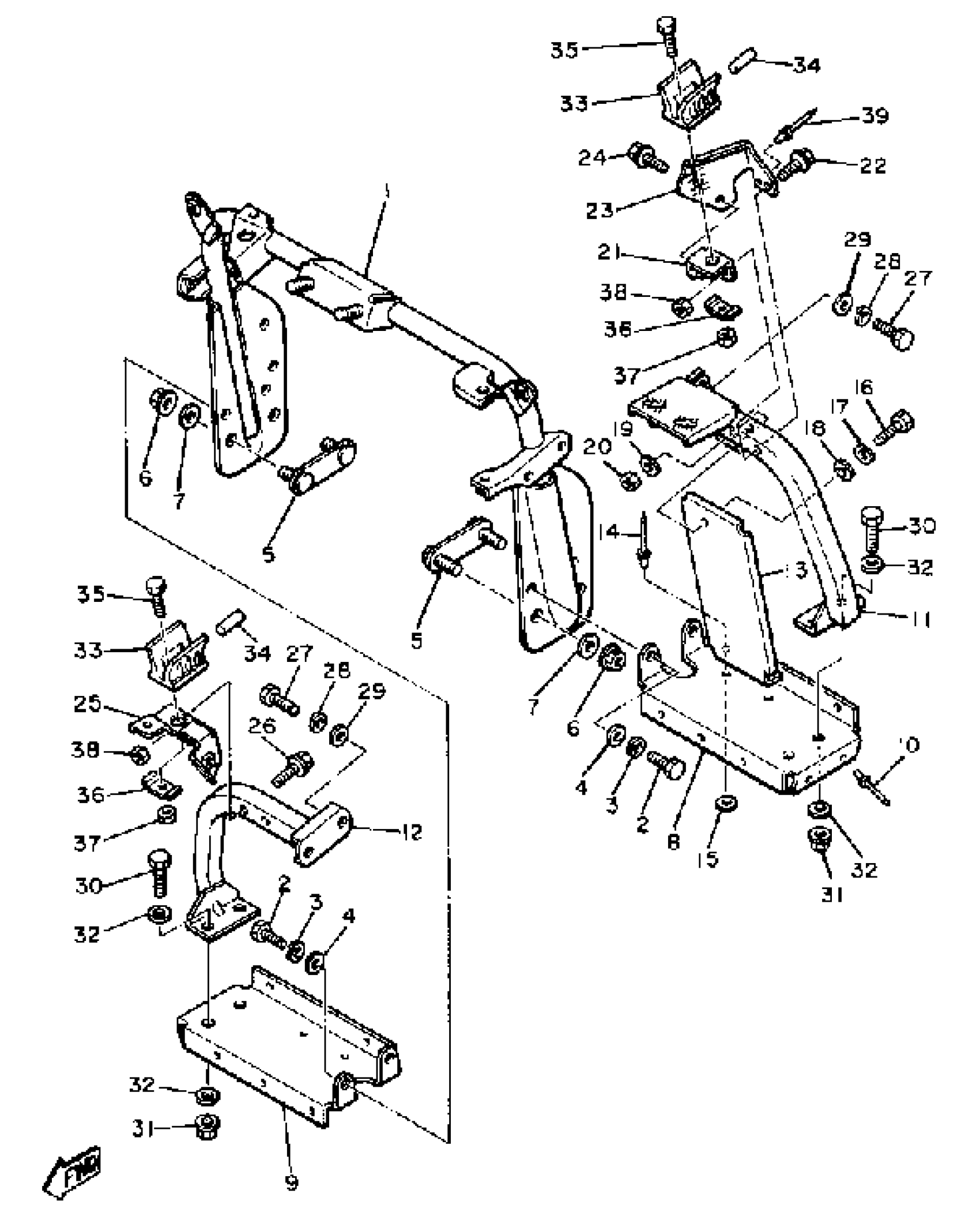

Yamaha SRX440E 1981 STEERING GATE Diagram
#
1
STEERING GATE
8M6-23870-00-00
Unavailable
2
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
3
WASHER, SPRING
92995-06100-00
Unavailable
4
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
5
BRACKET 10
8M6-23878-00-00
Unavailable
6
NUT, NYLON
95717-08300-00
$2.70
7
WASHER, PLAIN
92990-08200-00
Unavailable
8
BRACKET 3
8M6-23883-00-00
Unavailable
9
BRACKET 4
8M6-23884-00-00
Unavailable
10
RIVET, BLIND (8H4)
90267-48053-00
$3.61
11
BRACKET 5
(8M6-23885-01-00)
Unavailable
12
BRACKET 6
8M6-23886-00-00
Unavailable
13
BRACKET 1
8M6-23881-00-00
Unavailable
14
RIVET, BLIND (8K2)
90267-48079-00
$3.50
15
WASHER, PLATE
90201-04027-00
$3.02
16
BOLT(3DM)
97024-06020-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
19
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
20
NUT, HEXAGON
95380-06600-00
Unavailable
21
BRACKET 7
8M6-23887-00-00
Unavailable
22
BOLT, FLANGE
95817-06030-00
Unavailable
23
BRACKET 8 (8M6-23888-00)
8M6-23888-01-00
Unavailable
24
BOLT, FLANGE
95812-06010-00
Unavailable
25
BRACKET 9
8M6-23889-01-00
Unavailable
26
BOLT, FLANGE
95817-06030-00
Unavailable
27
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
28
WASHER, SPRING
92995-06100-00
Unavailable
29
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
30
BOLT(3DM)
97024-06020-00
Unavailable
31
NUT, NYLON
95707-06300-00
Unavailable
32
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
33
CLAMP 3
878-77137-01-00
Unavailable
34
STOPPER
878-77188-00-00
Unavailable
35
BOLT,HEXAGON
97017-06008-00
Unavailable
36
STAY 1
8M6-77125-00-00
Unavailable
37
NUT, SELF-LOCKING
95617-06100-00
Unavailable
38
NUT, SELF-LOCKING
95617-06100-00
Unavailable
39
RIVET, BLIND (8K2)
90267-48079-00
$3.50
