1981 Yamaha SRX440E SKI Diagram

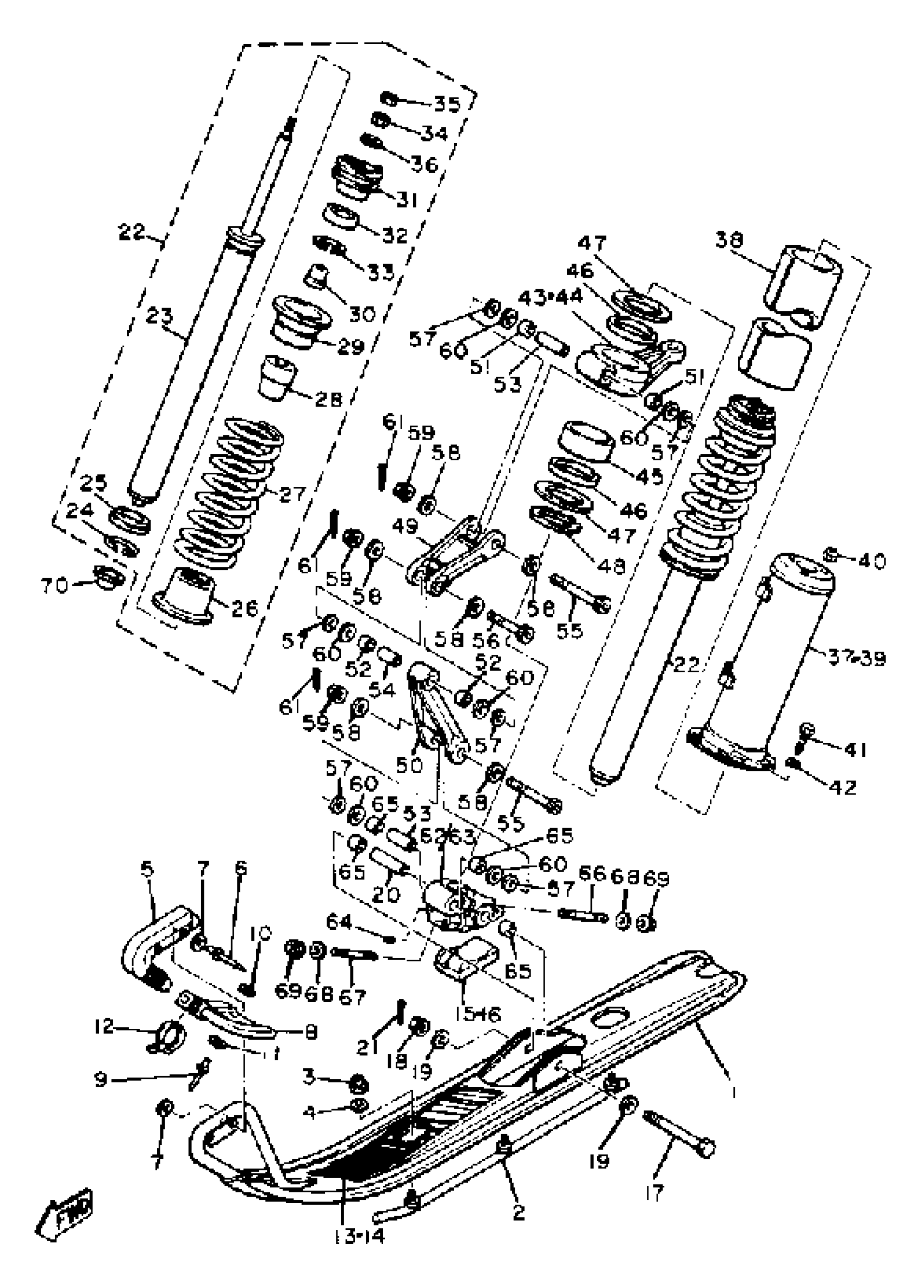

Find the part on the SKI diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SKI 1 (8M6-23710-00)
8M6-23710-01-00
2
SKI RUNNER,1
VMX-23731-01-XX
5
PROTECTOR, SKI
8M6-23747-00-00
8
PROTECTOR, SKI 2
8M6-23748-00-00
11
WASHER, PLATE (8M6)
90201-047A2-00
12
BAND
1UA-82591-00-00
13
EMBLEM 10
(8M6-77365-00-00)
14
EMBLEM 11
(8M6-77366-00-00)
15
STOPPER 1
8L0-23743-01-00
16
STOPPER 2
8L0-23744-01-00
17
BOLT, WITH HOLE
90102-10040-00
19
WASHER(6TA)
92907-10600-00
22
ABSORBER ASSEMBLY 1
8L9-2376A-00-00
23
. DAMPER SUB-ASSEMBLY
8L9-22401-00-00
24
. CIRCLIP, OUTER
93440-36087-00
25
SEAT, SPRING 1
(8L9-23768-00-00)
26
. SEAT, SPRING 2
8L9-23777-00-00
28
. BUMP, STOP
8L0-22493-00-00
29
PLATE, BACK UP
8AB-23788-00-00
30
. COLLAR
90387-100A5-00
31
. HOLDER, BEARING
8L0-2376H-00-00
34
. NUT
90170-08220-00
37
HOLDER, ABSORBER (8M6-2376J-00)
8M6-2376J-01-00
39
HOLDER, ABSORBER 2
8M6-2377J-00-00
43
ARM, OUTSIDE 1
(8M6-23851-00-00)
44
ARM, OUTSIDE 2
(8M6-23852-00-00)
49
ARM, FRONT 1
8M6-2382E-00-00
50
ARM, FRONT 2
8M6-2382F-00-00
55
BOLT,HEX SKT HEAD
90110-10141-00
56
BOLT,HEX SKT HEAD
90110-10174-00
57
WASHER, PLATE (8M6)
90201-105A8-00
60
WASHER PLATE 626441260000
90202-14037-00
62
BRACKET, 1 (L.H)
8L9-2376E-00-00
63
BRACKET 2 (R.H)
8L9-2377E-00-00
66
BOLT, STUD
90116-08323-00
70
CAP 1
8L0-23741-00-00
